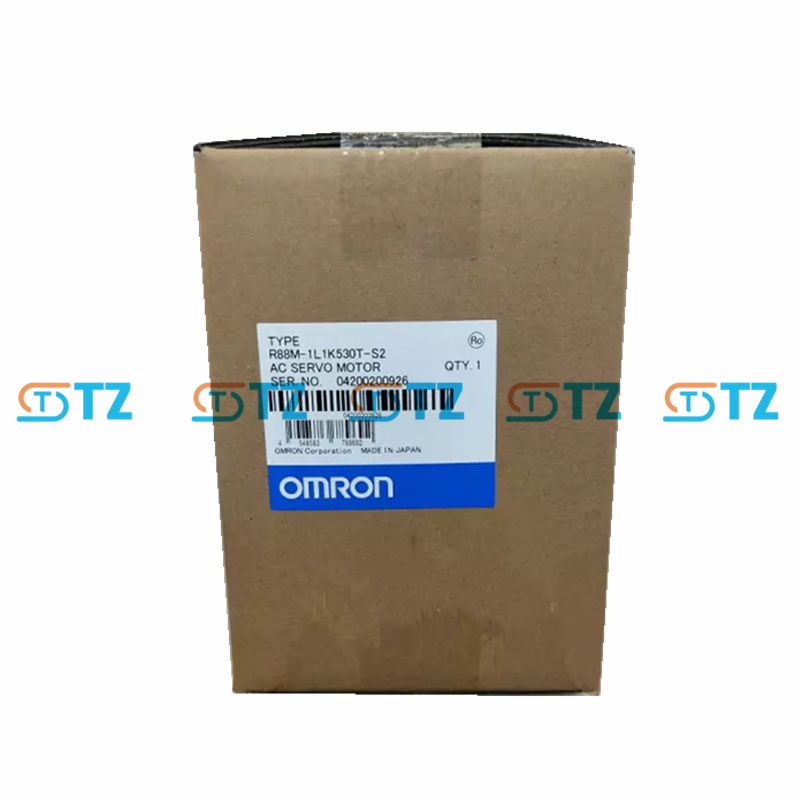

OMRON R88M-1L1K530T LOW-INERTIA AC SERVO DRIVE 1S SERIES

Product parameters

Model: R88M-1L1K530T

Rated power: 1.5kW

Rated voltage: 230 VAC

Rated speed: 3000 rpm

Rated torque: 4.77 Nm

Peak torque at time: 14.3 Nm

Rated current: 8.8A

Instantaneous maximum current: 28.3A

Encoder type: 23-bit absolute encoder (16-bit multi-turn, 65,536 turns)

Protection grade: IP67 (except for shaft openings)

Insulation class: B

Certifications: UL, CSA, CE

Shaft type: Straight shaft with keys and taps (-S2 model).

Function

High-precision positioning: Equipped with a 23-bit absolute encoder (65,536 turns for multi-turn counting, no battery backup required), it provides high-resolution feedback to ensure precise control.

EtherCAT communication: Supports high-speed EtherCAT network, suitable for multi-axis synchronization and real-time control.

Low inertia design: Optimized for rapid acceleration and deceleration, suitable for high dynamic response scenarios.

Diversified configuration: Offers options such as with or without brakes, oil seals, keyways, etc., to meet different installation requirements.

Safety function: It can be paired with drives that support STO, SS1, and SLS security functions (such as R88D-1SN15H-ECT-51). Comply with EN ISO 13849-1 (Cat.3 PLd), EN61508 (SIL2), EN62061 (SIL2), and EN61800-5-2 (STO).

Efficient heat dissipation: Self-cooling design, supporting long-term high-load operation.

Fast debugging: Supports Sysmac Studio integrated debugging and multi-axis tuning to shorten the installation time.

Application scenarios

Industrial robots: Mechanical arm joint drive, requiring high precision and dynamic response.

CNC machine tools: Provide precise motion control and are suitable for processing such as milling and turning.

Packaging machinery: Used in high-speed packaging lines, such as sealing, labeling, and sorting equipment.

Printing equipment: Ensure high-speed and precise motion control during the printing process.

Semiconductor manufacturing: Applied in high-precision equipment such as wafer handling and surface mount technology (SMT) machines.

Automated production lines: such as conveyor belts and assembly lines, require multi-axis synchronous control.

Advantage Products:

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Many Available just wait for you, feel free to ask to get better deal!!!
