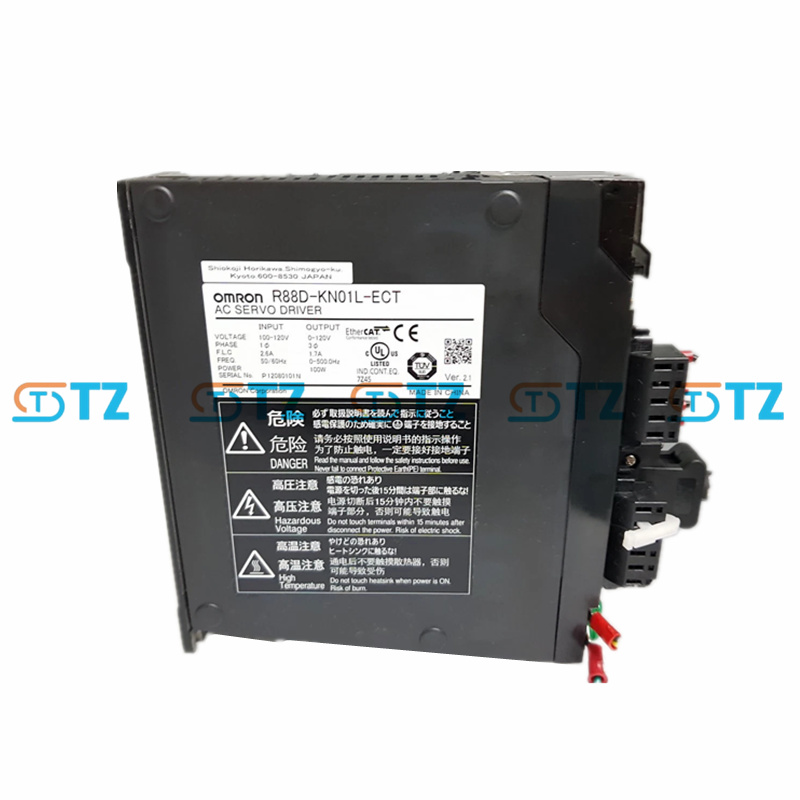

OMRON R88D-KN01L-ECT SERVO DRIVER G5 SERIES

Technical parameters

Model: R88D-KN01L-ECT

Power input: Single-phase 100 VAC

Frequency: 50/60 Hz

Output power: 100 W

Output current: 1.7A (rated), with an instantaneous maximum current of approximately 3.8A

Power supply capacity: approximately 0.4 KVA

Control mode: IGBT-driven PWM method, all-digital servo

Command interface: EtherCAT communication

Compatible motors: R88M-K05030H (50 W), R88M-K10030L (100 W), and other 3000 rpm servo motors

Encoder support: incremental or absolute encoders

Operating temperature: 0 to 55 °C

Protection grade: IP20

Safety features: Built-in Safe Torque Off (STO), compliant with EN ISO 13849-1 (Cat.3 PLd), EN 61508 (SIL2), EN 62061 (SIL2), EN 61800-5-2 (STO)

Certifications: UL, CSA, CE, RoHS

Installation method: Supports DIN rail or panel installation, suitable for compact control cabinets.

Features: The G5 series is compactly designed, optimizes the space utilization of the control panel, and its size does not change due to oil seal or brake options.

Function

EtherCAT communication: Built-in EtherCAT interface, directly connected to the NJ5 series controller, supporting high-speed and high-precision motion control. It is recommended to use unit version 2.1 or higher.

High-precision positioning: Supports full closed-loop control, combined with 20-bit incremental or 17-bit absolute encoders, to achieve high-precision positioning.

Safety function: Built-in Safe Torque Off (STO), implemented via EtherCAT (FSoE) or safety input signals, conforming to international safety standards and simplifying the design of the safety system.

Vibration suppression: In low-rigidity mechanical systems, it can effectively suppress the vibration during acceleration/deceleration, enhancing operational stability.

Easy to debug: Supports Sysmac Studio and CX-Drive software, integrates fault diagnosis function, simplifies setup and maintenance.

Dynamic braking: Supports dynamic braking for emergency stop, but it should be noted that frequent use under high load inertia may cause the braking resistor to burn out. It is recommended that the ON/OFF interval of the servo be at least 10 minutes.

Compatibility: When used in conjunction with R88M-K series servo motors and R88G-VRXF series reducers (such as R88G-VRXF15B100CJ), it offers flexible system configurations.

Application scenarios

High-end automated equipment, such as semiconductor manufacturing equipment and CNC machine tools, requires high-precision positioning and EtherCAT network integration.

Packaging machinery: used for packaging machines and labeling machines, providing rapid response and high-precision movement.

Material handling: Applied to conveyor belts and automated sorting systems, supporting complex motion trajectories.

Robot technology: Suitable for collaborative robots or small mechanical arms, providing high torque and precise control.

Laboratory automation: Used for precise positioning tables or experimental equipment to meet high-precision requirements.

Combined with the reducer: It can be matched with the R88G-VRXF15B100CJ reducer and a 100W motor, and is suitable for low-speed and high-torque scenarios.
