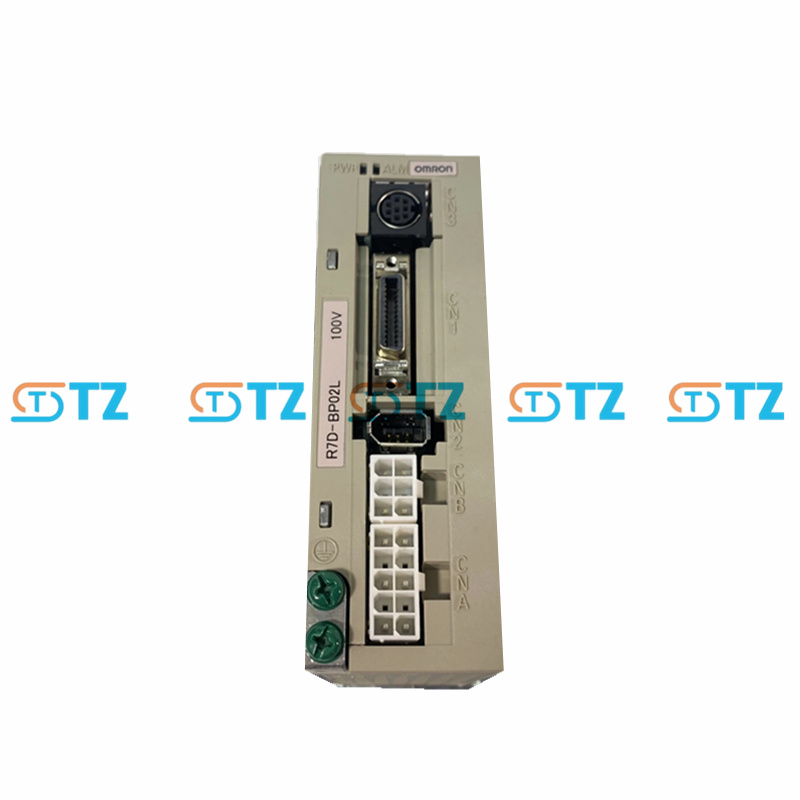

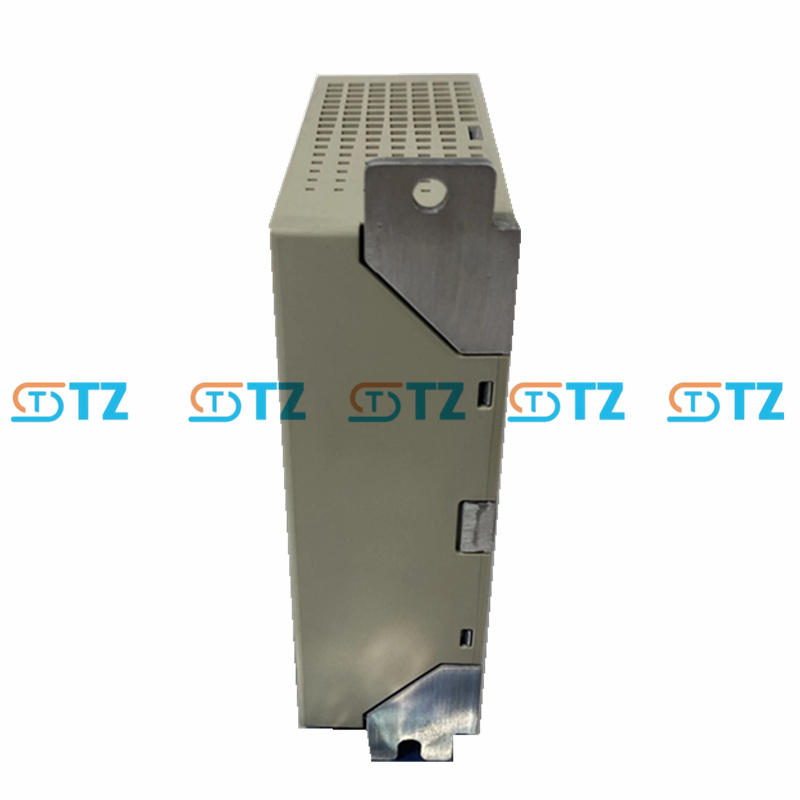

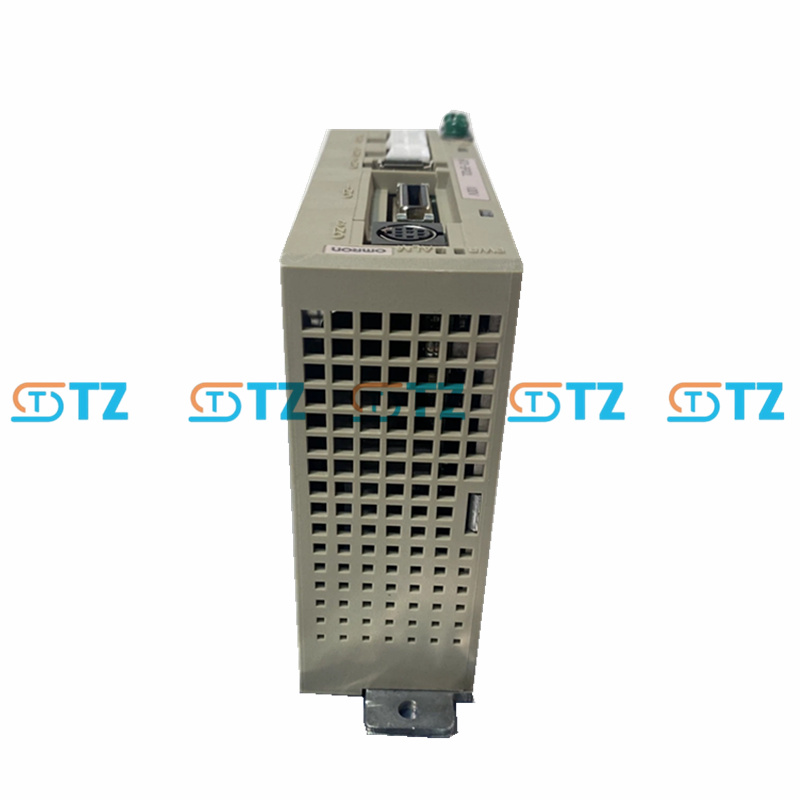

OMRON R7D-BP02L AC SERVO DRIVER SMARTSTEP 2 SERIES

Technical parameters

Model: R7D-BP02L

Power input: Single-phase 100 VAC (Allowable voltage fluctuation range: 85% to 110%)

Frequency: 50/60 Hz

Output power: 200 W

Output current: 2.5A

Instantaneous maximum current: 7.5A

Power supply capacity: 0.42 KVA

Input current: 3.7A

Calorific value: 22 W

Control mode: IGBT-driven PWM method, all-digital servo

Command interface: Pulse input control

Compatible motors: R88M-G20030L servo motor

ECCN: EAR99

Customs Code :USHTS: 8504404000

CAHTS: 8504404000

TARIC: 8504409590

Function

High-precision control: Supports pulse input control, suitable for high-response position control, providing smooth and precise motion control.

Compact design: Miniaturized structure, suitable for application scenarios with limited space.

Easy to set up: The SmartStep 2 series is renowned for its simplified configuration and debugging, making it suitable for rapid deployment.

All-digital servo: It adopts IGBT-driven PWM control technology to ensure efficient and stable performance.

Strong compatibility: Specifically designed for the OMRON R88M-G20030L servo motor, it ensures high reliability of system integration.

Protection functions: Equipped with overload, overvoltage, overheating and other protection mechanisms to enhance the safety of the equipment.

Application scenarios

Small mechanical equipment: such as packaging machines, printing machines, textile machinery, etc., require precise control of position and speed.

Material handling: Used in conveyor belts, automated sorting systems, etc., to meet the demands of high-response movements.

Electronic manufacturing: Applied to equipment such as surface mount technology (SMT) machines and dispensing machines that require high-precision positioning.

Robot technology: Servo control for small robots or mechanical arms, providing stable power output.

Laboratory automation: Suitable for scenarios in experimental equipment that require precise motion control.
