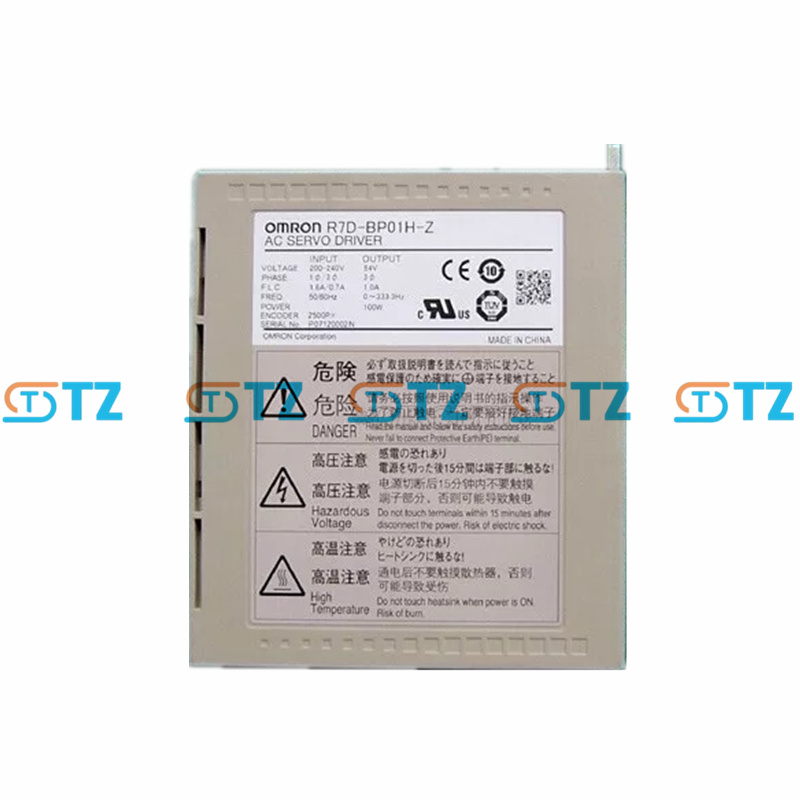

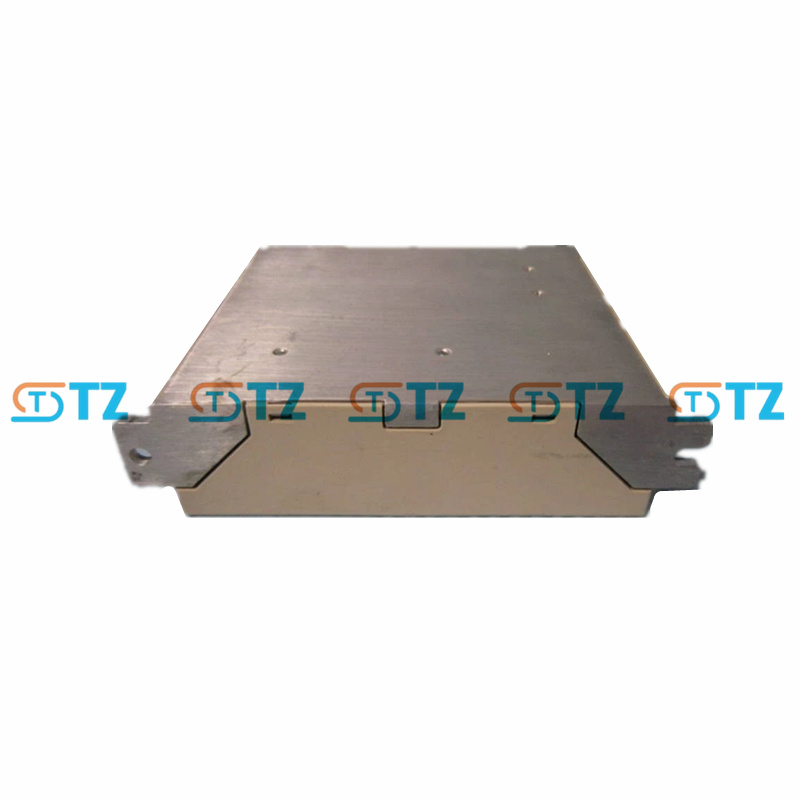

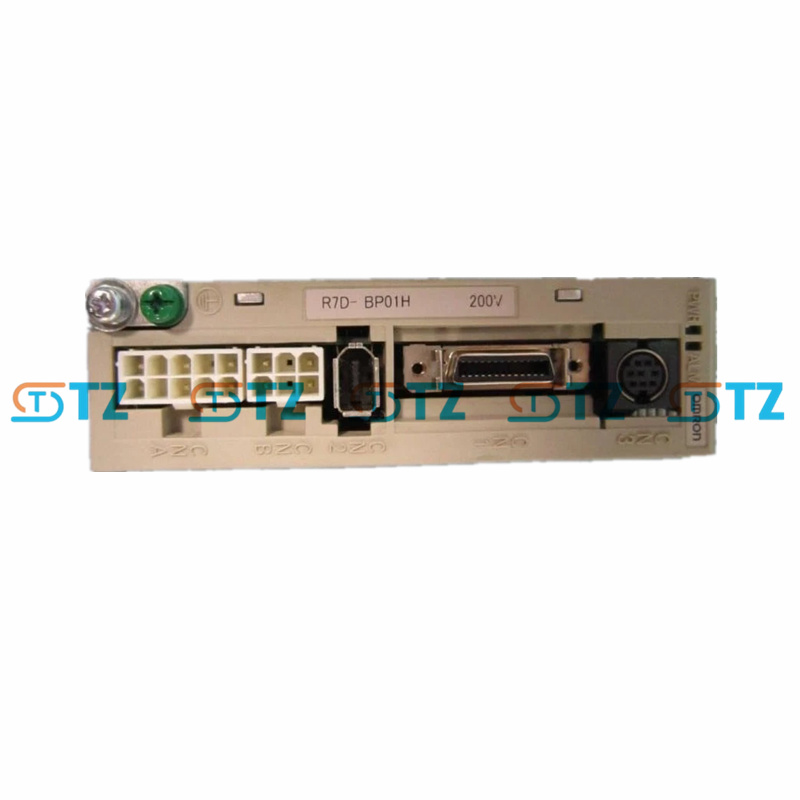

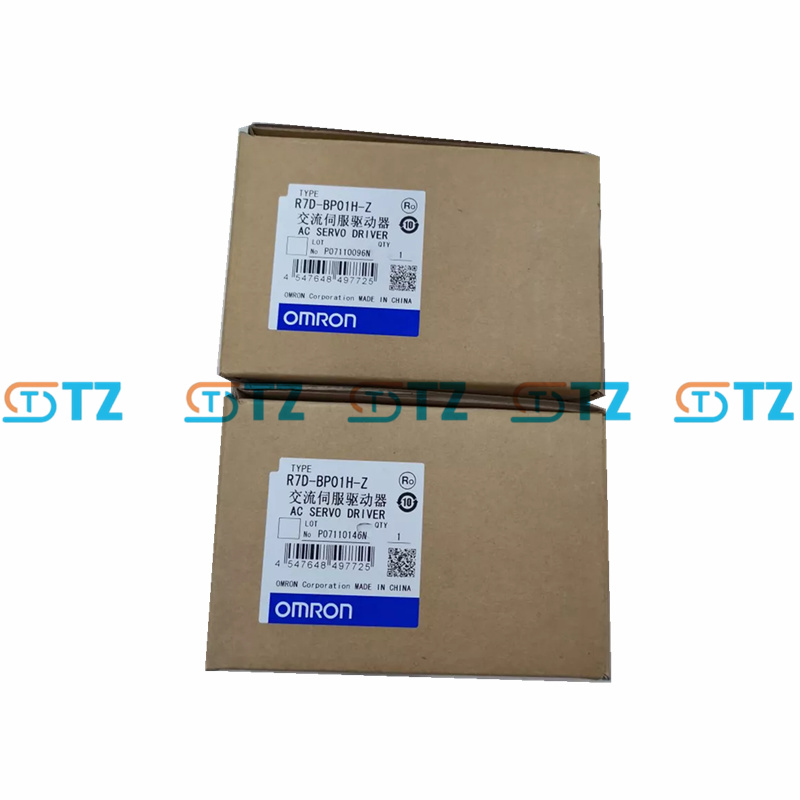

OMRON R7D-BP01H AC SERVO DRIVER SMARTSTEP 2 SERIES

Product parameters

Model: R7D-BP01H

Rated power: 100 W

Power supply voltage: Single-phase 200-240 VAC, 50/60 Hz

Rated input current: 1.6A

Continuous output current (rms): 1.0A

Control mode: Pulse train input (position control)

Control method: PWM based on IGBT, all-digital servo

Command pulse frequency: Up to 500 kpps

Protection grade: IP10

Standard compliance: EN55011 Class A, EN61000-6-2, IEC61000-4-2/-3/-4/-5/-6/-11, EN50178, UL 508C, CSA C22.2 No.14

Environmental conditions: Operating temperature: 0 to 55°C

Storage temperature: -20 to 70°C

Humidity: 20% to 90% (No condensation)

Installation method: DIN rail mounting or screw fixation

Function

Position control: High-precision position control is achieved through pulse train input, supporting command pulse frequencies up to 500 kpps.

Online automatic tuning: Real-time calculation of device load, automatic setting of optimal gain, and simplification of the debugging process.

Vibration suppression: Automatically measure vibration frequency and suppress the vibration of low-rigidity machinery (such as conveyor belts) in real time.

Dual torque limit: Supports two sets of torque limits, which can be switched according to the application (such as press-fitting or part insertion).

Feedback pulse monitoring: Through the feedback pulses sent by the servo driver, the host can monitor the current position and detect equipment errors.

Ultra-compact design: The floor space is reduced by 52%, with a height of only 120mm. It can share installation pipelines with CP1/CP2 PLCS, saving control cabinet space.

DIN rail installation: Supports single-step DIN rail installation (additional accessories required), facilitating assembly and maintenance.

Parameter replication: Multiple servo drivers can be quickly set up using the parameter unit (R88A-PR02G), which is suitable for mass production.

Application scenarios

Small-scale industrial automation: used for small packaging machines, labeling machines, conveyor belts, etc., it requires high-precision position control.

Electronic manufacturing: Suitable for precise positioning of semiconductor manufacturing equipment or electronic components.

Textile equipment: Used for feeding and winding control in textile machinery.

Lightweight robots: Suitable for motion control of small robot arms or automated assembly lines.

Other compact devices: Suitable for scenarios with limited space and the need for high-performance servo drives, such as small printing presses or automated production lines.
