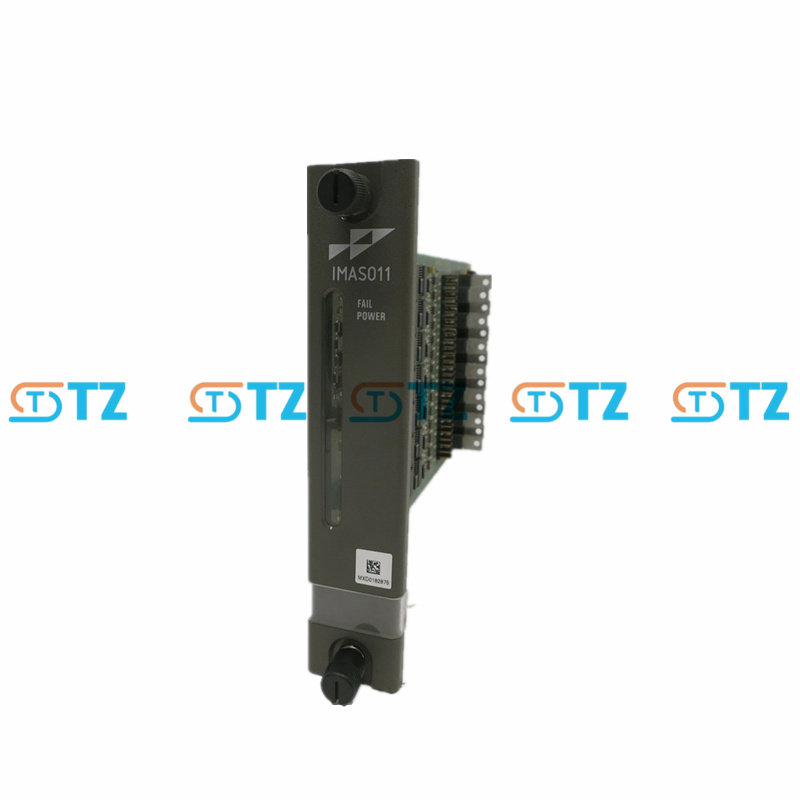

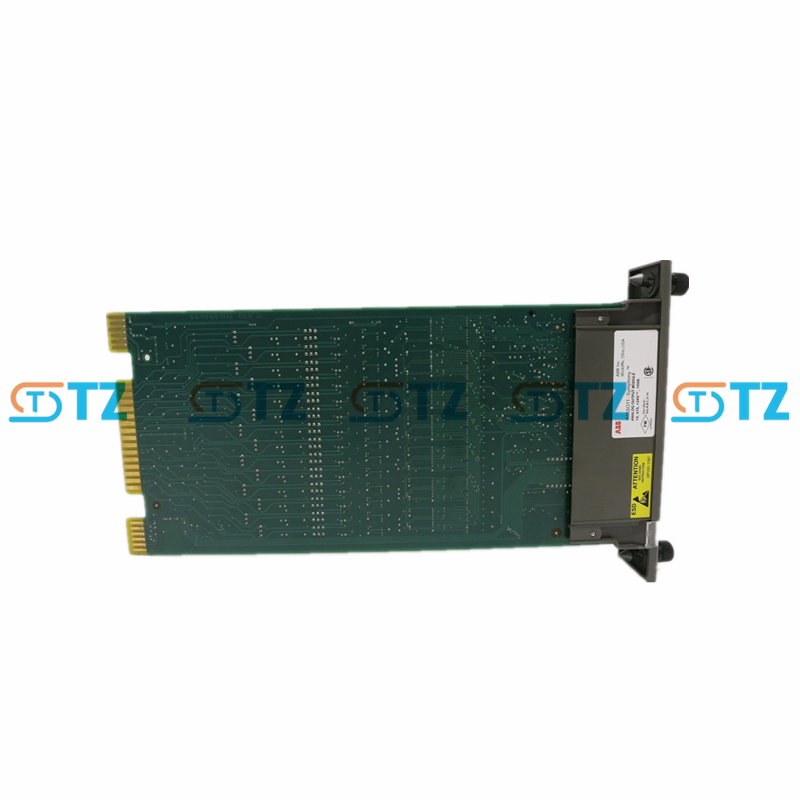

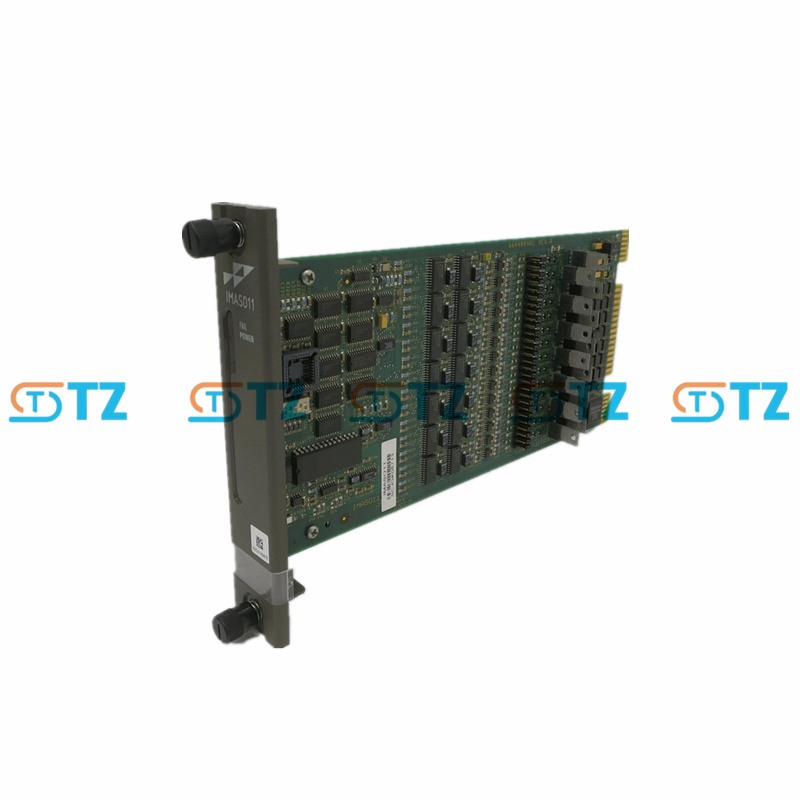

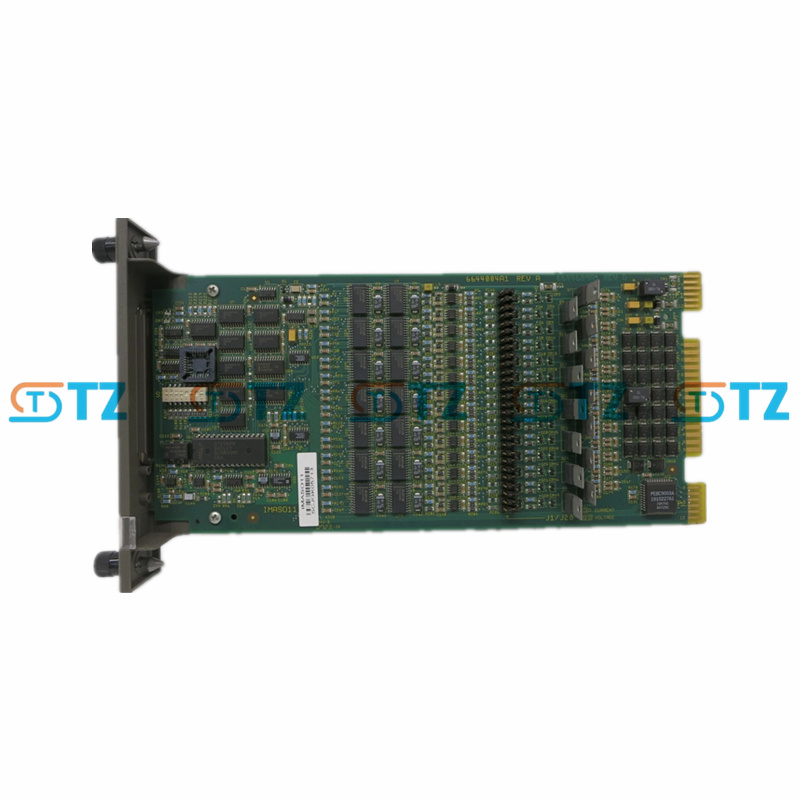

IMASO11 ABB ANALOG OUTPUT SLAVE MODULE

Product parameters

Module type: Analog Output Slave Module

Output channels :14 analog outputs (4-20 mA or 0-10 V)

System compatibility :ABB Infi 90 DCS

Power supply: Compatible with 24Vdc (system standard)

Signal processing: Analog signal conversion, isolation protection

Operating temperature :-20°C to 70°C (typical)

Storage temperature :-40°C to 85°C

Humidity :5% to 95% (non-condensing)

Certification options: Standard industrial certifications (CE, UL)

Communication interface: Inter-module bus (Infi 90 standard)

Replacement compatibility: IMASO01 can be replaced

Function

Analog output processing: Output 14 analog signals to field devices, supporting the range of 4-20mA or 0-10V, to achieve precise process control.

Control execution: Collaborate with control modules (such as MFP or MFC) to convert system commands into on-site analog outputs, ensuring real-time response.

Modular integration: As a slave module of the Infi 90 system, it supports a master-slave architecture to ensure system redundancy and scalability.

Signal isolation: It provides output isolation protection to prevent noise interference and fault propagation, and enhance system reliability.

Diagnostic support: Built-in status indication and fault detection facilitate system maintenance and troubleshooting.

Compatible expansion: Seamlessly integrated with the ABB Infi 90 framework, supporting software configuration and remote monitoring.

Application scenarios

Process control system: It is used for DCS integration in chemical engineering, oil and gas, and power plants, achieving analog signal output to control valves, actuators and other equipment.

Industrial automation optimization: In manufacturing and water treatment, it supports analog output conversion to enhance system reliability and response speed.

Data execution and monitoring: Integrated into the SCADA system for process variable control and historical data recording.

High-reliability environment: Suitable for heavy industrial and energy equipment, scenarios requiring modular output expansion, such as oil refineries and offshore platforms, but not for high-speed vibration or dedicated mechanical protection applications.
