# Danfoss VLT® AutomationDrive FC 302 Quick Reference Guide

## 1. Product Identification & Primary Uses

The **FC 302** is a premium, high-performance variable frequency drive (VFD) designed for advanced industrial applications requiring high torque control, precise speed accuracy, and synchronous operation.

### Primary Applications

* **High-Torque Machinery:** Cranes, hoists, winches, and elevators (features built-in mechanical brake control).

* **Precision Handling:** Conveyors, positioning systems, and packaging lines.

* **Heavy-Duty Process Automation:** Extruders, mixers, centrifuges, and winders.

* **Safety-Critical Environments:** Standardly equipped with **Safe Torque Off (STO)** (SIL 2 / PL d, upgradable to SIL 3 / PL e).

### Key Differentiation from FC 301

While both belong to the FC 300 series, the **FC 302** is the heavy-duty model featuring Flux Vector Control (with encoder feedback option), permanent magnet motor capability, integrated STO safety functionality, and expanded input/output expansion capabilities.

---

## 2. Core Control Terminal Layout

The FC 302 features a highly configurable, removable terminal block grouped into safety, digital, and analog arrays:

* **Terminal 37:** **Safe Torque Off (STO)** Input. Must be supplied with +24V DC to allow the drive to run.

* **Terminal 12 & 13:** +24V DC voltage supply for digital inputs.

* **Terminal 18:** Digital Input (Default: `[8]` Start).

* **Terminal 19:** Digital Input (Default: `[10]` Reversing).

* **Terminal 27:** Digital Input (Default: `[2]` Coast Inverse / External Reset).

* **Terminal 29:** Digital Input or Output (Default: `[14]` Jog).

* **Terminal 32 & 33:** Digital Inputs (Configurable for high-speed pulse inputs/encoder tracks).

* **Terminal 50:** +10V DC potentiometer supply.

* **Terminal 53:** Analog Input 1 (Voltage 0 ~ 10V or Current 0/4 ~ 20mA configured via switch A53).

* **Terminal 54:** Analog Input 2 (Voltage 0 ~ 10V or Current 0/4 ~ 20mA configured via switch A54).

* **Terminal 68 (+) & 69 (-):** RS-485 serial communication (FC Protocol / Modbus RTU).

---

## 3. Essential Commissioning Parameters

Before starting the motor, input the nameplate data and run the Automatic Motor Adaptation (AMA):

| Parameter | Parameter Name | Typical Configuration / Usage |

| :---: | :--- | :--- |

| **0-01** | Language | Select preferred display language |

| **1-00** | Configuration Mode | `[0]` Speed Open Loop (Standard) or `[1]` Speed Closed Loop (Encoder) |

| **1-10** | Motor Construction | `[0]` Asynchronous (Induction) or `[1]` PM (Permanent Magnet Motor) |

| **1-20** | Motor Power | Input rated power from nameplate ($kW$ or $hp$) |

| **1-22** | Motor Voltage | Input rated voltage (e.g., $400\text{ V}$) |

| **1-23** | Motor Frequency | Input rated frequency ($50\text{ Hz}$ / $60\text{ Hz}$) |

| **1-24** | Motor Current | Input exact rated current ($A$) |

| **1-25** | Motor Nominal Speed | Input base RPM from nameplate |

| **1-29** | Automatic Motor Adaptation | Set to `[1]` Enable Complete AMA, then press **Hand On** to tune |

| **3-41** | Ramp 1 Ramp Up Time | Time to accelerate from 0 RPM to base speed (seconds) |

| **3-42** | Ramp 1 Ramp Down Time| Time to decelerate from base speed to 0 RPM (seconds) |

| **5-10** | Terminal 18 Digital Input| Set to `[8]` Start |

---

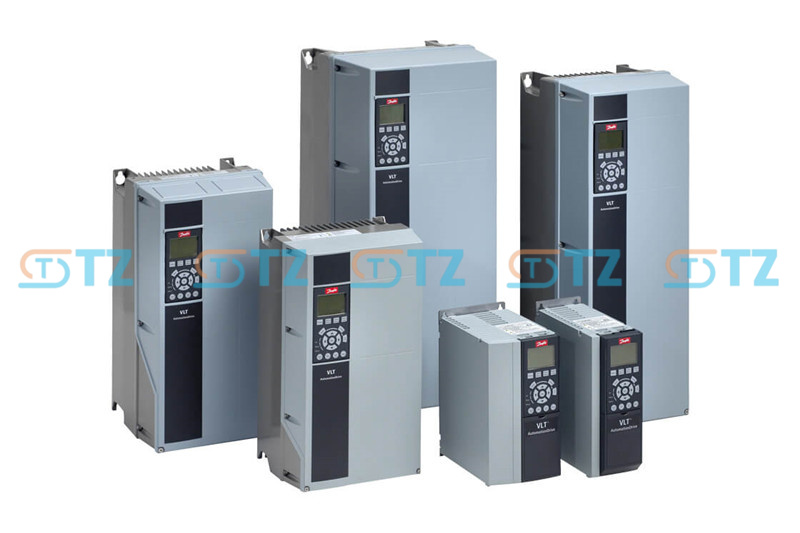

## 4. Physical Dimensions & Weights (Frame Sizes A to F)

The FC 302 spans from compact wall-mounted enclosures (**A** frames) up to massive floor-standing cabinets (**F** frames). Below are the dimensions for standard IP20 / IP21 (NEMA 1) rated configurations up to $75\text{ kW}$.

### Enclosure Reference Table ($0.25\text{--}75\text{ kW}$)

| Frame Size | Power Range (approx. @ 400V) | Height (H) | Width (W) | Depth (D) | Max Weight |

| :---: | :--- | :---: | :---: | :---: | :---: |

| **A1** | $0.25\text{ -- }1.5\text{ kW}$ (IP20) | 200 mm | 75 mm | 205 mm | 2.7 kg |

| **A2** | $0.25\text{ -- }4.0\text{ kW}$ (IP20/21) | 268 mm | 90 mm | 205 mm | 4.9 kg |

| **A3** | $5.5\text{ -- }7.5\text{ kW}$ (IP20/21) | 268 mm | 130 mm | 205 mm | 6.6 kg |

| **A5** | $0.25\text{ -- }7.5\text{ kW}$ (IP55/66) | 420 mm | 242 mm | 200 mm | 14.2 kg |

| **B1** | $11\text{ -- }18.5\text{ kW}$ (IP21/55) | 480 mm | 242 mm | 260 mm | 23.0 kg |

| **B2** | $22\text{ -- }30\text{ kW}$ (IP21/55) | 650 mm | 242 mm | 260 mm | 27.0 kg |

| **B3** | $11\text{ -- }18.5\text{ kW}$ (IP20) | 399 mm | 165 mm | 249 mm | 12.0 kg |

| **B4** | $22\text{ -- }30\text{ kW}$ (IP20) | 520 mm | 230 mm | 242 mm | 23.5 kg |

| **C1** | $37\text{ -- }55\text{ kW}$ (IP21/55) | 684 mm | 308 mm | 310 mm | 45.0 kg |

| **C2** | $75\text{ kW}$ (IP21/55) | 770 mm | 370 mm | 330 mm | 65.0 kg |

| **C3** | $37\text{ -- }55\text{ kW}$ (IP20) | 550 mm | 308 mm | 333 mm | 35.0 kg |

| **C4** | $75\text{ kW}$ (IP20) | 660 mm | 370 mm | 333 mm | 50.0 kg |

*Note: Dimensions correspond to standard bookstyle modules. Higher power ratings ($90\text{ kW}$ to $1\text{ MW}$) utilize larger **D, E, and F** enclosures.*

### Mounting Clearance Rules

* **Side-by-Side:** Frame sizes **A, B, and C** can be mounted flush side-by-side with zero space required between them.

* **Top/Bottom Air Ventilation:** * Frames **A1, A2, A3, B3, B4, C3, C4**: Requires minimum **100 mm** clearance above and below.

  * Frames **B1, B2, C1, C2**: Requires minimum **200 mm** clearance above and below.
