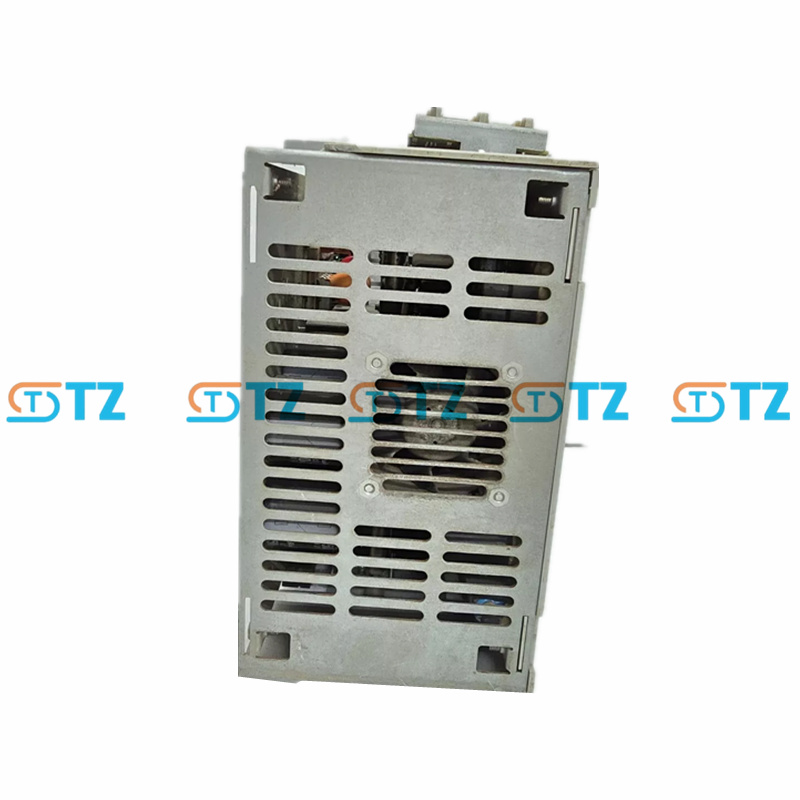

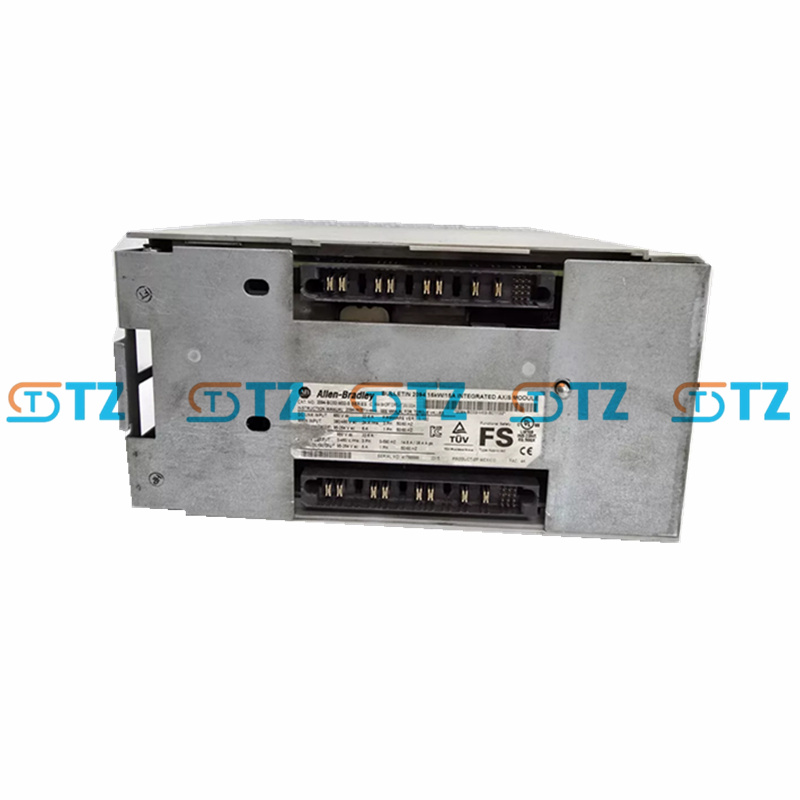

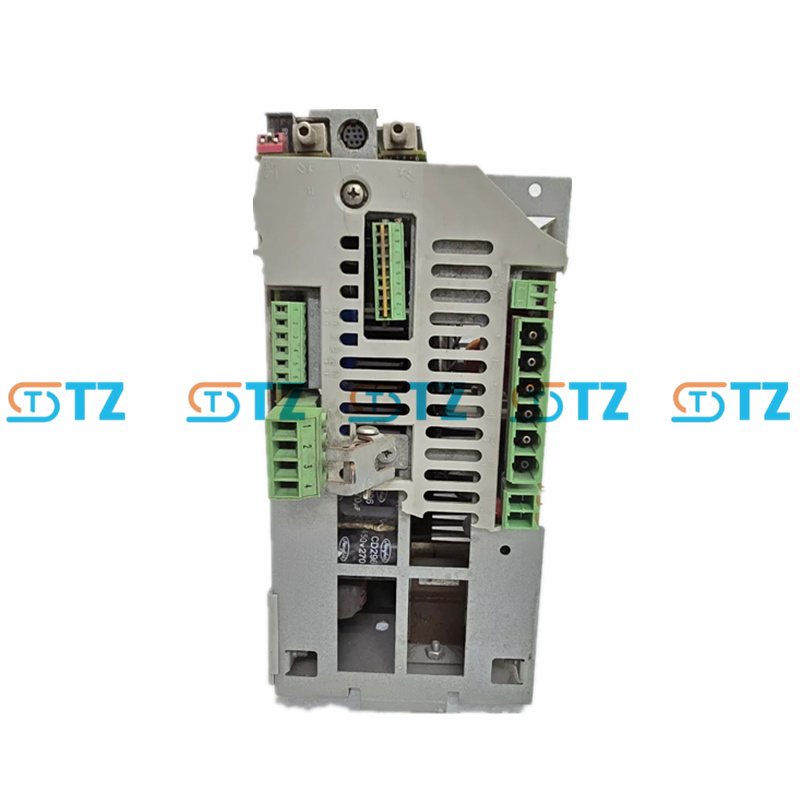

ALLAN BRADLEY 2094-BC02-M02-S Kinetix 6000 Series Integrated Shaft modules (IAM)

Technical parameters

Part Number: 2094-BC02-M02-S

Device type: Integrated Shaft Module (IAM)

Ac input voltage: 324-528V RMS, three-phase (nominal 360-480V)

Ac input frequency: 47-63 Hz

DC bus voltage: 458-747V DC

Dc input current (common bus following) : 22.6A

Ac input current (nominal RMS) : 24.0A

Ac input current (maximum surge 0- peak) : 22.0 A

Control power input: 95-264V RMS, single-phase (nominal 110-240V)

Continuous output power: 15 kW (converter), 6.6 kW (inverter)

Continuous output current: 22.6A (bus), 15A (inverter)

Peak output power: Series A: 30 kW; Series B, C, D: 37.5kW

Peak output current: Series A: 45.2A; Series B, C, D: 56.4A

Efficiency: 97%

Internal parallel resistance: 115 ohms

Internal parallel power: Continuous 50W, peak 5.6kW

Bus overvoltage protection: 825V DC

Bus under-voltage protection: 275V DC

Converter inductance: 500 µH

Converter capacitance: 110 µF

Short-circuit current rating: 200,000 A RMS symmetrical

Power dissipation: 36W at 20% rated power, 44W at 40%, 54W at 60%, 64W at 80%, and 75W at 100%

Operating temperature: 0-50°C (32-122°F

Storage temperature: -40-70°C (-40-158°F)

Protection grade: Complies with C-TICK, CCC, CUL, KC and UL standards

Function

Integrated design: Integrating the converter and inverter into one, simplifying wiring and reducing installation space.

Safe Torque Shutdown (STO) : Complies with ISO 13849-1 PLe/SIL3 standards, with a response time of no more than 25 milliseconds, ensuring rapid equipment shutdown in emergency situations.

High-performance motion control: Supports multi-axis synchronous control (1-8 axes), compatible with various Allen-Bradley servo motors (such as MP, TL/TLY series), and achieves precise motion control through the Logix platform.

SERCOS interface: Supports high-speed optical fiber communication, is resistant to electrical noise, and ensures reliable data transmission.

Peak enhancement mode: The standard peak inverter current is 150%, while the enhanced mode reaches 250%, making it suitable for high dynamic range applications. The peak current of the converter is 200% for Series A and 250% for Series B, C and D.

Modular design: Installed via the power rail, it is easy to expand and maintain, and is compatible with the 2094-BM02-S axis module.

Status monitoring: Equipped with driver status, communication status, bus status and seven-segment fault status leds for easy diagnosis.

Application scenarios

Packaging machinery: Used in high-speed packaging lines to achieve precise cutting, positioning and synchronous movement.

Material handling: Provide smooth and rapid motion control in equipment such as conveyor belts and stackers.

Robot system: Supports multi-axis coordinated control, suitable for complex path planning and positioning.

Processing equipment: such as CNC machine tools and metal processing equipment, to meet the requirements of high-precision positioning.

Printing and textile: Used in printing machines and textile machinery to ensure high-speed and high-precision production.

Semiconductor manufacturing: Providing reliable motion control in wafer processing and assembly equipment.
