ABB FEN306F250KF Record Plus FE250 3-Pole 250A 50kA MCCB Frame 690V

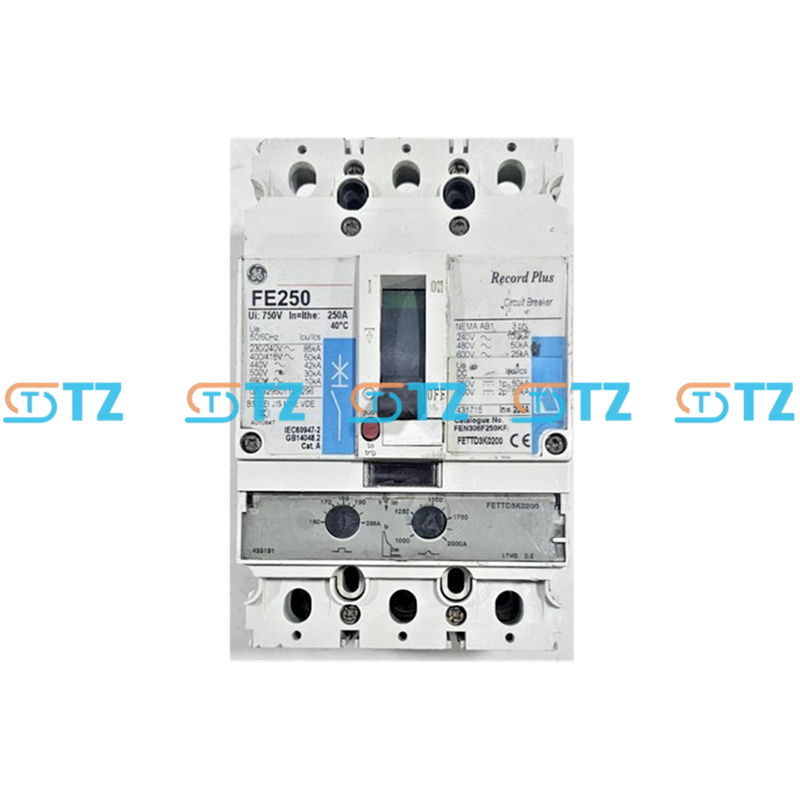

The ABB FEN306F250KF is a Record Plus FE250 three-pole molded case circuit breaker frame rated at 250 A. It is supplied without a trip unit and is designed to accept interchangeable thermal-magnetic, magnetic-only or electronic protection units.

HS CODE :8535292000

  • Product No :

    FEN306F250KF

  • Manufacture :

    ABB

  • Size (cm) :

    17*10.45 *9.5

  • Weight (kg) :

    1.30

  • Origin :

    To Be Confirmed

  • Warranty :

    12 Month

  • Lead Time :

    Ready Stock

  • Description :

    MCCB Frame
Inquiry now

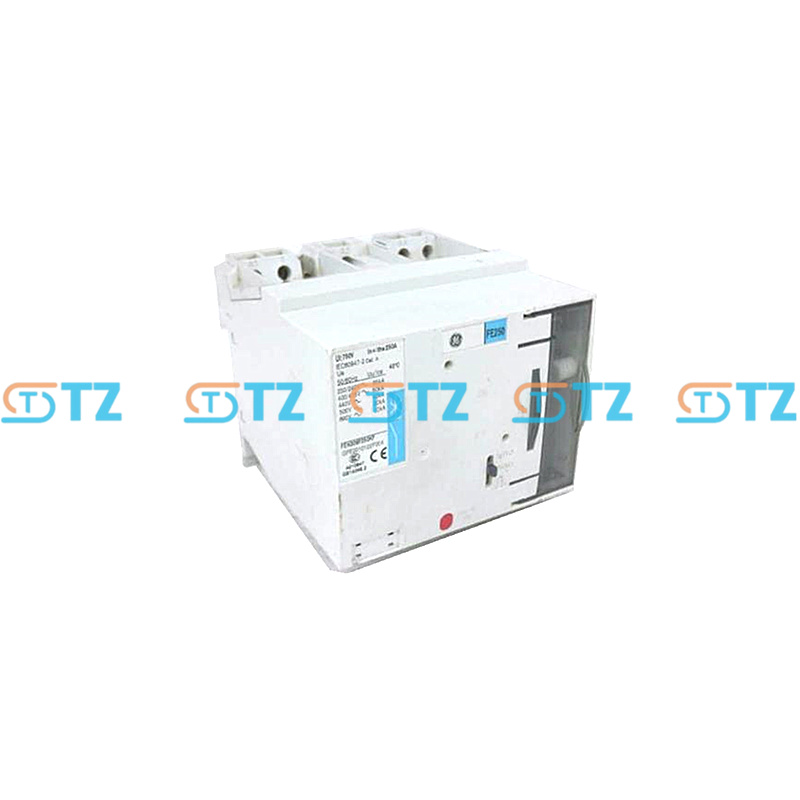

The ABB FEN306F250KF belongs to the Record Plus FE250 family of molded case circuit breaker components. It has a 250 A frame rating and three poles, with a maximum rated insulation voltage of 750 V. The unit is supplied as a breaker frame only and does not include a factory-installed trip unit.

The FE250 frame is designed as a modular MCCB platform in which the protection function can be selected separately. Depending on the application, compatible thermal-magnetic, magnetic-only or electronic trip units can be installed. The frame provides high short-circuit withstand/breaking capability, with the published IEC values reaching 50 kA at 400 V AC and 10 kA at 690 V AC.

Main Features

  • Record Plus FE250 MCCB frame
  • 3-pole configuration
  • 250 A frame rating
  • Supplied without trip unit
  • Interchangeable trip-unit architecture
  • Compatible with thermal-magnetic trip units
  • Compatible with magnetic-only trip units
  • Compatible with electronic trip units
  • 750 V rated insulation voltage
  • Up to 50 kA at 400 V AC
  • Up to 10 kA at 690 V AC
  • Designed for side-by-side panel installation
  • Accessible busbar connection
  • Supports copper or aluminum conductor connections
  • Fixed front-connection frame design

 Application Scope

  • Industrial power distribution
  • Motor and feeder protection
  • Machine control panels
  • Distribution switchboards
  • Industrial MCC panels
  • Generator and transformer protection applications
  • High-current feeder protection
  • Replacement of Record Plus FE250 circuit-breaker frames

Important: The final protection characteristics depend on the trip unit selected and installed, so the frame alone should not be presented as a complete protective circuit breaker.

Product Status: Discontinued / Obsolete Available through surplus, new old stock, refurbished or replacement sourcing.
