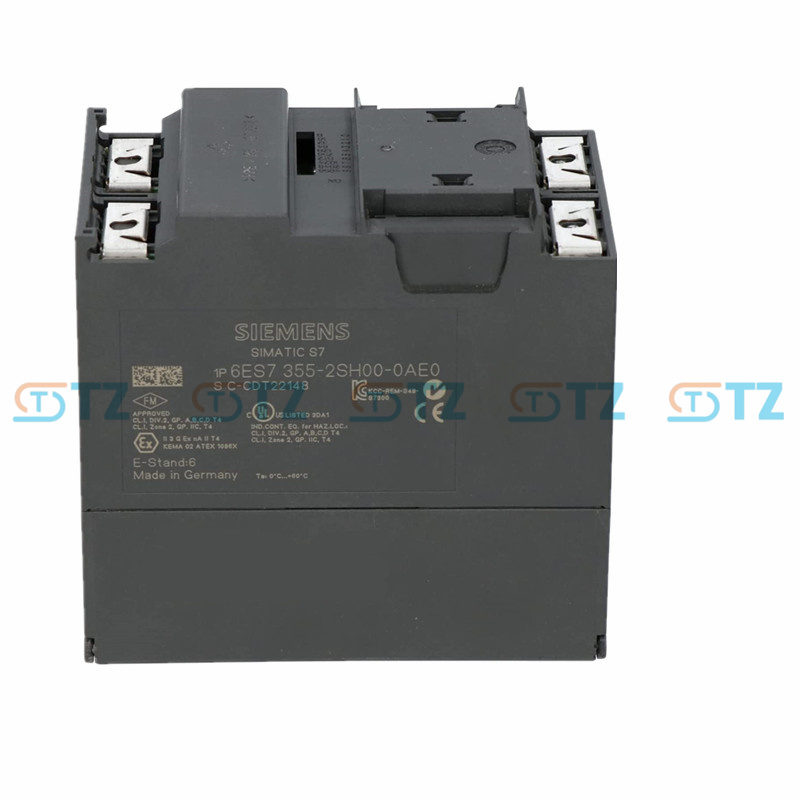

6ES7355-2SH00-0AE0 Siemens Simatic S7-300 Temperature Control Unit

Function

Control channels: It features 4 independent closed-loop control channels, which can be used for closed-loop control of temperature, pressure, flow rate, material level, etc.

Control algorithm: Supports two control algorithms, namely the automatic temperature optimization algorithm and the PID algorithm. Among them, the automatic optimization function of the temperature algorithm is stored on the module and will be automatically activated when the change in the set point exceeds 12%. The PID control algorithm can be optimized through the parameterization screen in the configuration software package.

Output type: Used as a stepping or pulse controller, it features 8 digital outputs for controlling power (integrated) actuators or binary control actuators, such as heating plates and heating tubes, etc.

Input characteristics: It has 4 analog inputs for obtaining analog values and disturbance variable inputs. Different types of encoders such as thermocouples, Pt 100, voltage encoders, and current encoders can also be used. Moreover, when thermocouples are used, there is an additional analog input for temperature compensation.

Working modes: It features multiple working modes, including automatic mode, manual mode, safe mode, following mode and backup mode. After the CPU stops or malfunctions, the controller can operate continuously and independently. The "standby mode" function can set a parameterized safety set point or a parameterized safety control variable.

Application scenarios

General mechanical engineering: It can precisely control parameters such as temperature and pressure in mechanical equipment to ensure the normal operation and processing accuracy of the equipment.

Equipment manufacturing: In the manufacturing process of various production equipment, it is used to achieve precise control and monitoring of the operating status of the equipment.

Industrial combustion furnaces: Precisely regulate the temperature inside the combustion furnace to ensure the stability and efficiency of the combustion process, while meeting the temperature requirements of the production process.

Refrigeration and heating devices: Control the operation of refrigeration or heating equipment to achieve precise temperature control and provide suitable environmental temperatures for production and daily life.

Food and beverage industry: During the food processing and beverage production, parameters such as temperature and pressure are strictly controlled to ensure the quality and safety of the products.

Chemical and process industries: It is used for various parameter control in the chemical production process, such as temperature control of reaction vessels and flow control in pipelines, to ensure the stability and efficiency of the production process.
