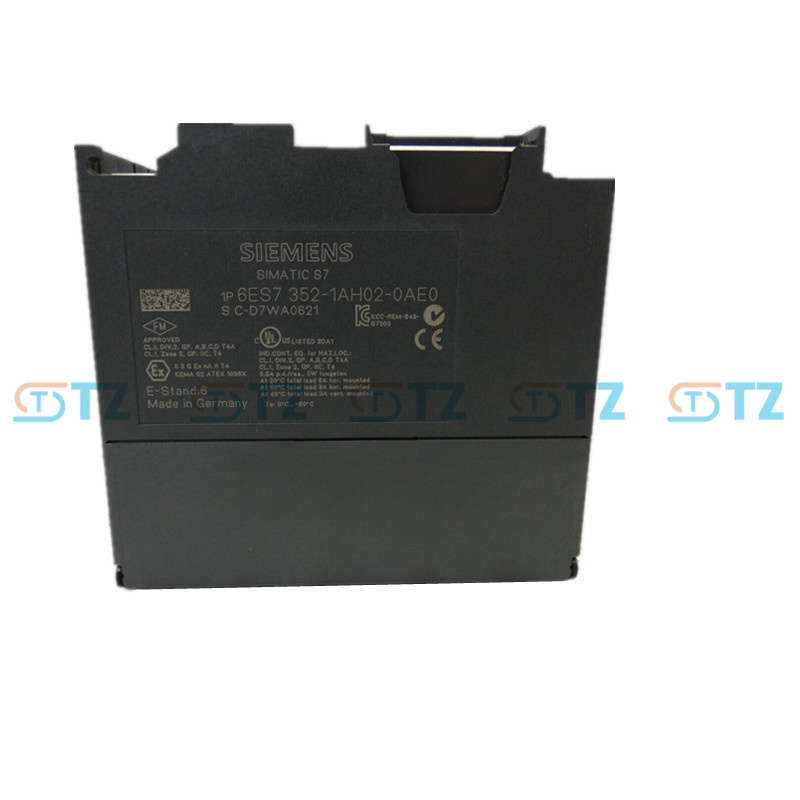

6ES7352-1AH02-0AE0 Siemens Simatic S7-300 Cam Controller

Product parameters

Number of control axes: 1 independent servo/stepper axis

Control mode: Position control

Position feedback: Supports incremental encoders, and the encoder resolution is configurable

Digital input: 4 channels

Digital output: 8 channels

Communication interface: Communicates with the S7-300 CPU via MPI or PROFIBUS DP

Power supply requirement: DC 24V

Operating temperature: 0℃ to 60℃

Installation method: DIN rail mounting

Protection grade: IP20

Function

Single-axis precise positioning: Focusing on the position control of a single axis, it supports absolute coordinate positioning and relative coordinate positioning. The positioning accuracy depends on the resolution of the encoder, meeting the precise displacement requirements of small and medium-sized equipment

Flexible motion control: It includes basic motion modes such as Jog, continuous operation, and positioning start and stop, and motion parameters can be configured through the Step7 software

Signal interaction function: Integrated digital input/output interface, directly connected to emergency stop buttons, limit sensors, drive enable signals, etc., to achieve equipment safety interlock and status feedback

Fault Diagnosis and protection: It is equipped with fault alarm functions such as encoder signal loss, power failure, limit trigger, and communication interruption. Fault information can be uploaded to the CPU for quick problem identification

Convenient parameter configuration: No hardware jumpers are required. The configuration of axis type, encoder parameters, motion logic, etc. can be completed through the Step7 software. Parameter backup and recovery are supported

Application scenarios

Single-axis positioning control for small-scale automated equipment such as small assembly machines, dispensing machines, and marking machines

Material conveying and sorting: Start and stop positioning of belt conveyors, positioning control of the pushing mechanism of sorters

Machine tool auxiliary control: Feed axis positioning of small machine tools and opening and closing positioning of tooling fixtures

Packaging and labeling equipment: Sealing and positioning for small packaging machines, label positioning for labeling machines

Single-axis precise positioning control for electronic manufacturing equipment: circuit board insertion machines and soldering machines
