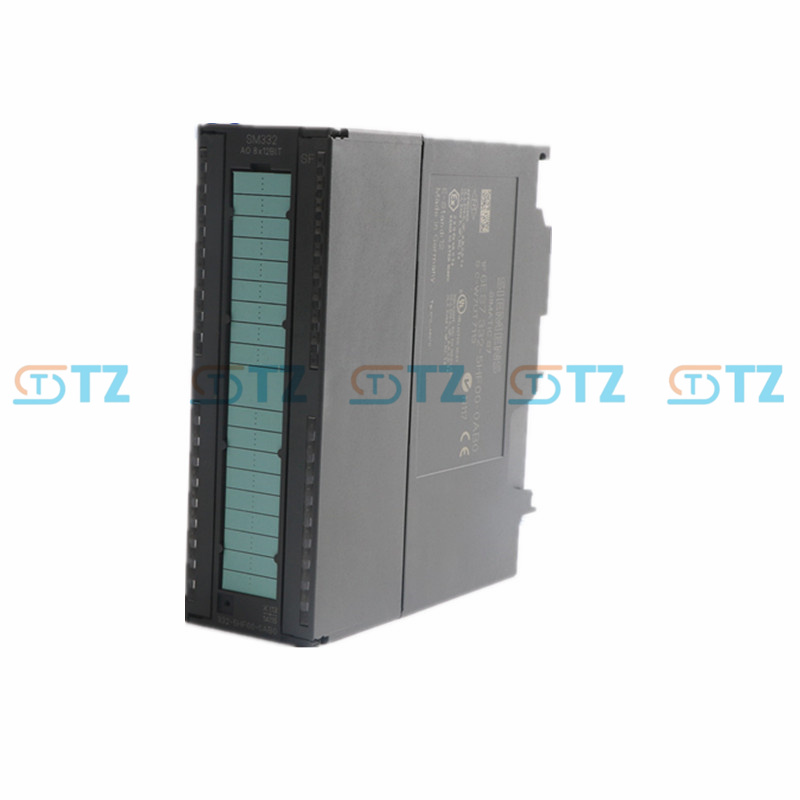

6ES7332-5HF00-0AB0 Siemens Simatic S7-300 Analog I/O Module

Product parameters

Output parameters: A total of 8 analog output channels, supporting voltage and current signal switching; The voltage output range covers 0-10V, 1-5V, and ±10V, while the current output range includes 0-20mA, ±20mA, and 4-20mA. The resolution varies from 11 bits to 12 bits depending on the output range, and the single-channel conversion time is approximately 0.8ms

Power supply and power consumption parameters: Requires 24V DC power supply, with a maximum input current of 340mA at the L + terminal and a maximum current of 100mA on the backplane bus. Typical power consumption is 6W, the maximum load impedance of voltage output is 1kΩ, and the maximum load impedance of current output is 500Ω

Protection and environmental parameters: Equipped with short-circuit protection function, with a maximum short-circuit current of 25mA; Operating temperature: 0-60℃, storage temperature: -40-70℃ There is potential isolation between the module and the backplane bus, with a protection level of IP20

Function

Multi-specification signal output: It can flexibly switch between various voltage and current output ranges, and is adaptable to different types of actuators in industrial sites. For instance, it can output 4-20mA current signals to control valves and 0-10V voltage signals to display instruments, etc., with strong compatibility.

Stable anti-interference and safety protection: The photoelectric isolation design between the module and the backplane bus can effectively resist electromagnetic interference in industrial environments and ensure the stability of signal transmission. Combined with short-circuit protection function, it can prevent module damage when a short-circuit fault occurs in the line, enhancing the safety of system operation.

Fault diagnosis and status feedback: Equipped with configurable alarm functions and LED status indicator lights, if there are issues such as abnormal output or line faults, an alarm will be triggered and the indicator lights will provide intuitive feedback. At the same time, fault signals can be sent to the CPU, facilitating staff to quickly locate and troubleshoot problems.

Hot-swapper compatibility: It supports plugging and unplugging while the backplane bus is powered on, allowing for module replacement or maintenance without shutting down the entire control system. This reduces industrial production interruption time and enhances system operation and maintenance efficiency.

Application scenarios

Process industry process control: In fields such as petrochemicals and chemical synthesis, it is used to control the temperature, pressure and feed flow rate of reaction vessels. For instance, analog signals can be output to pneumatic control valves to adjust the valve opening degree to stabilize the pressure inside the reaction vessel, or the rotational speed of the feed pump can be controlled to precisely control the feed volume.

Manufacturing automation production line: Suitable for scenarios such as automotive parts assembly lines and electronic component production assembly lines, it can control the running speed of conveyor belts, the movement range of mechanical arms, etc. For instance, analog signals are output to the servo driver to achieve precise positioning of the assembly actions of the robotic arm, ensuring the assembly accuracy of components.

In the field of energy and water treatment: In the power system, signals can be output to the voltage regulating device of the transformer to achieve stable voltage control. In water treatment plants, the dosage of chemicals in dosing pumps and the aeration intensity of aeration equipment can be controlled. By outoutput corresponding analog signals, the parameter requirements at different stages of the water quality treatment process can be adapted to ensure that the effluent quality meets the standards.

Warehousing and logistics equipment control: It is used for the control of stacker cranes and sorting line equipment in automated stereoscopic warehouses. Analog signals are output to the lifting and walking motor actuators of the stacker cranes to precisely control their running speed and positioning accuracy. At the same time, the sorting rhythm of the sorting device can also be adjusted to improve the operational efficiency of warehousing and logistics.
