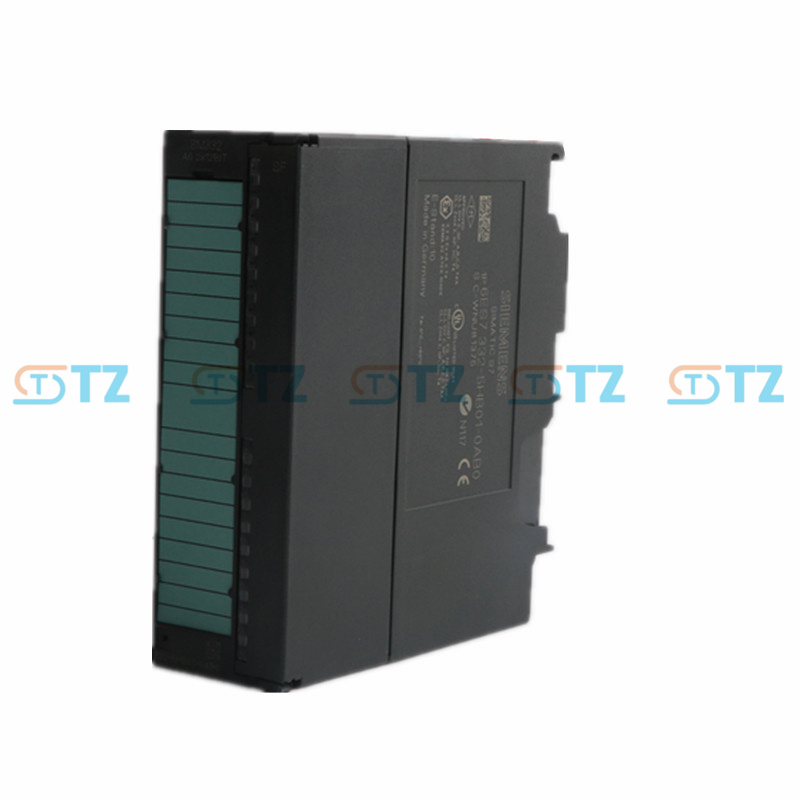

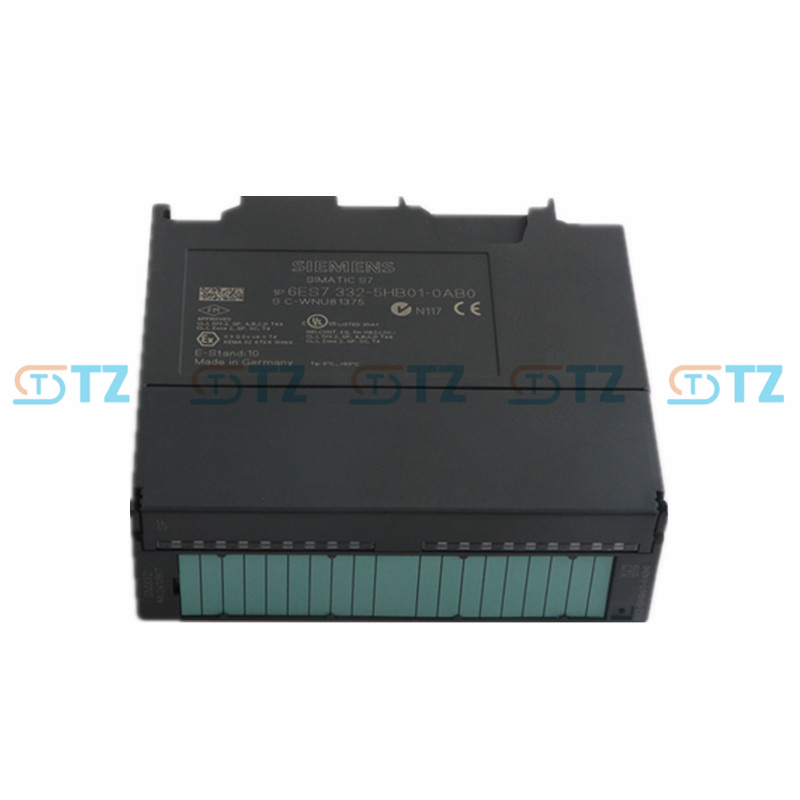

6ES7332-5HB01-0AB0 Siemens Simatic S7-300 Analog I/O Module

Product parameters

Number of output channels: 2.

Signal type: Supports voltage/current output, capable of outperforming standard industrial signals such as 0-10V, 0-20mA, and 4-20mA.

Resolution: 11/12 bits.

Isolation voltage: Optical isolation between channels, with an isolation voltage of 500V DC.

Power supply voltage: 24V DC.

Power consumption: The typical value is 3W.

The maximum length of the shielded cable is 200 meters.

Product function

Analog output: It can convert the digital signals of the PLC into analog signals for output, which is used to control and regulate various actuators and regulating devices, such as control valves, frequency converters, etc.

Potential isolation: The module is equipped with an internal optocoupler to achieve electrical isolation between input and output channels, effectively blocking electromagnetic interference generated by on-site equipment and ensuring the stability and reliability of signal transmission.

Fast response: Communication latency with CPU is less than 1ms, supporting millisecond-level signal updates, suitable for high-speed dynamic control scenarios.

Diagnostic function: It has channel-level diagnostic function, which can monitor faults such as output short circuit and overload in real time, and quickly locate the problem point through LED indicator lights and TIA Portal software.

Application scenarios

Process control: In industries such as chemical engineering and pharmaceuticals, the opening degree of the regulating valve is controlled by outputting a 4-20mA signal to achieve closed-loop regulation of parameters such as flow rate, pressure, and liquid level.

Temperature control: In industries such as metallurgy and building materials, a 0-10V signal is output to drive the thyristor power regulator, precisely controlling the power output of the electric heating element to achieve precise temperature control.

Speed regulation: In the transmission system, the output frequency of the frequency converter is controlled by a 0-20mA signal to achieve stepless adjustment of the motor speed. For example, in the paper machine winding system, it can reduce the tension fluctuation of the paper roll.

Position control: In mechanical manufacturing, a ±10V signal is output to drive the servo driver, achieving the positioning of mechanical shafts and enhancing the repeatability accuracy of positioning.
