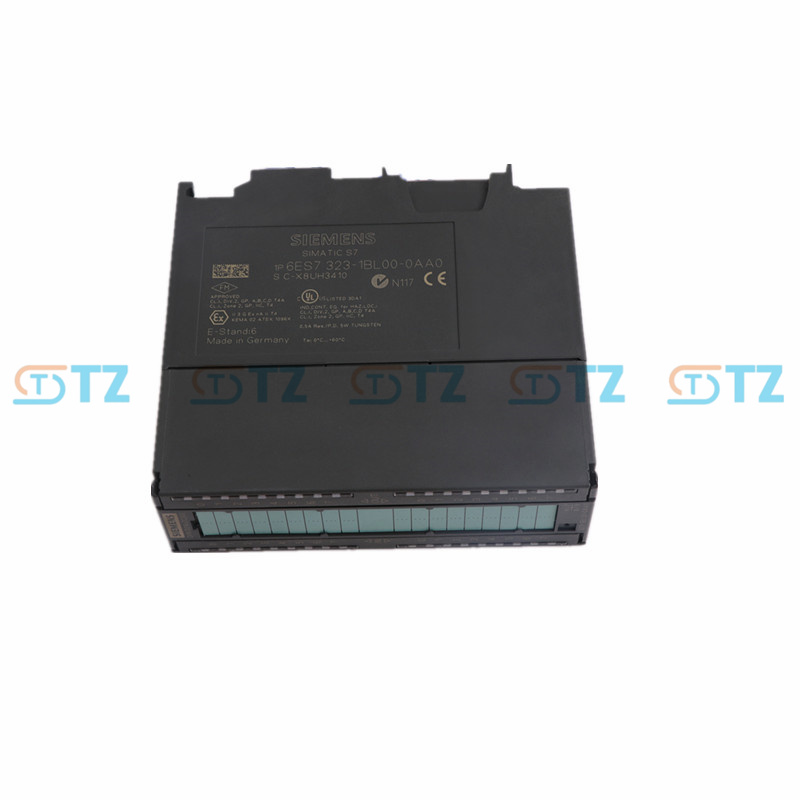

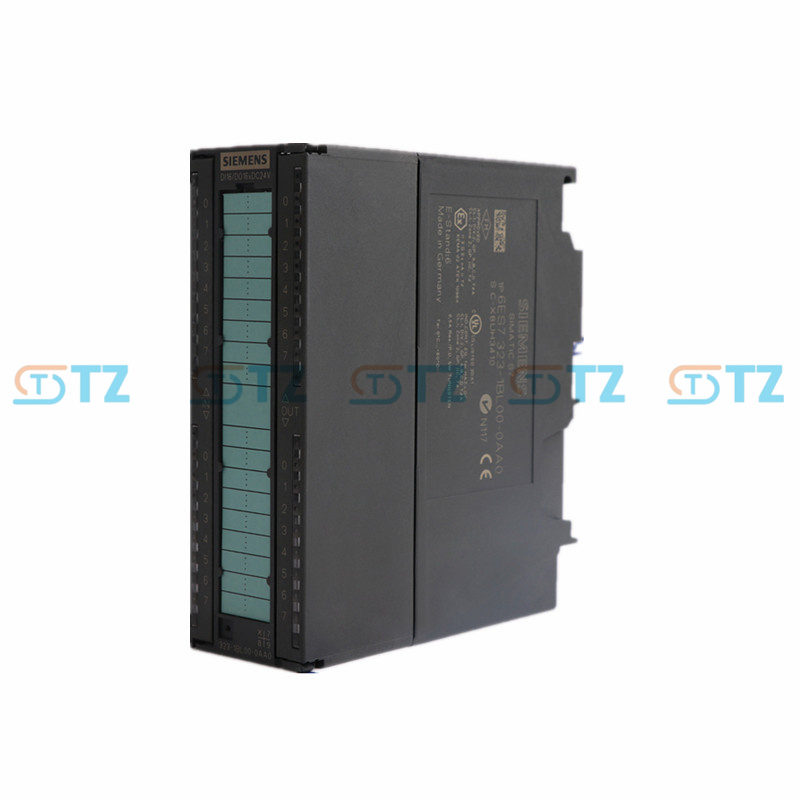

6ES7323-1BL00-0AA0 Siemens Simatic S7-300 Digital I/O Module

Product parameters

Module type: Digital input/output hybrid module

Channel configuration: 16 digital input channels + 16 digital output channels

Input parameters: Rated voltage: 24V DC (Polarity protection)

Signal range: "0" state ≤ 5V DC, "1" state ≥ 13V DC

Input current: Typical value of "1" state: 7mA

Input delay: 1.2ms to 4.8ms

Cable length: Maximum 1000m for shielded cables and maximum 600m for unshielded cables

Output parameter Output type: Transistor output

Rated load voltage: 24V DC

Maximum output current per channel: 0.5A

Total output current: 16A

Output delay: "1" state → "0" state, maximum 10μs; The maximum range from "0" state to "1" state is 10μs

The power supply is provided by the S7-300 PLC backplane bus

The isolation feature: Electrical isolation between the input/output channels and the backplane bus. There is no isolation between input channel groups and output channel groups

Environmental adaptability: Operating temperature: 0-60℃

Storage temperature: -40-85℃

Relative humidity: 5-95% (no condensation)

Protection grade: IP20

Compatible with the entire series of S7-300 cpus, it supports STEP 7 V5.x and above software programming configuration

Function

Bidirectional digital signal interaction: Integrating 16 input and 16 output channels, it can simultaneously achieve the collection of digital signals in industrial sites and the drive control of loads, without the need for separate configuration of input/output modules, saving cabinet space and costs.

High stability signal processing: The input channel is equipped with polarity protection and filtering functions. The input filtering time can be adjusted through software to effectively suppress electromagnetic interference in industrial sites and prevent false signal triggering. The output adopts a transistor structure with a fast response speed (microsecond delay), making it suitable for high-frequency switching control scenarios.

Flexible load adaptation: With an output current of 0.5A per channel, it can directly drive commonly used small industrial loads without the need for additional intermediate relays, simplifying wiring and system structure. The design with a total output current of 16A meets the load requirements of multiple channels working simultaneously.

Seamless integration with Siemens ecosystem: No additional driver required, plug and play. Parameters such as input filtering and output status diagnosis can be quickly configured through STEP 7 software. It works in coordination with S7-300 series PLCS and other expansion modules, with strong compatibility.

Intuitive status and fault diagnosis: The module is equipped with LED indicator lights for power supply (PWR), operation (RUN), and channel status, which can display the power supply status, working status, and the on-off status of each input/output channel of the module in real time, facilitating rapid on-site fault detection.

Application scenarios

Manufacturing automation production lines: automotive parts processing, electronic assembly lines, mechanical processing equipment, etc., such as collecting the status of limit switches and photoelectric sensors, driving the start and stop of conveyor belt motors, pneumatic fixture clamping/releasing, and switching of assembly station indicator lights, etc., to achieve automated process control of the production line.

Logistics and warehousing equipment: automated stereoscopic warehouses, conveyor conveying systems, sorting equipment, etc., such as collecting signals from goods detection sensors and warehouse position arrival signals, driving stacker crane traveling motors, lifting mechanisms, sorting solenoid valves, etc., to achieve automated dispatching of logistics handling.

Packaging and printing industry: Packaging machines, printing machines, labeling machines and other equipment, such as collecting the status of tension sensors, paper/material detection signals, driving cutters, feeding motors, solenoid valves of labeling heads, fault alarm indicator lights, etc., ensure the continuous and stable operation of the packaging/printing process.

Auxiliary equipment for building materials and chemicals: cement production lines, chemical raw material conveying systems, etc., such as collecting valve limit signals, pump body operation status signals, driving the opening and closing of feed valves, starting and stopping of conveying pumps, material level alarm indicator lights, etc., to achieve interlocking control of auxiliary equipment.

Small-scale automated equipment: Laboratory automation devices, small-scale specialized equipment (such as sealing machines, coding machines), etc., are suitable for the control requirements of medium and small-scale digital quantities, featuring both cost advantages and reliability, and simplifying the design of equipment control systems.

Building and building automation: Intelligent factory workshop lighting, ventilation systems, access control, etc., such as collecting human body sensing sensors, door magnetic switch signals, driving lighting fixtures, exhaust fans, access control locks, etc., to achieve intelligent control of the building environment.
