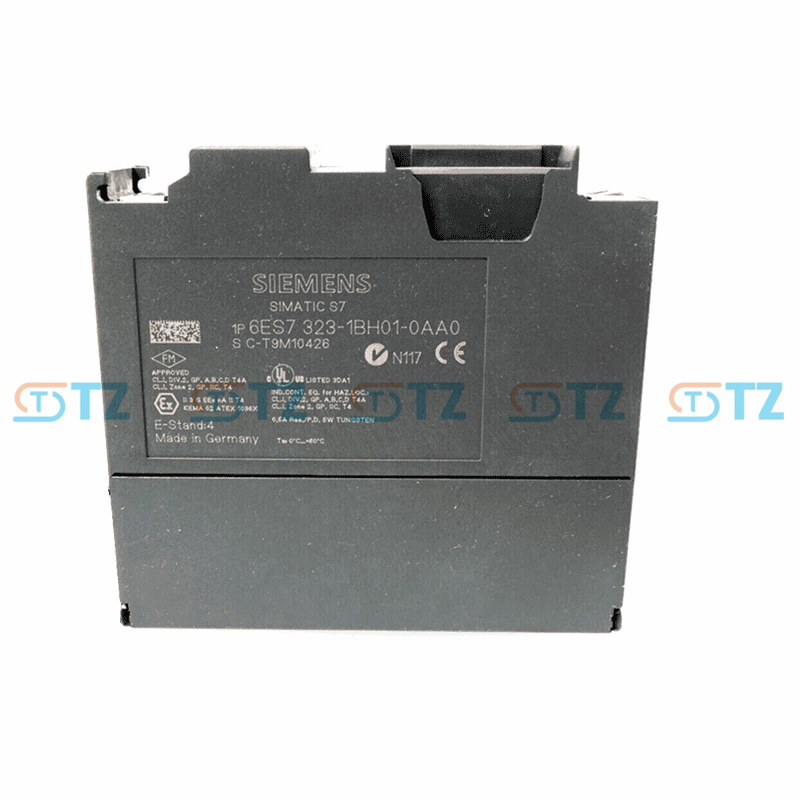

6ES7323-1BH01-0AA0 Siemens Simatic S7-300 Digital I/O Module

Product parameters

Module type: Digital input/output hybrid module

Channel configuration: 8 digital input channels + 8 digital output channels

Input parameters: Rated voltage: 24V DC

Signal logic: "0" state ≤ 5V DC, "1" state ≥ 13V DC

Input current: Typical value of "1" state is 7mA, typical value of "0" state is ≤ 1mA

Input delay: 1.2ms to 4.8ms in standard mode, and the filtering time can be configured through software

Cable length: Maximum 1000m for shielded cables and maximum 600m for unshielded cables

Output parameter Output type: Transistor output

Rated load voltage: 24V DC

Maximum output current per channel: 0.5A

Total output current: 8A

Output delay: "1" → "0" or "0" → "1", maximum 10μs

Power supply: Powered by the backplane bus of the S7-300 PLC

Isolation feature: Electrical isolation between the input/output channels and the backplane bus; There is no isolation between the input group and the output group

Environmental adaptability: Operating temperature: 0-60℃

Storage temperature: -40-85℃

Relative humidity: 5-95%

Protection grade: IP20

Compatible system: Compatible with all series of S7-300 cpus, supports STEP 7 V5.x and above software programming configuration

Function

Bidirectional signal integrated processing: It integrates 8 input channels and 8 output channels, capable of simultaneously completing digital signal acquisition and load drive control in industrial sites. There is no need to split and configure separate input/output modules, simplifying the system architecture.

Anti-interference and signal protection: The input channel is equipped with polarity protection and software-adjustable filtering functions, which can effectively suppress electromagnetic interference (EMI) and signal jitter in industrial sites and prevent false triggering. The output channel adopts a transistor structure, featuring a fast response speed and is suitable for high-frequency switching control scenarios.

Flexible load drive: With an output current of 0.5A per channel, it can directly drive a small 24V DC load without the need for additional intermediate relays, reducing system costs. The design with a total output current of 8A meets the load requirements of multiple channels working simultaneously.

Seamless integration and rapid configuration: No additional driver required, plug and play. Parameters such as input filtering time and output status diagnosis can be quickly configured through STEP 7 software. It has strong synergy and excellent compatibility with S7-300 series PLCS and other expansion modules.

Intuitive fault diagnosis: The module is equipped with LED indicator lights for power supply (PWR), operation (RUN), and channel status, which can display the power supply status, working status, and the on-off status of each input/output channel of the module in real time, facilitating rapid on-site fault location.

Application scenarios

Small-scale production lines in manufacturing: electronic component assembly lines, small-scale mechanical processing equipment, parts inspection equipment, etc., such as collecting photoelectric sensors, limit switches, driving pneumatic fixtures, sorting solenoid valves, station indicator lights, etc., to achieve automated production process control.

Packaging and printing equipment: small packaging machines, labeling machines, coding machines, etc., such as collecting material detection signals, tension switch signals, driving feeding motors, knife solenoid valves, fault alarm lights, etc., to ensure the continuous and stable operation of the equipment.

Logistics auxiliary equipment: small conveyor conveyor lines, warehousing and sorting devices, AGV auxiliary equipment, etc., such as collecting signals from goods detection sensors and position arrival signals, driving the start and stop of conveyor motors, the operation of sorting mechanisms, position indicator lights, etc., to achieve automated dispatching of logistics handling.

Chemical and building materials auxiliary systems: small chemical raw material transfer pumps, auxiliary valves for cement production lines, dust treatment equipment, etc., such as collecting pump body operation status signals, valve limit signals, driving the opening and closing of feed valves, pump body start and stop, alarm devices, etc., to achieve interlocking control of auxiliary systems.

Laboratories and specialized equipment: Industrial laboratory automation devices, small-scale specialized testing equipment, medical equipment, etc., are suitable for small-batch digital signal interaction requirements, featuring both reliability and flexibility, and simplifying the design of equipment control systems.

Building and workshop automation: Local lighting control in factory workshops, ventilation systems, small access control devices, etc., such as collecting human body sensing sensors, door magnetic switch signals, driving lighting fixtures, exhaust fans, access control locks, etc., to achieve intelligent control of the local environment.
