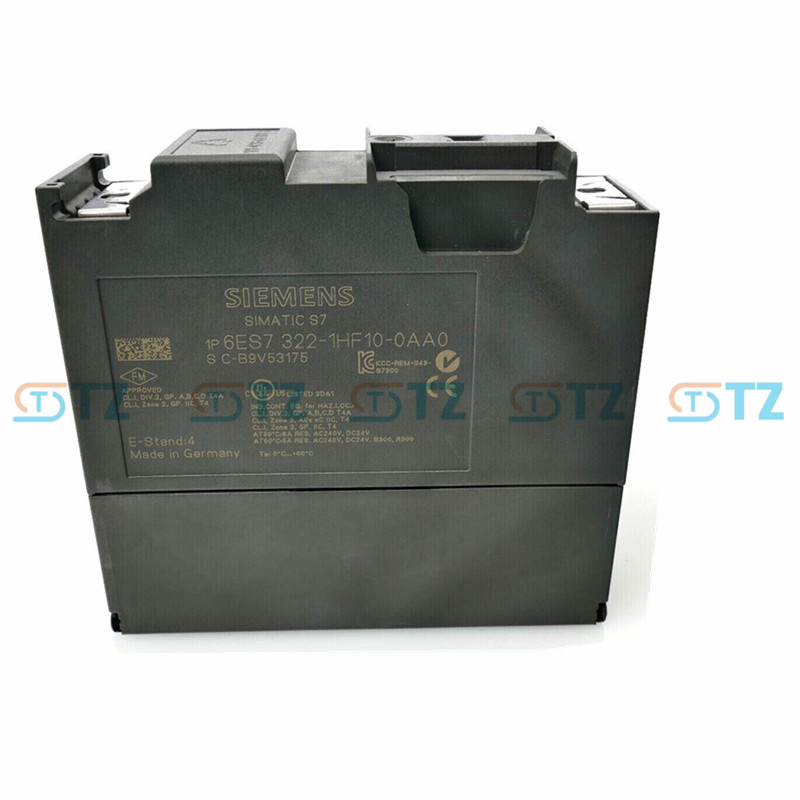

6ES7322-1HF10-0AA0 Siemens Simatic S7-300 Digital I/O Module

Product parameters

Module type: Digital output module

Number of output channels: 8 independent output channels

Output type: Relay output

Load voltage range: AC 24-230V/DC 24-125V

Output current specification: Maximum output current per channel: 2A; Minimum switching current: 100μA (DC)

Load capacity limit: Total output current of the module: 8A

Switching characteristics: Maximum switching frequency: 1Hz/ 0.5Hz; Mechanical life ≥10⁷ times, electrical life ≥10⁵ times

Power supply: Powered by the backplane bus of the S7-300 PLC

Isolation feature: All output channels are electrically isolated from the backplane bus. There is no isolation between the channels

Environmental adaptability: Operating temperature: 0-60℃

Storage temperature: -40-85℃

Relative humidity: 5-95%

Protection grade: IP20

Compatible system: Compatible with all series of S7-300 cpus, supports STEP 7 V5.x and above software programming configuration

Function

Multi-type load compatible drive: The relay output is designed without polarity, which can directly drive both AC and DC types of loads, covering commonly used industrial devices such as 24V DC solenoid valves, 220V AC contactor coils, indicator lights, and other medium and low power equipment. There is no need to distinguish the polarity of the load power supply, reducing the risk of incorrect wiring.

Stable and reliable switch control: Each channel has an output current of 2A, which meets the requirements of most conventional loads. The mechanical and electrical life of the relay contacts is long, making it suitable for medium and low frequency switch scenarios. There is no temperature drift or aging problem of transistor output, and it has strong long-term operation stability.

Strong anti-interference and isolation protection: The electrical isolation design between the output channel and the backplane bus can effectively resist electromagnetic interference (EMI), surge voltage and ground loop interference in industrial sites, protect the PLC host and modules, and enhance the overall reliability of the system.

Seamless integration and rapid configuration: No additional drivers are required. Plug and play. The output channel status and fault diagnosis parameters can be quickly configured through STEP 7 software. It has excellent coordination and strong compatibility with S7-300 series PLCS and other expansion modules.

Intuitive fault diagnosis: The module is equipped with LED indicator lights for power supply (PWR), operation (RUN), and channel status, which can display the power supply status, working status, and on-off status of each output channel of the module in real time, facilitating rapid on-site troubleshooting.

Application scenarios

Conventional production lines in manufacturing: electronic assembly lines, small-scale mechanical processing equipment, parts inspection lines, etc., such as driving pneumatic fixture solenoid valves, workstation indicator lights, small relay coils, to achieve functions such as workpiece positioning, process switching, and status indication.

Auxiliary control in process industry: Control of auxiliary equipment in the chemical, food and beverage, and pharmaceutical industries, such as driving small transfer pump contactors, pipeline stop valves, material level alarm indicator lights, etc., to ensure the stable operation of production auxiliary processes.

Energy and power auxiliary systems: Control of auxiliary equipment in power plants and substations, such as driving cooling fans, small sewage pumps, valve actuators, etc., to achieve interlocking control and safety monitoring of auxiliary systems.

Auxiliary equipment for building materials and metallurgy: Small auxiliary devices for cement production lines and steel mills, such as drive silo discharge valves, solenoid valves for dust removal systems, temperature alarm lights, etc., suitable for complex industrial environments.

Building and building automation: Factory workshop lighting systems, central air conditioning terminal equipment, access control devices, etc., such as contactors for driving lighting fixtures, switches for air conditioning fans, and actuators for access control locks, to achieve centralized and automated control of building equipment.

Small-scale specialized equipment: laboratory automation devices, small packaging machines, coding machines, etc., are suitable for small-batch digital output requirements, featuring both reliability and cost advantages, and simplifying the design of equipment control systems.
