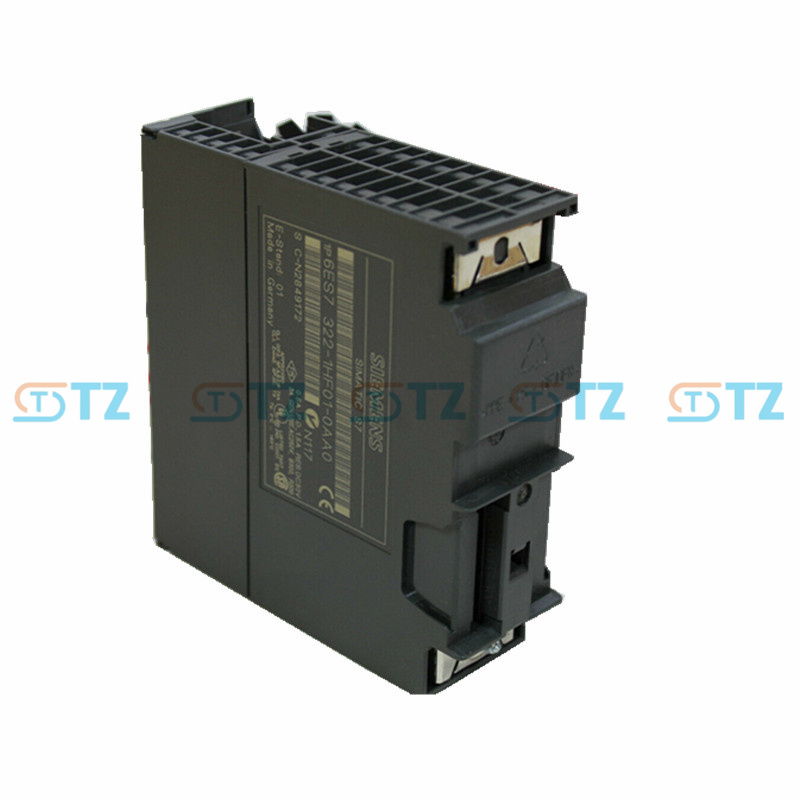

6ES7322-1HF01-0AA0 Siemens Simatic S7-300 Digital I/O Module

Basic parameters

Module type: Digital output module.

Output channel number: 8 channels.

Output type: Relay output.

Load voltage range: DC 24V/AC 230V.

Output current specification: The maximum output current per channel is 2A, and the minimum load current is 5mA.

Switching frequency: The maximum value is 2Hz under resistive load and 0.5Hz under inductive load.

Isolation feature: Optocouplers are used for insulation between channels and between channels and the backplane bus, with an insulation test voltage of AC 1500V.

Power supply: The power supply voltage is DC 24V. The input current comes from the power supply voltage L + with a maximum value of 160mA, and from the backplane bus DC 5V with a maximum value of 40mA.

Function

High compatibility: The relay output is designed without polarity, allowing direct drive of both AC and DC types of loads. It can cover commonly used industrial devices such as 24V DC solenoid valves and 220V AC contactor coils, which are medium and low power equipment.

Stable and reliable: Each channel has an output current of 2A, which meets the requirements of most conventional loads. The relay contacts have a long mechanical and electrical life, making it suitable for medium and low frequency switching scenarios, with strong long-term operational stability.

Convenient fault diagnosis: The module is usually equipped with status indicator lights, which can display the output status of each channel in real time, facilitating quick troubleshooting.

Application scenarios

Manufacturing production line: It can be used to drive pneumatic fixture solenoid valves, workstation indicator lights, small relay coils, etc., to achieve functions such as workpiece positioning, process switching, and status indication.

Process industry auxiliary control: In industries such as chemical engineering and food and beverage, it can drive small transfer pump contactors, pipeline stop valves, material level alarm indicator lights, etc., ensuring the stable operation of production auxiliary processes.

Building and building automation: It can be used to control the contactors of lighting fixtures, the switches of air conditioning fans, the actuators of access control locks, etc., to achieve centralized automated control of building equipment.
