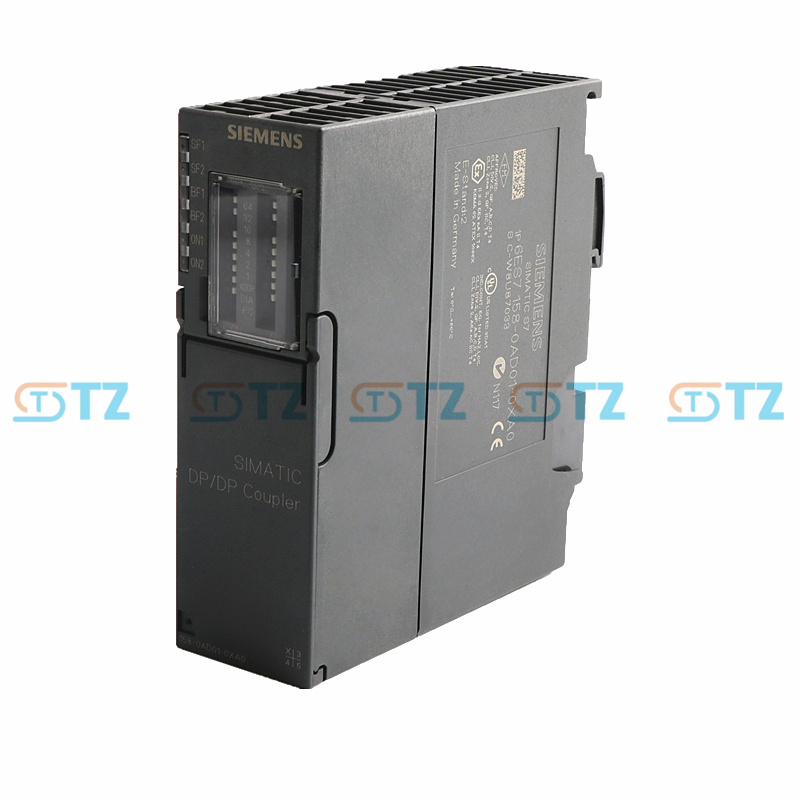

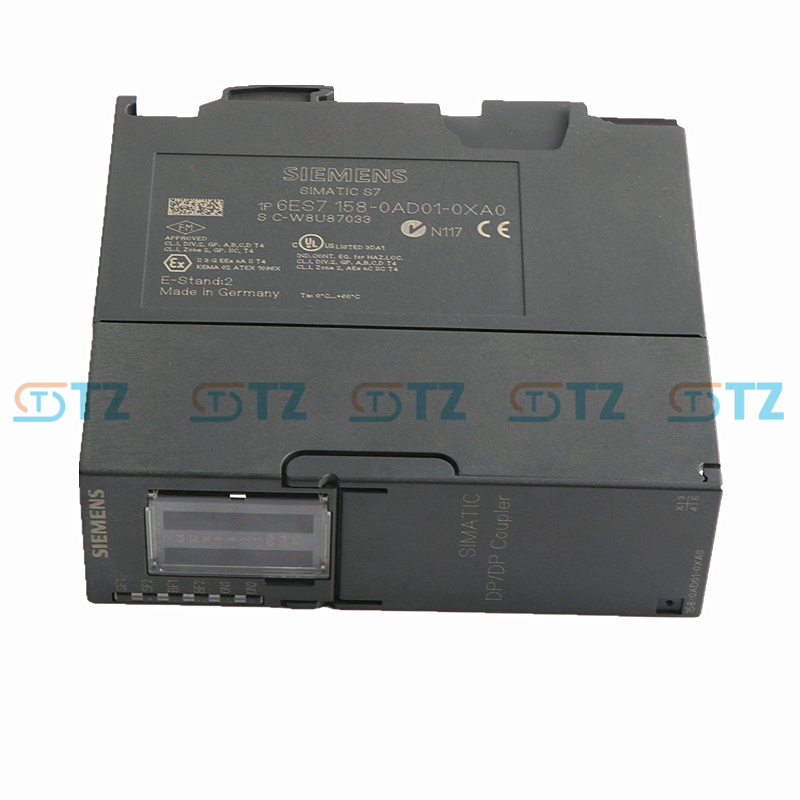

6ES7158-0AD01-0XA0 Siemens SIMATIC Profibus DP / DP Coupler Module

Product parameters

Model: 6ES7158-0AD01-0XA0

Series: SIMATIC ET 200

Function: DP/DP coupler module, connecting two PROFIBUS DP networks

Communication protocol: PROFIBUS DP (conforming to EN 50170 standard)

Data transmission rate: Up to 12 Mbit/s

Interface:

Two PROFIBUS DP interfaces (9-pin Sub-D connector)

Power supply:

Redundant power input: 24V DC (20.4-28.8V DC)

Current consumption: Up to 150 mA @ 24V DC

Data exchange

Maximum input data: 244 bytes

Maximum output data: 244 bytes

Maximum total data: 512 bytes (input + output)

Operating temperature: 0 to 60°C

Storage temperature: -40 to 70°C

Relative humidity: 10 to 95% (no condensation)

Protection grade: IP20

Certifications: CE, UL, cULus, ATEX (Applicable to hazardous areas)

Function

Network connection: Connect two PROFIBUS DP networks and support data exchange between two independent DP master stations or slave stations.

Efficient data transmission: Supports up to 244 bytes of input and output data, suitable for high-density data exchange requirements.

Redundant power supply: Provides dual 24V DC power input to enhance system reliability and prevent single-point power failure.

Diagnostic function: It provides LED status indicator lights (power, error, operating status), facilitating rapid diagnosis of network and module status.

Flexible configuration: It can be configured through STEP 7 or TIA Portal software, supports the import of GSD files, and simplifies network Settings.

Modular design: Compatible with SIMATIC ET 200 distributed I/O systems and can be integrated into various automation architectures.

Application scenarios

Process control: Connect different process control subnets in the SIMATIC PCS 7 system.

Manufacturing automation: Network bridging for different production lines in factory automation.

Distributed control: Achieving data sharing between master stations and slave stations in a distributed I/O system.

Complex machine control: Connect multiple PROFIBUS DP networks to achieve coordinated control of complex devices.

Hazardous area: Compliant with ATEX certification, suitable for distributed control in explosive hazardous areas.
