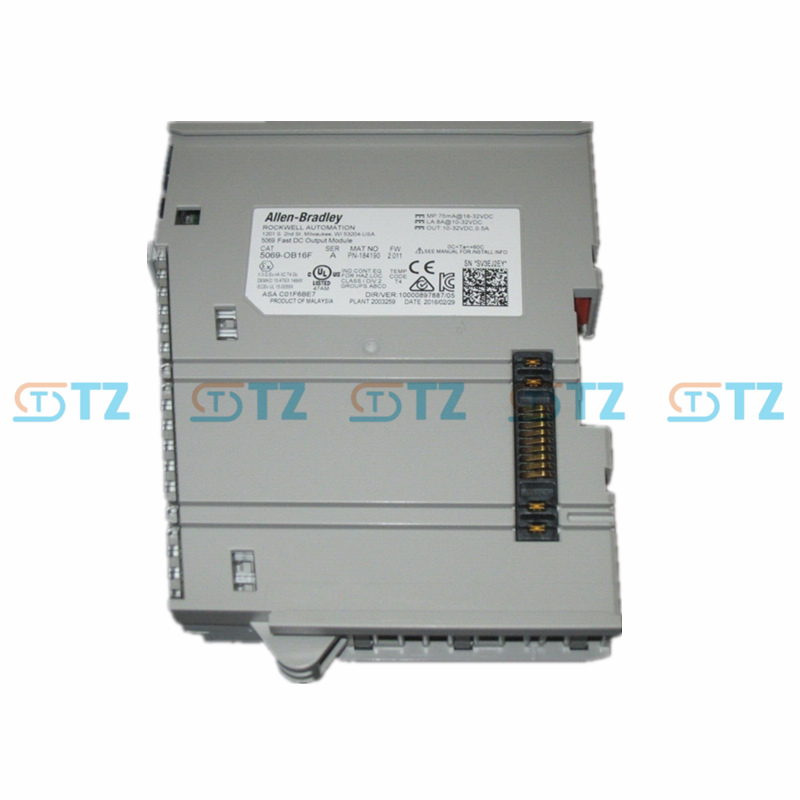

5069-OB16F Allen Bradley Rockwell Compact I/O 16 Channel Fast 24V DC Source Output Module

Product Parameters

Module Type: Compact 5000 Fast Digital DC Output Module (sourcing)

Output Channels:

16 channels (single group, sourcing)

Voltage Range: 10–32 V DC

Nominal Voltage: 24 V DC

Output Current: 0.5 A per channel (max), 8 A per module (max)

Surge Current: 1 A per channel for 10 ms (repeatable every 2 s)

Off-State Leakage Current: 0.1 mA max

Switching Times:

OFF to ON: ≤10 µs ±1 µs @ 25°C (77°F)

ON to OFF: ≤10 µs ±1 µs @ 25°C (77°F)

Special Features:

Pulse Width Modulation (PWM): Supported

Scheduled Outputs: Supported

Pattern Matching: Supported

Timestamp Accuracy: ±10 µs

Resolution: 1 ns

Power:

Module Power (MOD Power): 18–32 V DC (SELV/PELV), 100 mA max current

Sensor/Actuator (SA) Power: 10–32 V DC, 8.2 A max current (includes field-side devices)

Power Dissipation: 3.9 W (16 channels @ 0.5 A)

Thermal Dissipation: 13.3 BTU/hr

Indicators:

16 channel status LEDs (yellow for active outputs)

1 module status LED (green/red for operational status)

Terminal Block:

Compatible RTBs: 5069-RTB18-SPRING, 5069-RTB18-SCREW (not included)

Wiring: 0.5–1.5 mm² (22–16 AWG) solid or stranded shielded copper wire, insulation rating 105°C (221°F), max diameter 2.9 mm (spring RTB) or 3.5 mm (screw RTB)

One wire per terminal (spring RTB), one or two wires per terminal (screw RTB)

Installation:

DIN Rail: Zinc-plated chromate-passivated steel (EN50022, 35 x 7.5 mm)

Latching Mechanism: Integrated for secure mounting

Environmental Conditions:

Operating Temperature: 0°C to 60°C (32°F to 140°F)

Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Relative Humidity: 5% to 95% (non-condensing)

Vibration: 5 g @ 10–500 Hz

Shock: 30 g (operating), 50 g (non-operating)

Altitude: Up to 2000 m without derating

Enclosure: Open-style (requires protective cabinet, Pollution Degree 2 per EN/IEC0664-1)

Certifications:UL, cULus, CE, RCM, ATEX, IECEx, KC, China CCC, American Bureau of Shipping

Maximum Modules: Controller-dependent , up to 31 per adapter

Programming Software: Studio 5000 Logix Designer (version 31 or higher)

UPC/GTIN: 889508141633

Functions

Fast Output Switching:

Controls DC devices with transition times ≤10 µs (±1 µs @ 25°C), ideal for high-speed applications (e.g., precise actuator control).

Supports PWM, scheduled outputs, and pattern matching for advanced control.

High-Speed Control:

Drives DC-powered devices (e.g., relays, solenoids, indicators) with 16 sourcing outputs, up to 0.5 A per channel (8 A total).

Timestamp accuracy (±10 µs) and 1 ns resolution enable precise output timing.

Configurable Output States:

Configurable fault states (Hold Last State, On, Off [default]) for Fault, Program, or Communication Failure modes.

Scheduled outputs allow precise timing for synchronized control.

Flexible I/O Integration:

Functions as local I/O for CompactLogix 5380, Compact GuardLogix 5380, or CompactLogix 5480 controllers.

Supports distributed I/O via 5069-AEN2TR or 5069-AENTR for CompactLogix 5380, ControlLogix 5580, or GuardLogix 5580.

Uses producer/consumer communication model for efficient data exchange.

Network Compatibility:

Integrates with Ethernet/IP networks (1 Gbps, Linear/Star/DLR topologies) via controller or adapter.

Requires separate SA power bus (DC) for field device power, isolated from MOD power (DC).

Diagnostics and Monitoring:

16 yellow channel LEDs indicate active outputs;  1 green/red module LED shows operational status.

Supports diagnostic reporting via Studio 5000 for troubleshooting (e.g., short circuit detection).

Environmental Reliability:

DIN-rail mounting with latching mechanism ensures secure installation.

Open-style enclosure requires a protective cabinet for dust/corrosive environments.

Withstands vibration (5 g), shock (30 g operating), and operation at 2000 m altitude.

Application Scenarios

High-Speed Automation:

Drives fast-switching DC actuators in production lines (e.g., high-speed sorting, labeling).

Compatible with 5069-L330ERM (24 I/O) or 5069-L320ERS2 (16 I/O).

Motion and Positioning:

Controls DC devices in servo or stepper motor systems requiring precise timing (e.g., PWM for speed control).

Scheduled outputs support synchronized motion tasks.

Material Handling:

Manages DC solenoids or relays in conveyor systems or robotic pick-and-place operations.

DLR topology ensures reliable network communication.

Packaging Systems:

Actuates DC devices in high-speed packaging machines (e.g., sealing, cutting).

Fast response (≤10 µs) supports high-throughput operations.

Distributed Control Systems:

Functions as distributed I/O via 5069-AEN2TR/AENTR for factory-wide control.

Integrates with 5069-series controllers for scalable automation.

OEM Equipment Integration:

Provides fast DC output control for OEM machinery requiring precise actuation.

Compact design (0.87 in. width) fits space-constrained applications.

Advantage Products:

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Many Available just wait for you, feel free to ask to get better deal!!!
