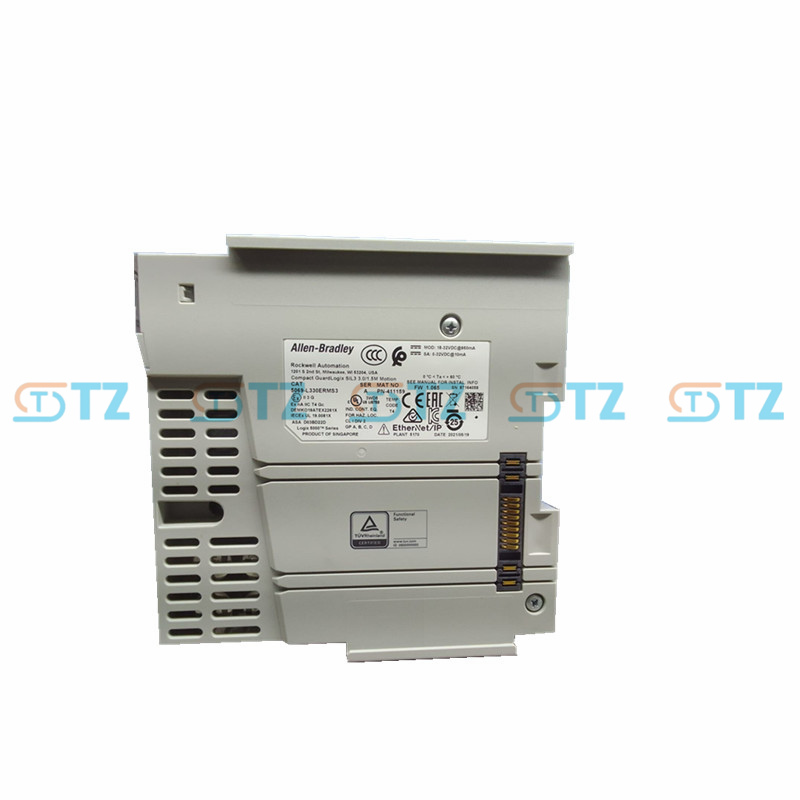

5069-L330ERMS3 Allen Bradley Rockwell CompactLogix Controller

Product parameters

Memory:

User memory: 3 MB (standard application memory).

Safe memory: 1.5MB (for security tasks and logic).

I/O capacity:

Local I/O: Supports up to 31 5069 Compact I/O modules.

Distributed I/O: Supports more distributed I/O modules, with the specific number depending on the network design.

EtherNet/IP node: Supports up to 60 nodes.

I/O throughput: 128,000 packets/second.

Message rate: 2000 messages/second.

Motion control

Motion Axes: Supports up to 256 motion axes, among which 16 can be configured as CIP Drive Axes.

Suitable for integrated motion control applications, such as servo drivers and robots.

Communication interface:

Built-in port:

Two EtherNet/IP ports (supporting 10 Mbps, 100 Mbps, 1 Gbps full-duplex).

One USB 2.0 port (12 Mbps, for programming, configuration and online editing).

Supported network topologies: Linear, star, and Device Level Ring (DLR).

Supported communication protocols:

EtherNet/IP (Supporting CIP secure connection).

Compatibility with other protocols (such as ControlNet, DeviceNet) requires additional modules.

Socket connection: Supports up to 32 socket connections.

Power supply and energy consumption:

Power supply requirements:

MOD power supply: 18-32V DC, 950 mA (SELV/PELV, the module power supply is provided through the 5069 Compact I/O module).

On-site power supply: 0-32V DC or 0-240V AC, 50/60 Hz.

Power consumption: The specific power consumption varies by configuration and is not explicitly provided.

Heat dissipation: Not explicitly provided. Please refer to the technical manual (e.g. 5069-TD001).

Power connection: Use 5069-RTB64-SCREW (screw terminal, stripped wire length 12 mm) or 5069-RTB64-SPRING (spring terminal, stripped wire length 10 mm).

Environmental conditions:

Operating temperature: 0°C to 60°C (32°F to 140°F).

Storage temperature: -40°C to 85°C (-40°F to 185°F).

Relative humidity: 5% to 95% (non-condensing).

Vibration: 2G (10-500 Hz).

Operating impact: 30G.

Non-operational impact: 50G.

EMC standard: Complies with EN 50081-2 and EN 50082-2.

Physical properties:

Installation method: DIN rail installation.

Display screen: Built-in status and fault display screen, providing diagnostic and fault information.

Certification:

Compliant standards: China CCC, Australian RCM, IECEx, ATEX, CE, UL Listed, Korean KC, American Bureau of Shipping (as of February 14, 2025, specific certifications require checking the product labels).

Safety certification: Supports up to SIL 3 and PL e (in compliance with IEC 61508 and EN ISO 13849-1).

Programming and Configuration

Compatible software: Studio 5000 Logix Designer (version 34 or higher, CIP Security is recommended).

Supported programming languages: Relay Ladder, Function Block Diagram, Sequential Function Chart, Structured Text.

Security Task: Supports 1 security task (up to 1000 security programs), using restricted ladder logic (RLL) and specific security instructions.

Other features:

Security task: Only 1 security task is supported, including up to 1,000 programs.

Power cycle: Supports 80,000 power cycles.

CIP Security: Supports device authentication, data integrity and communication confidentiality (Studio 5000 v34 or higher is required).

PlantPAx compatibility: PlantPAx DCS is not supported (only supported by CompactLogix process controllers).

Function

Integration of safety and standard control

5069-L330ERMS3 is the safety controller of the Compact GuardLogix 5380 series, supporting SIL 3 and PL e safety levels, and is suitable for the integration of standard and safety control.

Seamless management of standard logic and security logic is achieved through Studio 5000 Logix Designer without the need to separate standard memory from security memory.

High-performance control

It provides 3 MB of standard memory and 1.5 MB of secure memory, supporting complex security and non-security logic processing.

Supports 256 motion axes (16 CIP drive axes), suitable for high-precision motion control applications.

Communication flexibility

Built-in dual EtherNet/IP ports, supporting 10/100 Mbps and 1 Gbps rates, compatible with linear, star and DLR topologies.

Support CIP Security to ensure device authentication, data integrity and communication confidentiality.

The USB port is used for programming, configuration and online editing, simplifying debugging and maintenance.

Status monitoring and diagnosis

Built-in status and fault display screens provide real-time diagnostic information, facilitating on-site fault investigation.

The SD card stores logs and diagnostic data for analysis purposes (it is recommended to use a 1784-SD2 or higher capacity card).

Support access to detailed diagnostic data through Studio 5000.

Modularization and scalability

Supports up to 31 local 5069 Compact I/O modules and is compatible with other Allen-Bradley distributed I/O platforms.

Support high-performance communication on EtherNet/IP, optimize I/O and device response speed.

User-friendly programming

The Studio 5000 Logix Designer provides a unified programming environment and supports multiple programming languages.

The security task supports restricted ladder logic (RLL) and specific security instructions, simplifying the development of security applications.

Support event-triggered tasks and state change (COS) functions to optimize real-time response.

High reliability

Support CIP Security to enhance network security and prevent unauthorized access.

The design meets the requirements of industrial environments, is resistant to high temperatures, high humidity and vibration, and is suitable for harsh environments.

Application scenarios

Safety-critical applications: Applicable to scenarios requiring SIL 3/PL e safety levels, such as safety interlock systems in the chemical, oil and gas, pharmaceutical, and food and beverage industries.

Manufacturing industry

It is used for safety control in production lines, such as robot systems, conveyor belts or automated assembly lines, to ensure the safety of personnel and equipment.

Support high-precision motion control, such as servo applications for Kinetix 5700 or PowerFlex 755 drivers.

Process control

It is suitable for scenarios that require complex logic and high-performance communication, such as oil refineries or water treatment facilities.

Suitable for medium-scale local I/O control (up to 31 modules).

Distributed control system: Integrated into distributed I/O systems via EtherNet/IP networks, it is suitable for large factories or remote monitoring applications.

System migration: Applicable to users who migrate from old controllers such as SLC 500, CompactLogix 1768-L43x, L45x or 1769-L32E, L35E to the Compact GuardLogix 5380 series, simplifying the upgrade process.
