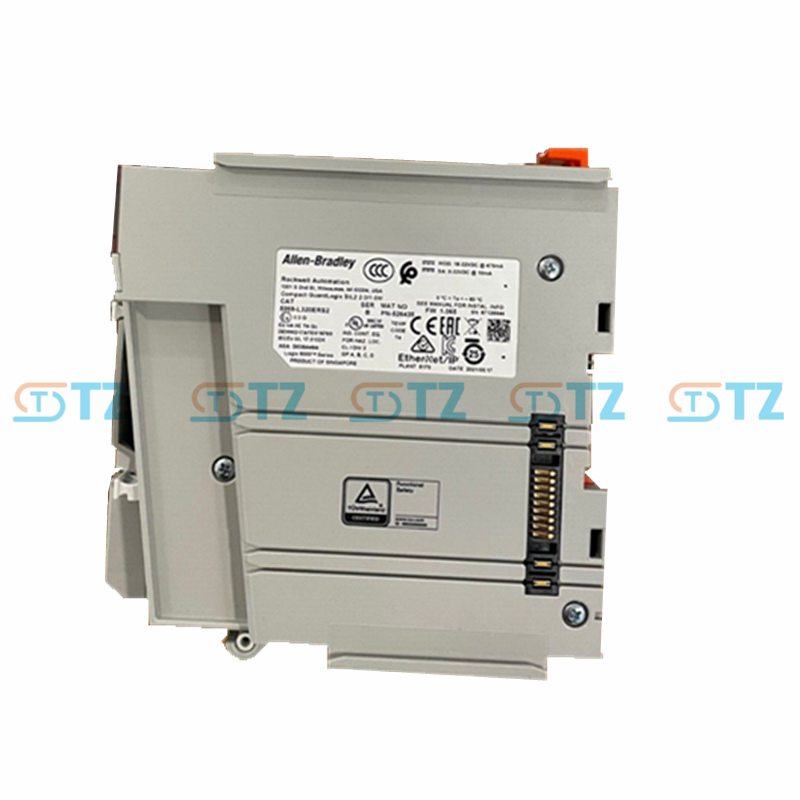

5069-L320ERS2 Allen Bradley Rockwell CompactLogix Controller

Product parameters

Controller type: Compact GuardLogix 5380 Safety Controller, SIL 2/PLd

Memory:

Standard user memory: 2 MB

Safe memory: 1 MB

Task support:

Maximum number of tasks: 32 (31 standard tasks + 1 security task)

Number of programs per task: up to 1000

Communication interface:

Two Ethernet /IP ports (10 Mbps, 100 Mbps, 1 Gbps, full-duplex)

One USB 2.0 port (programming/configuration, 12 Mbps)

Network support

Maximum Ethernet /IP node: 40

Maximum socket interface: 32

Network topology: Linear, Star, Device-level Loop (DLR)

Support the CIP Safety protocol for safe data transmission

I/O support:

Maximum local I/O modules: 16 (compatible with 5069 Compact I/O)

Distributed I/O: via 5069-AEN2TR or 5069-AENTR

I/O capacity: 128,000 data packets per second

Power supply:

Module Power supply (MOD Power) : 18-32 V DC (SELV/PELV), maximum current 475 mA, surge current 850 mA (125 ms)

Maximum power supply current: 9.55A (DC)

Power consumption:

Maximum power consumption: 8.5 W

Maximum heat dissipation: 29 BTU/hr

Installation: DIN rail (EN50022, 35 x 7.5mm, horizontal installation)

Environmental conditions:

Operating temperature: 0°C to 60°C (32°F to 140°F)

Storage temperature: -40°C to 85°C (-40°F to 185°F)

Relative humidity: 5% to 95% (no condensation)

Vibration: 5 g (10-500 Hz)

Impact: 30 g during operation, 50 g during non-operation

Shell: Open type (requires a protective cabinet)

Programming language: IEC-61131-3 (Ladder Diagram LD, Function Block Diagram FBD, Structured Text ST, Sequential Function Diagram SFC)

Safety function: SIL 2/PLd, supporting CIP Safety protocol

Certification:

EMC (EN 50081-2, EN 50082-2)

China CCC, Australian RCM, ATEX, IECEx, Eurasian Economic Community (Latest certification 2024-09-17,)

Function

Integrated security control

Supports SIL 2/PLd and is suitable for safety applications that do not require fault tolerance (such as emergency stop, safety door monitoring).

1 MB of safe memory, running independent Safety tasks, and transmitting safety data through the CIP Safety protocol.

High-performance task processing

Supports 32 tasks (31 standard + 1 secure), with a maximum of 1000 programs per task.

2 MB standard memory + 1 MB secure memory to meet complex control requirements.

Flexible network connection

Dual Ethernet /IP ports (1 Gbps), supporting linear, star, and DLR topologies, 40 nodes, and 32 sockets.

The USB 2.0 port is used for programming/debugging (12 Mbps).

Modular I/O expansion

Supports 16 local I/O modules (5069 Compact I/O), and distributed I/O is via 5069-AEN2TR/AENTR.

The I/O capacity reaches 128,000 data packets per second.

Programming and Configuration

Use Studio 5000 Logix Designer (version 31 or higher), supporting LD, FBD, ST, and SFC.

Support event triggering and flexible task scheduling.

Safety and Diagnosis:

It provides change detection, logging, encrypted firmware, and role-based access control (RBAC).

Status indicators, fault reports, module suppression, and electronic keys facilitate diagnosis.

Environmental adaptability

Open shell, requires protection of the cabinet, resistant to vibration (5 g) and shock (when operating at 30 g).

Limitation: Integrated motion control is not supported.

Application scenarios

Manufacturing Automation

Control the production line and assembly line, and combine safety functions (such as emergency stop).

Suitable for small and medium-sized factories, it meets the requirements of 16 I/O modules.

Process control

It is applied in the chemical, pharmaceutical, food and beverage industries to ensure the safe operation of process equipment.

SIL 2/PLd meets the medium safety requirements.

Material handling

Used for conveyor belts and sorting systems, it supports safety control.

The DLR topology ensures network reliability.

Distributed control

Distributed I/O control is achieved through Ethernet /IP, which is suitable for cross-regional equipment management.

Support the 5069-AEN2TR/AENTR extension.

OEM equipment integration

Provide compact and safety control solutions for Oems and integrate them into custom machinery.

Multilingual programming simplifies development.

Energy and Public Utilities: Control water treatment and power distribution equipment to ensure safety and compliance.
