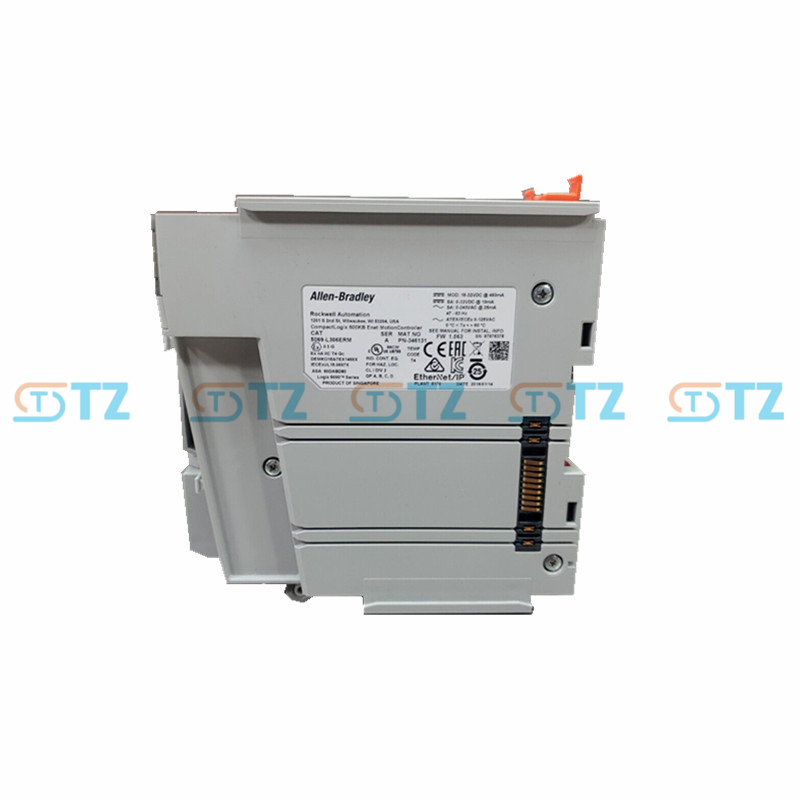

5069-L306ERM Allen Bradley Rockwell CompactLogix Controller

Product parameters

Module Type: CompactLogix 5380 Programmable Automation Controller (PAC)

User memory: 0.6MB (user program memory) + 0.3MB (safe memory)

Communication interface:

2 Ethernet ports (supporting 10 Mbps, 100 Mbps, 1 Gbps, full-duplex)

One USB 2.0 port (Type B, maximum transfer rate 12 Mbps)

EtherNet/IP nodes: Supports up to 16 Ethernet /IP nodes at most

Local I/O module: Supports up to 8 5069 Compact I/O modules at most

Motion control: Supports 2 integrated motion axes, with a maximum support of 256 motion axes

Task support: Up to 32 tasks, each task supports 1000 programs, and all event triggers are supported

Programming language: Supports ladder diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Diagram (SFC)

Power supply:

Module Power supply (MOD Power) : 18-32 VDC, maximum current 450 mA, maximum current rated value 9.55 A, surge current 850 mA (lasting for 125 ms)

Field Power supply (SA Power) : 0-32 VDC (up to 10 mA), 0-240 VAC (47-63 Hz, up to 25 mA, ATEX/IECEx up to 125 VAC)

Working environment

Temperature: 0 to 60°C (32 to 140°F)

Relative humidity: 5-95% (no condensation)

Maximum altitude: 2000 meters

Pollution level: 2

Overvoltage category: II (IEC 60664-1)

Installation method: DIN rail (Horizontal installation only)

Certifications: CE, cULus, ATEX/IECEx (Ex nA IIC T4 Gc), China CCC, Australian RCM, Registro Italiano Navale

Terminal: Detachable terminal blocks (RTB) need to be purchased separately, such as 5069-RTB64-SCREW (screw type, stripped wire length 12 mm) or 5069-RTB64-SPRING (spring type, stripped wire length 10 mm)

Function

High-performance control: Supports multi-tasking (32 tasks, 1000 programs/tasks), suitable for complex automation control, and meets the requirements of small to medium-sized applications.

EtherNet/IP Integration: Dual Ethernet ports support linear, star and device-level ring (DLR) topologies, providing high-speed data exchange and distributed I/O control, and supporting CIP secure connection (Studio 5000 Logix Designer® v34 or higher version).

Motion control: Equipped with 2 built-in motion axes, it supports up to 256 motion axes and is suitable for high-performance motion applications (such as position loop control).

Safety features: 0.3MB of secure memory, supports security tasks, complies with EN ISO 13849-1 Cat.3 PLd and EN61508 SIL2 standards, suitable for safety-critical applications.

Memory management: 0.6MB of user memory, equipped with energy storage solution, no battery required; It comes standard with a 2GB SD card and can be expanded up to 32GB.

Programming flexibility: Supports LD, ST, FBD, and SFC programming languages, and uses Studio 5000 Logix Designer to optimize system design and debugging efficiency.

Diagnosis and Status: Equipped with LED indicator lights to display the status and faults of the controller, facilitating monitoring and diagnosis.

Modular design: Supports up to 8 local I/O modules, is compatible with the Compact 5000 I/O series, and is easy to expand.

Application scenarios

Small and medium-sized automation systems: Suitable for small and medium-sized applications with low memory requirements and a small number of nodes (16 Ethernet /IP nodes), such as packaging machines and material handling.

Distributed control: Through the EtherNet/IP network, as a distributed I/O controller, it is applied in CompactLogix 5380 or ControlLogix 5580 systems (such as in manufacturing, logistics).

Motion control: Supports 2 motion axes, suitable for small robots, assembly lines or applications requiring precise motion.

Safety-critical applications: Provide support for safety tasks and are suitable for scenarios such as food and beverage, and pharmaceuticals that require high reliability or safety standards.

Hazardous environment: Equipped with an IP54 protective housing, it complies with ATEX/IECEx standards and is suitable for use in petrochemical, energy and other places.

Factory Automation: Integrating FactoryTalk software and Logix devices, suitable for industrial scenarios with high real-time control (such as production lines and process control)
