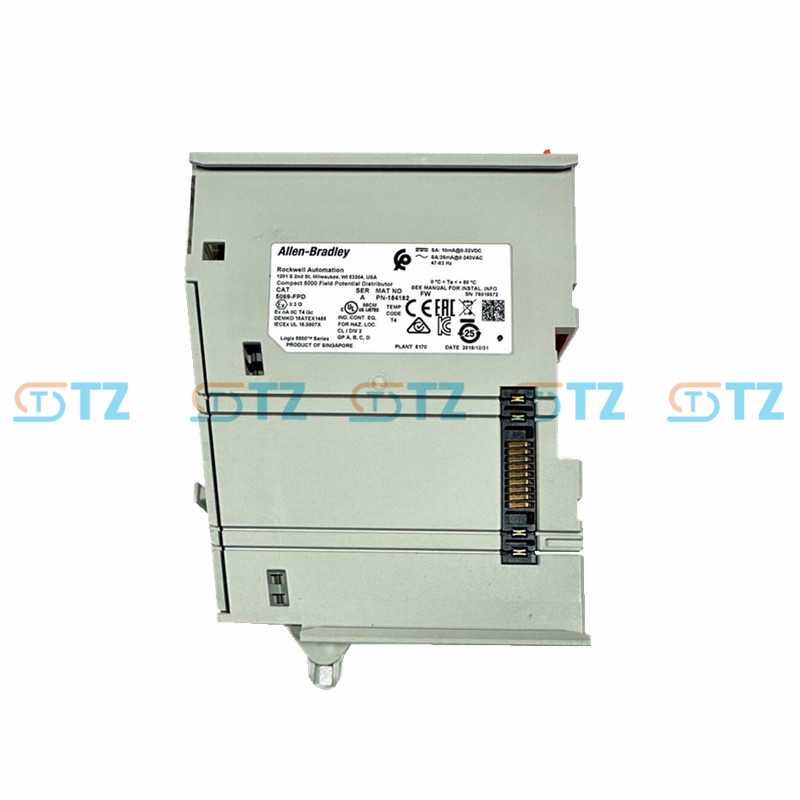

5069-FPD Allen Bradley Rockwell Compact I/O Field Potential Distributor Module

Product parameters

Module type: Compact 5000 I/O Field Potential Distributor (FPD)

Module Power supply (MOD Power)

Current: 45 mA @ 18-32 VDC

Power consumption: 1.0W

Heat dissipation: 3.4 BTU/h

Power Passthrough:

MOD Power: 9.55A @ 18-32 VDC

Shell type: Open-Style

Installation method: DIN rail

Working environment

Temperature: 0 to 60°C (32 to 140°F)

Relative humidity: 5-95% (no condensation)

Maximum altitude: 2000 meters

Pollution level: 2

Overvoltage category: II (IEC 60664-1)

Certification: CE, cULus, ATEX/IECEx (Ex nA IIC T4 Gc, Certificate number DEMKO 15 ATEX 1455X)

Terminal: Detachable terminal blocks (RTB) need to be purchased separately, compatible with 5069-RTB6-SCREW (screw type, stripped wire length 12 mm) or 5069-RTB6-SPRING (spring type, stripped wire length 10 mm)

Communication: Supports EtherNet/IP networks and serves as local or distributed I/O for CompactLogix 5380, 5480 or ControlLogix 5580 (via 5069-AEN2TR or 5069-AENTR adapters)

Function

Power distribution: Interrupt the left SA power bus and establish a new isolated SA power bus to provide additional power (up to 10 mA) for the right module, supporting more I/O modules.

Isolation design: By isolating the SA power supply, it reduces power interference, enhances system reliability, and is suitable for multi-power supply configurations.

Modular integration: Supports Compact 5000 I/O system, single-slot design, supports up to 31 I/O modules at most, and is easy to expand.

Status indication: Equipped with an LED indicator light to show the power status, facilitating monitoring and fault diagnosis.

Safety and compliance: Compliant with ATEX/IECEx standards, suitable for hazardous locations (power off operation is required to prevent arc explosion).

Flexible installation: DIN rail installation, open housing requires at least IP54 protection level, suitable for industrial environments.

Application scenarios

Power expansion: Provide additional SA power for I/O modules, suitable for large-scale automation systems with current consumption exceeding 10 mA.

Distributed control: Through the EtherNet/IP network, it is applied as distributed I/O in the CompactLogix 5380, 5480 or ControlLogix 5580 systems.

High-reliability system: Reduces interference through power isolation and is suitable for continuous industrial processes.

Hazardous environment: With appropriate enclosures, it complies with ATEX/IECEx standards and is suitable for hazardous locations such as petrochemical and natural gas industries.

Modular design: Optimize power distribution and support flexible expansion control systems.
