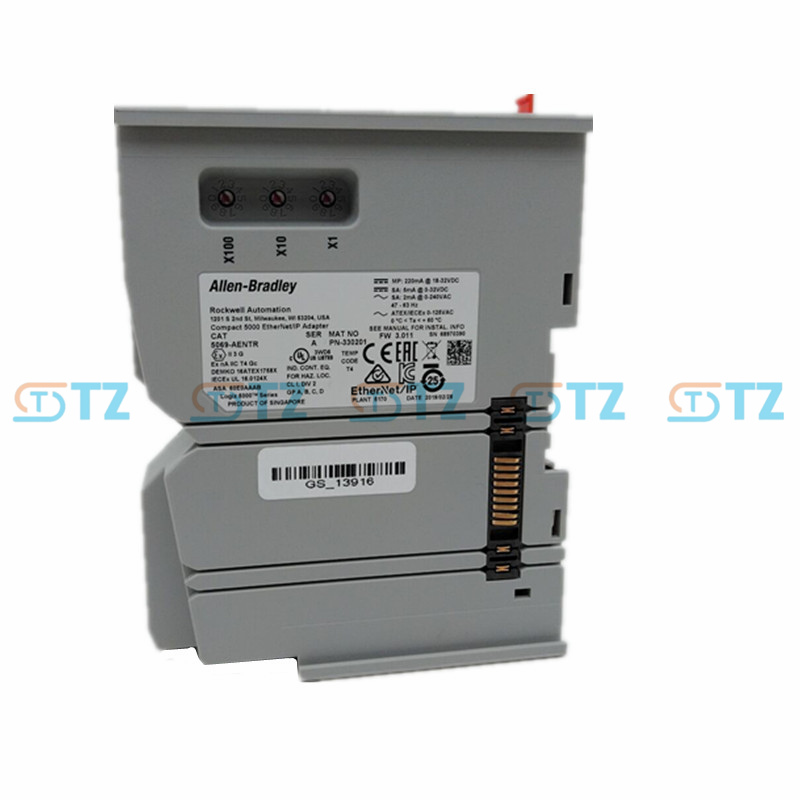

5069-AENTR Allen Bradley Rockwell Compact I/O Slim EtherNet/IP Adapter

Product Parameters

Model: 5069-AENTR

Type: Compact 5000 EtherNet/IP Adapter

Communication Protocol: EtherNet/IP (TCP/IP and UDP/IP), supports Common Industrial Protocol (CIP)

Ports:

2 RJ45 Ethernet ports (10/100 Mbps and 1 Gbps, full/half duplex)

1 USB port (for configuration, not for permanent connection)

Communication Rates: 10 Mbps, 100 Mbps, 1 Gbps

Connection Capacity: Supports up to 31 Compact 5000 I/O modules

Network Topologies: Linear, Star, Device Level Ring (DLR)

Power Specifications:

MOD Power: 220 mA @ 18–32V DC;   Inrush: 1750 mA for 70 ms

MOD Power Passthrough: 9.78 A @ 18–32V DC

SA Power: 5 mA @ 0–32V DC;   2 mA @ 0–240V AC (47–63 Hz, ATEX/IECEx, 125V AC max)

SA Power Passthrough: 9.95 A @ 0–32V DC;   9.975 A @ 0–240V AC (47–63 Hz, ATEX/IECEx, 125V AC max)

Overcurrent Protection:

SA Power: 20 A @ 250V AC

MOD Power: 10–12 A @ 22.5–43.2 A²t

Isolation Voltage: 300V (continuous), tested at 1500V AC for 60 s

Wire Size:

Signal: 22–14 AWG solid/stranded copper, rated at 221°F (105°C), 1.2 mm (3/64 in.) insulation

Grounding: 14 AWG solid/stranded copper, rated at 221°F (105°C), 3.5 mm (0.14 in.) max diameter

Terminal Block: Requires 5069-RTB5-SPRING or 5069-RTB5-SCREW

SD Card Compatibility: 1784-SD1 (1 GB), 1784-SD2 (2 GB);   up to 32 GB (third-party SD cards not guaranteed)

Operating Temperature: 0°C to +60°C (32°F to +140°F)

Storage Temperature: -40°C to +85°C (-40°F to +185°F)

Relative Humidity: 5–95% non-condensing

Enclosure: None (open-style)

Certifications: CE, CSA, CUL, KC, RCM, UL, ATEX, IECEx

Functions

EtherNet/IP Connectivity: Acts as a gateway between Logix controllers and Compact 5000 I/O modules, supporting high-speed data transfer over EtherNet/IP.

Dual-Port Switch: Features two Ethernet ports with embedded switch technology, supporting Linear, Star, and DLR topologies for flexible, redundant network designs.

DLR Supervisor: Can be configured as a Device Level Ring supervisor for high-availability networks, with protected and unprotected modes.

Power Supply: Provides system-side (MOD) and field-side (SA) power to connected I/O modules, with separate power inputs for better isolation.

Configuration: Supports configuration via Studio 5000 Logix Designer and optional SD card (1784-SD1/SD2) for storing settings;   USB port for initial setup.

Diagnostics: Enhanced status indicators and diagnostic tools for monitoring and troubleshooting network and module performance.

High I/O Capacity: Supports up to 31 I/O modules, ideal for large distributed I/O systems.

Compact Design: Slim form factor (22 mm wide) for space-constrained applications.

Application Scenarios

Manufacturing Automation: Connects CompactLogix 5380, Compact GuardLogix 5380, or ControlLogix 5580 controllers to distributed I/O in automotive or electronics assembly lines for real-time control.

Process Control: Used in industries like oil and gas, chemical, or food and beverage to manage distributed I/O modules for precise process monitoring and control.

Material Handling: Supports conveyor systems, automated guided vehicles (AGVs), or packaging equipment with high-speed communication to I/O devices.

HMI/SCADA Integration: Facilitates data exchange with HMIs or SCADA systems for real-time visualization in industrial plants.

High-Availability Systems: Leverages DLR topology for redundant networks in critical applications like power generation or water treatment.

Compact Systems: Ideal for applications with limited panel space due to its slim design, supporting up to 31 I/O modules.
