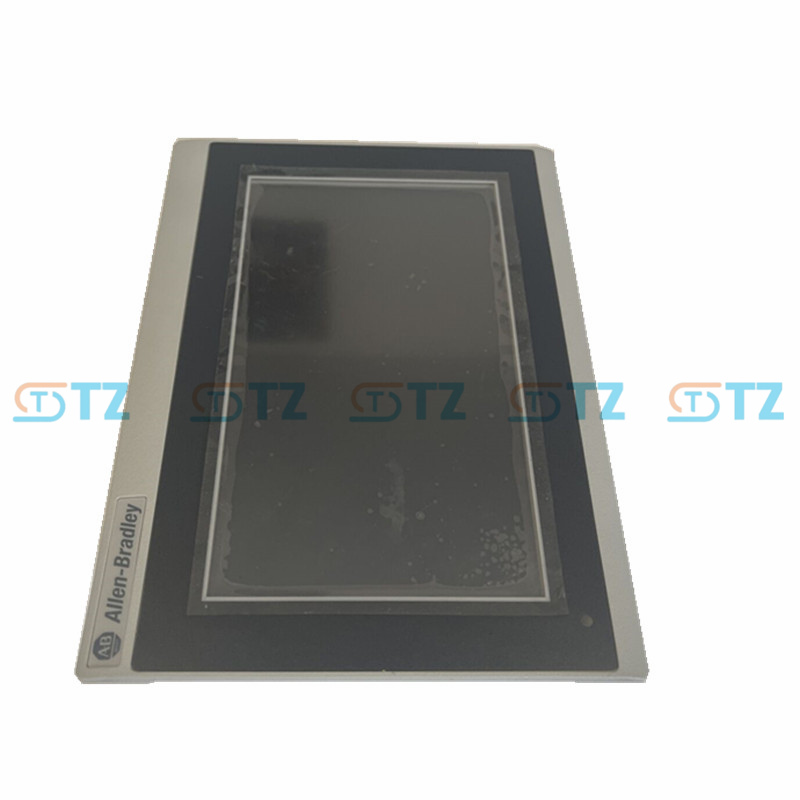

2711R-T7T Allen Bradley Rockwell 7 Inch PanelView PanelView 800 HMI Terminal

Product Parameters

Display screen: 7-inch color TFT LCD display, widescreen format, resolution 800 x 480 pixels (WVGA), supports 65,536 colors, display area approximately 153.6 x 86.6 mm (6.05 x 3.41 inches).

Input method: Touch screen (analog resistive type, rated life up to 1 million touch operations, operating force 100g).

Power supply: External 18-32VDC power supply (nominal 24VDC), maximum power consumption 11W (0.40A@24VDC), heat dissipation 34 BTU/ hour.

Communication interface: 1 EtherNet port (10/100 Mbps, RJ45, supporting EtherNet/IP protocol).

One RS-232 port (supporting DF1, DH-485, MODBUS, MODBUS ASCII, MODBUS Unicode, Allen-Bradley CIP protocol).

One RS-422/RS-485 port.

One USB 2.0 device port (for connecting a PC or other devices).

1 microSD card slot (supports SDSC, Class 6 or Class 10 SDHC microSD cards, FAT32/16 format, up to 32GB).

Memory: Random Access Memory (RAM) : 256 MB DDR.

Non-volatile storage (Flash) : 256 MB (approximately 128 MB of available user memory).

Operating system: Embedded system based on Windows CE.

Processor: 800 MHz processor.

Backlight: LED backlight, with a lifespan of approximately 40,000 hours (at 25°C).

Real-time clock: Built-in battery support, minimum lifespan 5 years (25°C).

Environmental conditions: Operating temperature: 0 to 50°C.

Storage temperature: -25 to 70°C.

Relative humidity: 5-95% (no condensation).

Maximum operating altitude: 2,000 meters.

Working vibration: 2G (10-500 Hz).

Work impact: 15G, non-work impact: 30G.

Protection class: NEMA/UL Type 4X, 12, 13, IP65.

Certification: C-UL-US (Class I/II/III, Division 2, Groups A, B, C, D, F, G), CE, C-Tick, in compliance with Australian radio communication regulations.

Functions

Human-machine Interface (HMI) : It offers a 7-inch color wide-screen display, supporting both dynamic and static graphical interfaces, showing device status, trend charts, and alarm information, making it suitable for medium-sized automation applications.

Touch interaction: The analog resistive touch screen supports direct touch control operation, which can be operated with gloves or a stylus, making it suitable for quick control and data input.

Communication function: The EtherNet interface supports the EtherNet/IP protocol and is compatible with Allen-Bradley MicroLogix, CompactLogix, SLC 500, PLC-5 and Micro 800 controllers.

The RS-232 and RS-422/RS-485 ports support multiple protocols (such as DF1, DH-485, MODBUS, etc.) and are suitable for small or traditional control systems.

The USB port supports PC connection or firmware upgrade, and the microSD slot supports external storage, making it suitable for logging and application backup.

Software support: Configured using Connected Components Workbench (CCW) software (version 8.00 or higher), supporting offline development and rapid debugging, compatible with simplified features of FactoryTalk View Machine Edition.

Enhanced features: Supports multi-language display to enhance operational flexibility.

It comes with 50 built-in formula files and supports the upload and download of parameter Settings.

Supports VNC remote monitoring and FTP server, facilitating remote access and data transmission.

The alarm function supports embedded variable alarm messages to alert the operator of system faults or abnormalities.

Real-time clock: Built-in battery supports timestamp function, suitable for data recording and event tracking.

Application Scenarios

Medium-sized automation system: Suitable for medium-sized equipment or systems, such as packaging machines, material handling systems or small production lines. The 7-inch color wide-screen display is suitable for complex graphics and multi-state monitoring.

Factory monitoring and operation: It is used for real-time monitoring of equipment status, parameter adjustment or alarm response in workshops. The touch screen provides an intuitive operation interface and is suitable for scenarios that require a high amount of information.

Traditional or legacy systems: Compatible with old control systems through RS-232/RS-422/RS-485 interfaces, suitable for maintaining or upgrading existing industrial networks.

Cost-sensitive applications: Its compact design and multi-functional communication make it suitable for scenarios with limited budgets but high display quality requirements, such as water treatment, HVAC systems, or small manufacturing equipment.

Harsh industrial environment: Compliant with IP65 and NEMA 4X standards, suitable for dust, water spray or vibration environments (appropriate protection required).

Data recording and integration: Supports integration with PLCS or external devices via Ethernet, USB and microSD, making it suitable for scenarios requiring data transmission, formula management and remote monitoring, such as the pharmaceutical, food and beverage or energy industries.
