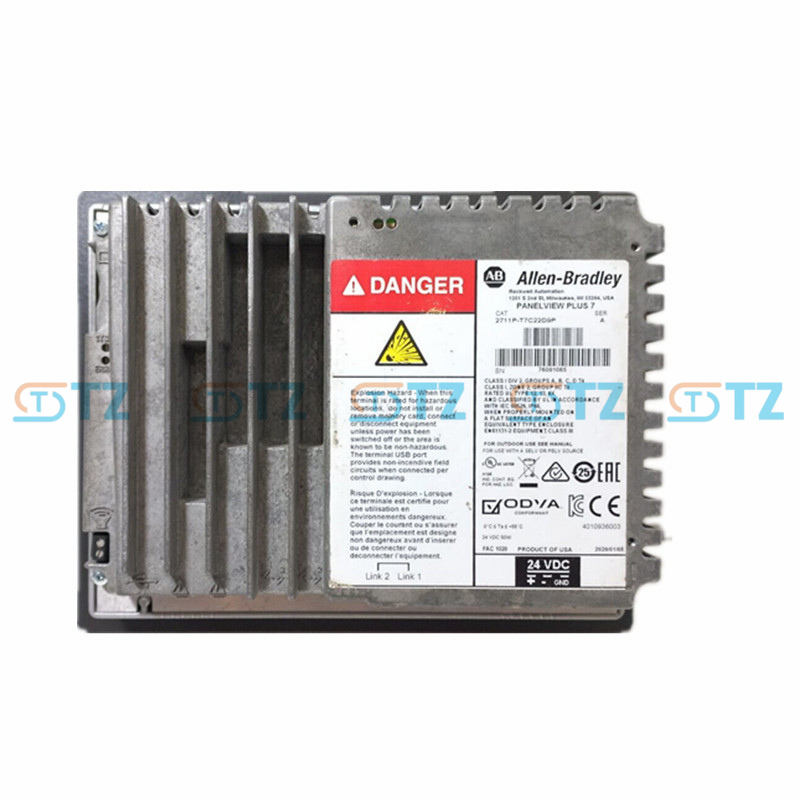

2711P-T7C22D9P Allen Bradley Rockwell 7 Inch PanelView Plus 7 Performance Terminal

Product parameters

Model: 2711P-T7C22D9P

Type: PanelView Plus 7 Performance Edition Operating Terminal

Display screen: 6.5-inch TFT LCD, color, 18-bit color graphics

Resolution: 640 x 480 VGA

Display area: 132 x 99 mm (5.2 x 3.9 inches)

Touch screen: Analog resistive touch screen, 100 grams of operating force, 1 million press life

Brightness: 300 nits

Backlight: LED backlight (non-replaceable), minimum lifespan 50,000 hours (half brightness at 40°C)

Communication ports: 2 Ethernet ports (10/100 Mbps, auto-negotiated, supporting linear, star and DLR topologies)

2 USB ports (2.0 high-speed, Type A for external storage, mouse or keyboard)

Memory: 512 MB RAM

512 MB storage

80 MB non-volatile user storage

Power supply: 18-30VDC (nominal 24VDC), maximum power consumption 50W (2.08A@24VDC)

Real-time clock: Battery support (CR2032 lithium battery), accuracy ±2 minutes per month, lifespan approximately 4 years (25°C)

Installation: Embedded installation, panel opening size 142 x 184 mm (5.59 x 7.24 inches)

Protection class: NEMA/UL Type 12, 13, 4X (for indoor use), IP54 or IP66 (appropriate enclosure required)

Operating temperature: 0°C to +55°C

Storage temperature: -25°C to +70°C

Impact: 15G at runtime (11 milliseconds), 30G at non-runtime (11 milliseconds)

Certifications: CE, CUL, UL, KC, RCM, EAC, RoHS, CCC, ATEX Zone 2/22, IECEx, INMETRO, C-TICK, KCC (as of June 2025)

UPC: 885630844480

Operating system: Windows CE (including FactoryTalk View Machine Edition runtime environment)

Function

Visualization and Interaction: 6.5-inch color TFT LCD screen, supporting 640 x 480 VGA resolution, 18-bit color graphics, 4:3 aspect ratio, suitable for dynamic graphic display in small and medium-sized applications.

Analog resistive touch screen, supporting operation with gloves on or using plastic pen tips, 1 million press life, 100 grams of operating force, and gesture control support.

Communication and Integration: Dual EtherNet ports support EtherNet/IP protocol, supporting linear, star and DLR topologies, and can be integrated with PLCS (such as ControlLogix, CompactLogix) and other devices.

Two USB ports support external storage devices (such as USB flash drives) as well as peripherals like mice and keyboards.

Supports VNC and FactoryTalk ViewPoint, allowing for remote monitoring and control over Ethernet.

Data Management: Supports SD card expansion storage (compatible with 1784-SD1 1GB, 1784-SD2 2GB, 1784-SDHC8 8GB, 1784-SDHC32 32GB) for rapid replication and recovery of applications.

It is equipped with 512 MB of RAM, 512 MB of storage and 80 MB of non-volatile storage, supporting application and data storage.

Advanced features: Supports File Transfer Protocol (FTP), VNC client/server, ActiveX controls and PDF reader, enhancing functional scalability.

It provides real-time notification functions (email and text messages) and supports connection to third-party devices.

Supports up to 4 controllers, 100 screens and 500 alarms (FactoryTalk Machine Edition 9.0).

Reliability and maintenance: Non-volatile storage ensures data security, and battery-supported real-time clocks provide reliable timestamps.

The backlight has a long lifespan (50,000 hours), making it suitable for long-term operation.

It provides diagnostic and reset switches for easy maintenance and troubleshooting.

Application scenarios

Small and medium-sized automation systems: The 6.5-inch screen is suitable for small and medium-sized applications, such as packaging machines, pumping stations or material handling systems, providing detailed process simulation displays.

Factory workshop monitoring: Real-time monitoring of equipment status, process parameters and alarm information, integrated into PLC or SCADA systems.

High availability network: Dual Ethernet ports support DLR topology, suitable for critical applications that require network redundancy, such as production line control.

Remote access: Supports remote monitoring via Ethernet and VNC, suitable for distributed control systems (DCS) or scenarios requiring remote diagnosis.

Manufacturing: Widely applied in industries such as automobiles, food and beverages, and pharmaceuticals, it offers dynamic visualization and intuitive operation.

Harsh environment: Protection grade (IP54/IP66, with appropriate enclosure required) Suitable for indoor industrial environments, such as dusty or humid workshops.
