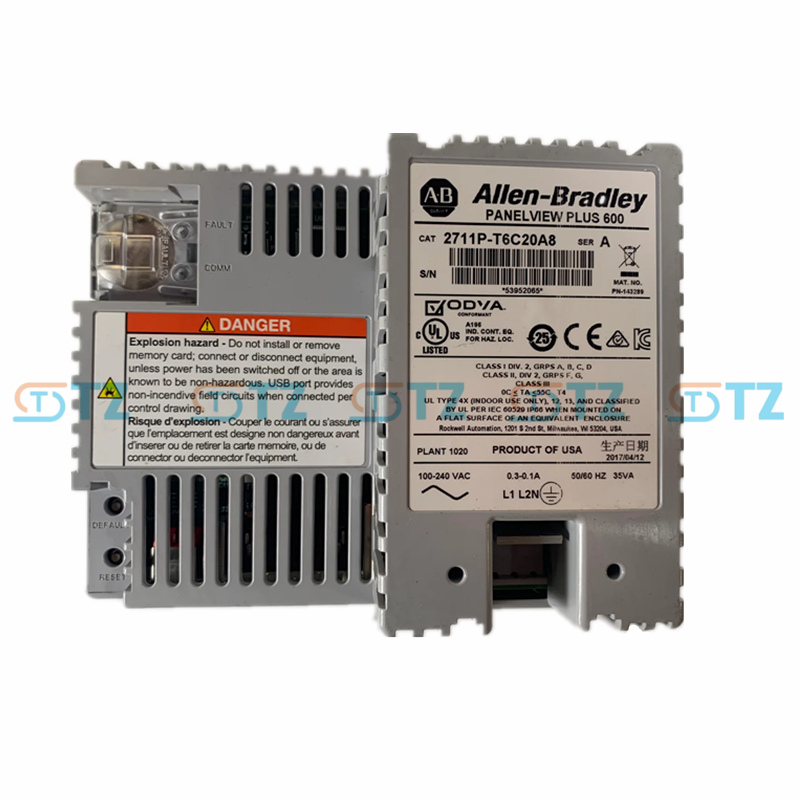

2711P-T6C20A8 Allen Bradley Rockwell 600 Model PanelView Plus 6 Terminal

Product parameters

Display screen: 5.7-inch color TFT LCD, 320 x 240 VGA resolution, 18-bit color graphics, display area 115 x 86 mm (4.5 x 3.4 inches), brightness 440 cd/m² (nit), CCFL backlight.

Input interface: Analog resistive touch screen (supporting approximately 1 million presses, operating force 100 grams).

Power supply: 100-240V AC (47- 63Hz), maximum power consumption 70W, heat dissipation approximately 240 BTU/ hour.

Memory: 256MB RAM, 512MB non-volatile storage, approximately 73MB available user storage, supports SD card expansion (compatible with 1784-SDx/SDHCx).

Communication interface: 1 EtherNet port (10/100 Mbps, supporting Ethernet /IP, MDI/MDI-X), 1 RS-232 port (supporting DF1, DH-485 protocols, short-range communication ≤15 meters), 2 USB 2.0 host ports, 1 USB device port.

Real-time clock: Battery support (CR2032 lithium battery, with a lifespan of at least 4 years and an accuracy of ±2 minutes per month).

Environmental conditions: Operating temperature: 0-55°C (32-131°F)

Storage temperature: -25-70°C (-13-158°F)

Relative humidity: 5-95% (no condensation)

Maximum working altitude: 2,000 meters (no demotion)

Vibration resistance: 2G (57-500Hz), shock resistance: 15G (in operation) / 30G (out of operation)

Protection class: NEMA/UL Type 12, 13, 4X, IP66 (needs to be installed in a cabinet of equivalent protection class).

Certifications: cUL-us, CE, RCM, RoHS, KCC.

Operating system: Windows CE 6.0 (Professional Edition).

Function

Human-machine Interaction (HMI) : It provides a real-time monitoring and control interface through touch screen operation, supporting dynamic and static color graphics, facilitating parameter viewing and machine status management.

Connectivity: Supports communication with devices such as PLCS and PACS via EtherNet/IP networks. RS-232 is used for short-distance point-to-point connections and supports VNC remote viewing, FTP file transfer, and ActiveX controls.

Storage and Expansion: Built-in 512MB storage, supports SD card and USB flash memory expansion, convenient for storing applications, logs and user manuals.

Advanced features: Support Microsoft Office file viewing (Word, Excel, PowerPoint, Wordpad), and configure security and graphical interface through FactoryTalk View Machine Edition software (version 6.10 or higher).

Application scenarios

Industrial automation: It is used in the automation systems of small and medium-sized factories to monitor and control production line equipment, such as PLC-controlled machinery, conveying systems or processing equipment.

Process control: Applicable to small and medium-sized process control scenarios, such as food and beverage, pharmaceutical, chemical and other industries, it is used to display and adjust process parameters.

Machine status monitoring: Provides real-time status feedback and is suitable for the operation interface of devices that require touch screen interaction.

Harsh environment: High protection level, suitable for use in dusty, damp or slightly corrosive environments (such as manufacturing plants, packaging workshops).
