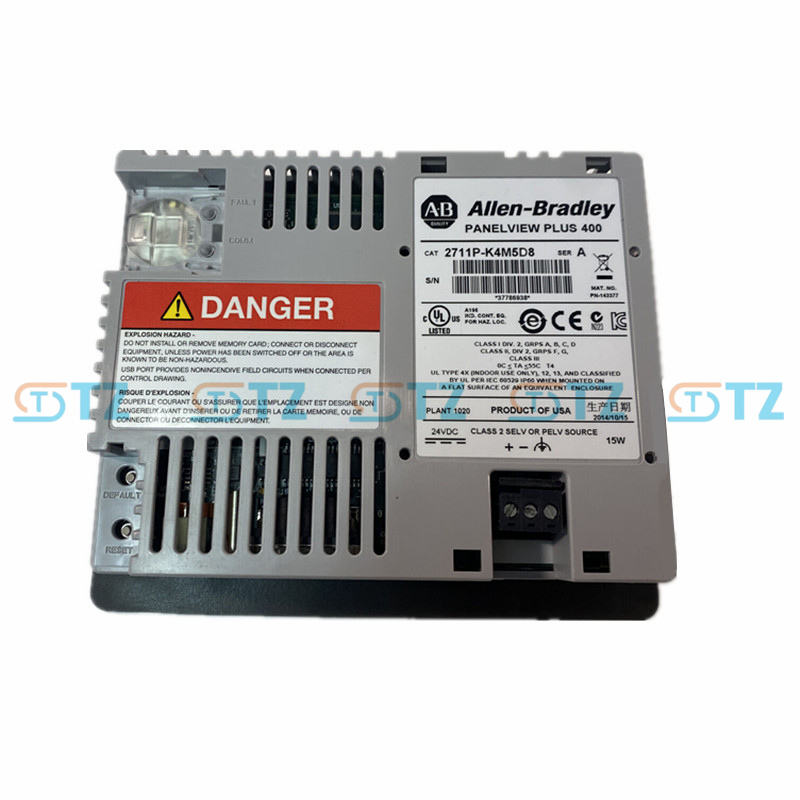

2711P-K4M5D8 Allen Bradley Rockwell 400 Model PanelView Plus 6 Terminal

Product parameters: Display: 3.5-inch monochrome TFT LCD, 320 x 240 QVGA resolution, 16 levels of grayscale, display area 70 x 53mm (2.8 x 2.3 inches), brightness 300 cd/m² (nit), CCFL backlight (lifespan approximately 25,000 hours, non-replaceable).

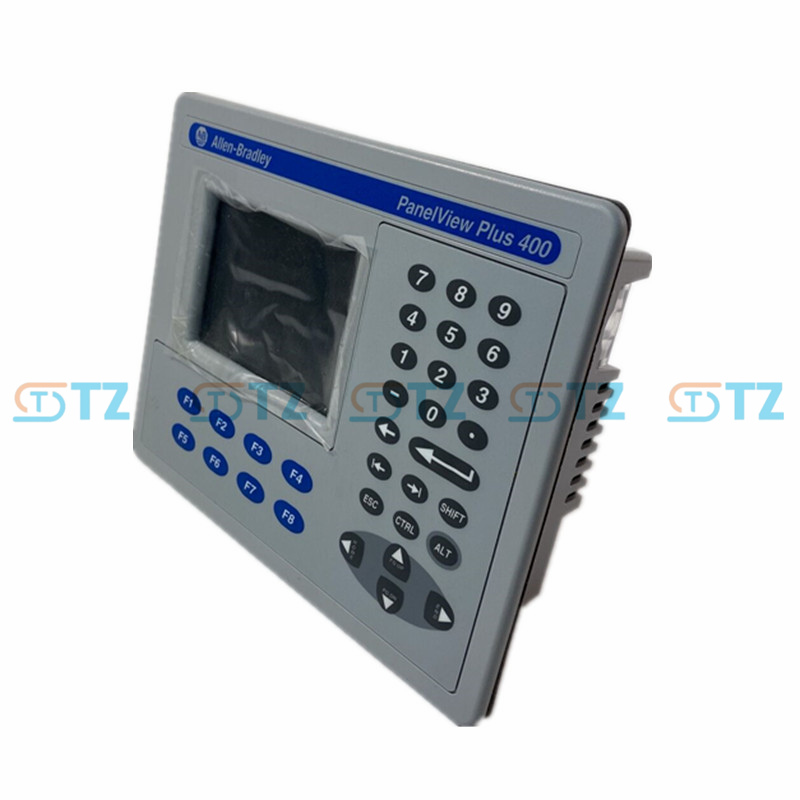

Input interface: Keyboard (including 8 programmable function keys F1-F8, number and navigation keys).

Power supply: 18-32V DC, maximum power consumption 70W (2.9A at 24V DC), heat dissipation approximately 240 BTU/ hour.

Memory: 256MB RAM, 512MB non-volatile storage, approximately 73MB available user storage, supports SD card expansion (compatible with 1784-SD1 and 1784-SD2).

Communication interface: 1 RS-232 port (supporting DF1 and DH-485 protocols, short-range communication ≤15 meters), 1 USB 2.0 host port, 1 USB device port.

Real-time clock: Battery support (CR2032 lithium battery, with a lifespan of at least 4 years and an accuracy of ±2 minutes per month).

Environmental conditions: Operating temperature: 0-55°C (32-131°F)

Storage temperature: -25-70°C (-13-158°F)

Relative humidity: 5-95% (no condensation)

Maximum working altitude: 2,000 meters (no demotion)

Vibration resistance: 2G (57-500Hz), shock resistance: 15G (in operation) / 30G (out of operation)

Protection class: NEMA/UL Type 12, 13, 4X, IP66 (needs to be installed in a cabinet of equivalent protection class).

Certifications: cUL-us, CE, RCM, RoHS, KCC.

Operating system: Windows CE 6.0 (Professional Edition).

Function

Human-machine Interaction (HMI) : It provides a real-time monitoring and control interface through keyboard operation, supports monochrome graphic display, and is convenient for parameter viewing and machine status management.

Connectivity: The RS-232 port supports point-to-point communication with devices such as PLCS and PACs, and supports VNC remote viewing, FTP file transfer, and ActiveX controls.

Storage and Expansion: Built-in 512MB storage, supports SD card and USB flash memory expansion, convenient for storing applications, logs and user manuals.

Advanced features: Support Microsoft Office file viewing (Word, Excel, PowerPoint, Wordpad), and configure security and graphical interface through FactoryTalk View Machine Edition software (version 6.10 or higher).

Application scenarios

Industrial automation: It is used in the automation systems of small factories to monitor and control production line equipment, such as PLC-controlled machinery, conveying systems or processing equipment.

Process control: Applicable to small-scale process control scenarios, such as in the food and beverage, pharmaceutical, and chemical industries, it is used for displaying and adjusting process parameters.

Machine status monitoring: Provides real-time status feedback and is suitable for device operation interfaces that require compact keyboard interaction.

Harsh environment: High protection level, suitable for use in dusty, damp or slightly corrosive environments (such as manufacturing plants, packaging workshops).
