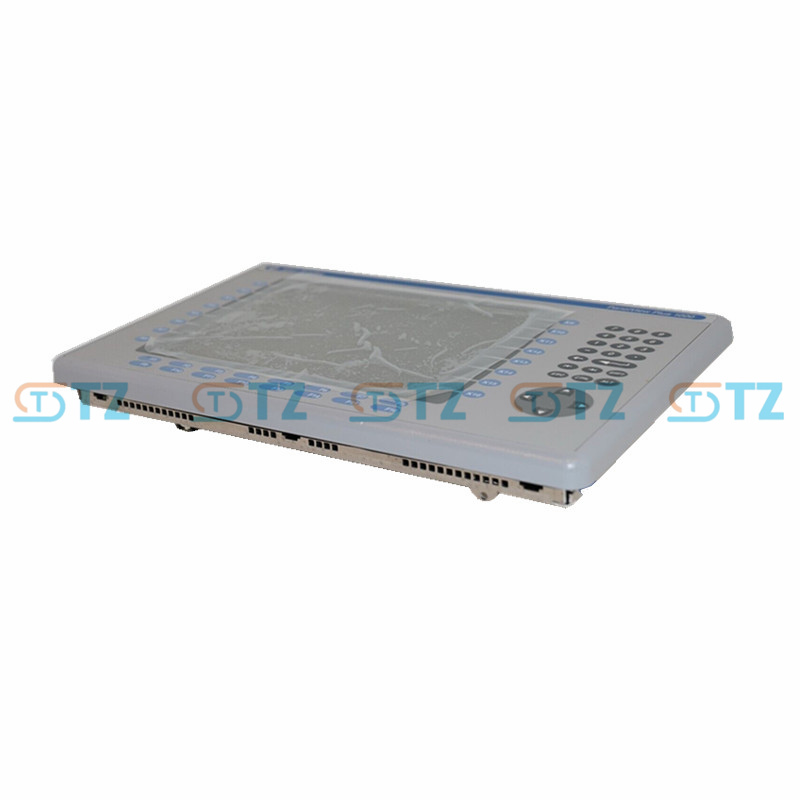

2711P-B10C4D8 Allen Bradley Rockwell 1000 Model PanelView Plus 6 Terminal

Product parameters

Display screen 10.4-inch color TFT LCD, 640 x 480 VGA resolution, 18-bit color graphics, display area 211 x 158 mm (8.3 x 6.2 inches), brightness 300 cd/m² (nit), CCFL backlight (lifespan approximately 50,000 hours) Replace part number 2711P-RL10C2.

Input interface: Analog resistive touch screen (supporting approximately 1 million presses, operating force 10-110 grams) + stainless steel keyboard (including number, navigation and function keys).

Power supply: 18-32V DC, maximum power consumption 70W (2.9A at 24V DC), heat dissipation approximately 239 BTU.

Memory: 512MB RAM, 512MB non-volatile storage, approximately 80MB available user storage, supports SD card expansion (compatible with 1784-SDx/SDHCx).

Communication interface 1 EtherNet port (10/100 Mbps, supporting EtherNet/IP), 1 RS-232 port (supporting DF1 protocol, short-range communication ≤15 meters), 2 USB 2.0 host ports, 1 USB device port (optional DH-485, DH+, ControlNet module).

Real-time clock: Battery support (CR2032 lithium battery, with a lifespan of at least 4 years and an accuracy of ±2 minutes per month).

Environmental conditions: Operating temperature: 0-55°C (32-131°F)

Storage temperature: -25-70°C (-13-158°F)

Relative humidity: 5-95% (no condensation)

Maximum working altitude: 2,000 meters (no demotion)

Vibration resistance: 2G (57-500Hz), shock resistance: 15G (in operation) / 30G (out of operation)

Protection class: NEMA/UL Type 12, 13, 4X, IP66 (needs to be installed in a cabinet of equivalent protection class).

Certifications: cUL-us, CE, RCM, RoHS, KCC.

Operating system: Windows CE 6.0.

Function

Human-machine Interaction (HMI) : It provides a real-time monitoring and control interface, operated through a touch screen and keyboard, supporting dynamic and static color graphics, facilitating parameter viewing and machine status management.

Connectivity: Supports communication with devices such as PLCS and PACS via EtherNet/IP networks. RS-232 is used for point-to-point short-distance connections, and supports VNC remote viewing and FTP file transfer.

Storage and Expansion: Built-in 512MB storage, supports SD card and USB flash memory expansion, convenient for storing applications, logs and user manuals.

Advanced features: Support ActiveX controls, Microsoft Office file viewing (Word, Excel, PowerPoint, Wordpad), and configure security and graphical interface through FactoryTalk View Studio.

Application scenarios

Industrial automation: It is used in factory automation systems to monitor and control production line equipment, such as PLC-controlled machinery, conveying systems or processing equipment.

Process control: Applicable to medium and large-scale process control scenarios, such as the food and beverage, pharmaceutical, chemical and other industries, it is used to display and adjust process parameters.

Machine status monitoring: Provides real-time status feedback and is suitable for the operation interface of devices that require frequent interaction.

Harsh environment: High protection level, suitable for use in dusty, damp or slightly corrosive environments (such as manufacturing plants, packaging workshops).
