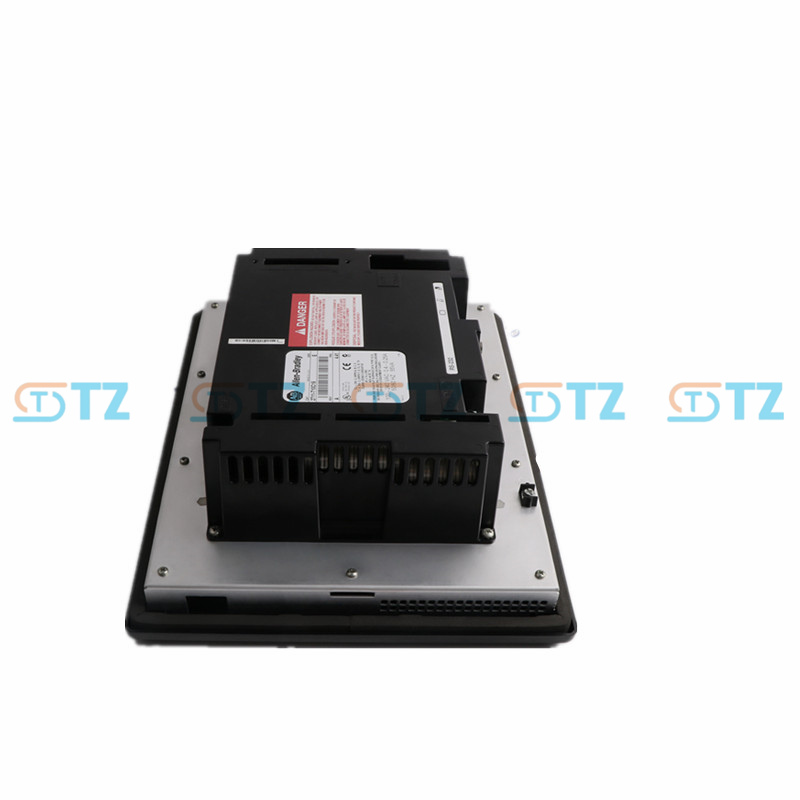

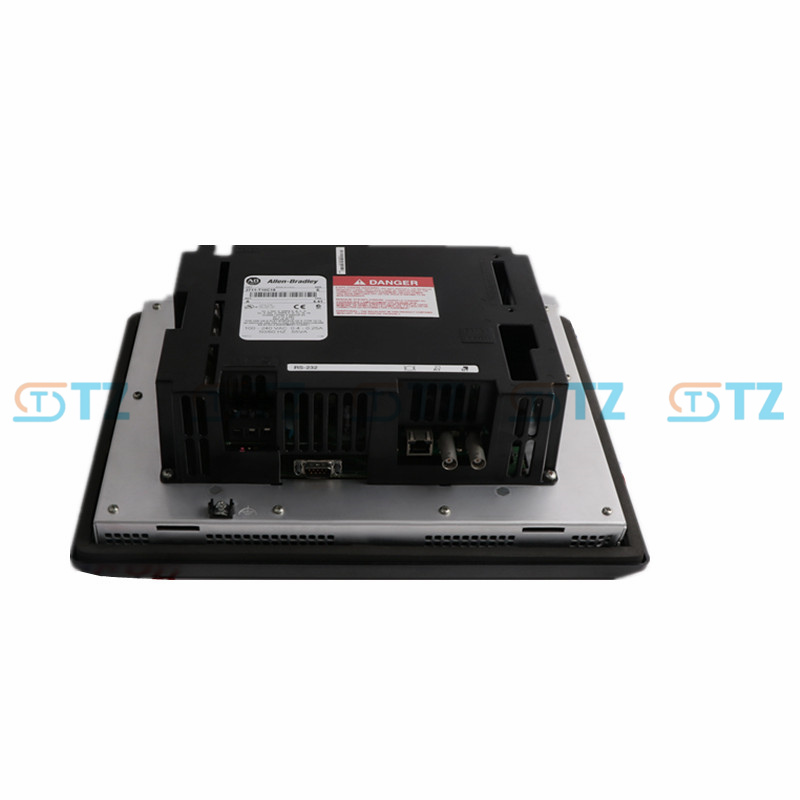

2711-T10C15 Allen-Bradley Rockwell PanelView 1000 Standard Touch Screen Terminal

Product parameters

Display screen: 10.4-inch color active matrix TFT LCD, with a resolution of 640 x 480 pixels

Display area: 211 x 158 mm (8.3 x 6.2 inches)

Touchscreen: Analog resistive touchscreen, 384 touch units (24 columns x 16 rows), each unit 26 x 30 pixels, with a lifespan of up to 1 million operations

Backlight: Cold cathode fluorescent lamp (CCF), lifespan 50,000 hours (Replaceable, Replacement part number 2711-NL1)

Power supply: 85-264V AC, 47-63 Hz, maximum power consumption 55 VA

Communication interface:

ControlNet communication port, supporting multi-node and long-distance industrial communication

RS-232 printer port, supporting baud rates of 2400, 1200, 9600 and 19200 kbps

Memory:

Non-volatile memory: 1008 KB (for storing application screens, objects, text and bitmaps)

Operating memory (RAM) : 310 KB

Supports ATA memory card expansion (256 KB to 32 MB)

Environmental conditions:

Operating temperature: 0 to 55°C (32 to 131°F)

Storage temperature: -25 to 70°C (-13 to 158°F)

Humidity: 5-95% (no condensation)

Protection grade: It needs to be installed in NEMA Type 12/13, 4X (indoor only), IP54 or IP65 cabinets

Seismic resistance: 15g impact, 2g vibration (up to 2000 Hz)

Firmware and software: Configuration is carried out using PanelBuilder32 software

Status indicator lights: Green (COMM, normal communication), red (FAULT, malfunction)

Others: Built-in real-time clock (Battery supported, minimum lifespan 5 years @25 °C)

Function

Display and Operation

Color TFT display screen, supporting multi-color graphics, provides clear process visualization.

Touchscreen interface, 384 touch units, supports intuitive interaction, suitable for complex operations.

Correspondence:

ControlNet port: Supports multi-node communication with controllers such as PLC-5 and ControlLogix, supports planned and unplanned messages, and is compatible with linear and redundant wiring.

RS-232 printer port: Used for printing alarm lists, event logs or message queues for convenient recording and analysis.

Data Storage and Management

1008 KB non-volatile storage and 310 KB RAM, supporting complex HMI applications.

Supports ATA memory card expansion, facilitating data backup and application transmission.

The alarm list queue can store 100 alarms and supports advanced alarm processing (active/historical alarms, alarm banners).

Development support:

Offline development is carried out through PanelBuilder32 software, which supports multi-language configuration, trend display, recipe management and screen security Settings.

Provide label trend analysis and draw continuous charts to facilitate process monitoring.

Durability

Suitable for industrial environments, it features high seismic resistance and a wide temperature range.

The touchscreen supports operation with bare fingers, gloves or plastic pens. Avoid using sharp metal objects to prevent damage.

Application scenarios

Manufacturing industry: Used for production line monitoring and control, such as in automotive manufacturing, food processing and packaging equipment.

Process control: In industries such as chemical engineering, oil and gas, and water treatment, it monitors and regulates process parameters (such as temperature, pressure, and flow rate).

Mechanical automation: In conjunction with PLC, it controls injection molding machines, packaging machines and other equipment.

Factory automation: Integrate into the factory network through ControlNet to achieve multi-device collaboration and data sharing.

Data recording: Alarm logs are recorded through the RS-232 port, which is suitable for industries such as pharmaceuticals and food and beverages that require compliance recording.
