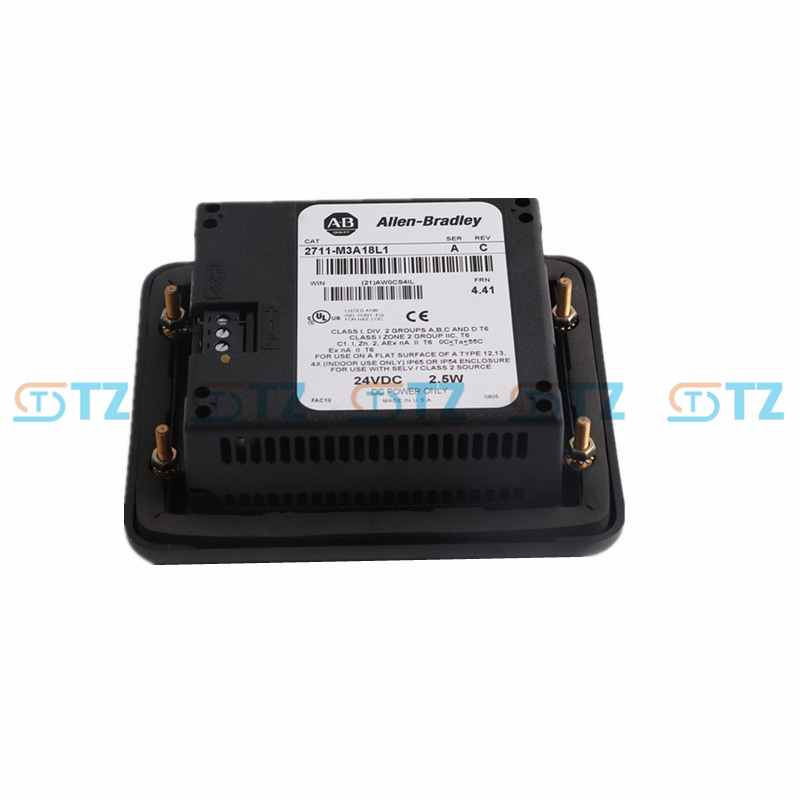

2711-M3A18L1 Allen-Bradley Rockwell PanelView Micro 300 Operator Terminal

Product parameters

General parameters

Module type: PanelView 300 Micro Standard operating Terminal

Product Number: 2711-M3A18L1 (Series A)

Display screen

Type: Monochrome Transflective LCD with LED backlight

Size: 3 inches

Resolution: 128 x 64 pixels

Display area: 73 x 42 mm (2.87 x 1.67 inches)

Backlight lifespan: 100,000 hours (non-replaceable)

Input method: Keyboard, including 4 function keys (F1-F4), number keys and navigation keys

Keyboard type: Stainless Steel Domed Membrane

Key life: 1 million presses

Installation method: Panel installation, and must comply with IEC-1131-2 contamination degree 2 (only non-conductive contamination)

Protection grade: NEMA Type 12/13, IP54, IP65 (for indoor use)

Operating temperature: 0°C to 55°C (32°F to 131°F)

Storage temperature: -20°C to 85°C (-4°F to 185°F)

Relative humidity: 5% to 95% (non-condensing, 0°C to 55°C)

Seismic resistance: 30 g (peak at 11 ms, IEC 68-2-27)

Vibration resistance: 2 g (10-2000 Hz, IEC 68-2-6)

Working altitude: Up to 2000 meters

Certification: UL, C-UL, CE, applicable to Class I, Division 2, Groups A, B, C, D or non-hazardous areas

Electrical parameters

Input power supply: 11-30V DC (nominal 24V DC)

Power consumption: Maximum 25 W (0.105 A @ 24V DC)

Memory:

Application runtime memory: 170 KB

Non-volatile memory: 240 KB (used for storing application objects, text and bitmaps)

ATA memory cards are not supported

Communication interface:

RS-232 (DF1) : 8-pin mini-DIN port, supporting DF1 protocol or point-to-point DH-485 protocol

Does not support the RS-232 printer port (different from 2711-K9C1)

Clock: Built-in real-time clock, battery backup (battery non-replaceable)

Status indication

COMM indicator light: Green, indicating the communication status

FAULT indicator light: Red, indicating hardware failure

Normal startup: The FAULT indicator light is off and the COMM indicator light is on

If neither of them lights up, the power cord needs to be checked

Support cable

Program upload/download: Supports 1761-CBL-PM02 (2m), 2711-CBL-PM05 (5m), and 2711-CBL-PM10 (10m) cables

Function

Process visualization

The 3-inch monochrome LCD display (128 x 64 pixels) supports simple graphics, text and alarm display, and is suitable for small machines or simple processes.

Provide real-time process data to enhance the monitoring efficiency of operators.

Keyboard input

It contains 4 programmable function keys (F1-F4), supports global and local variable allocation, and is suitable for simple control tasks.

The number keys and navigation keys facilitate parameter input and interface navigation.

Communication capability:

The RS-232 (DF1) port supports communication with MicroLogix, SLC 500 or other DF1-compatible devices and is suitable for small control systems.

Support point-to-point DH-485 protocol (via RS-232) and integrate with PLC or SLC controllers.

Software support:

Develop HMI applications using PanelBuilder32 software, which supports symbols, images, drawing tools, etc., and create an intuitive operation interface.

Support multi-language interfaces to meet international requirements.

High reliability

With NEMA Type 12/13 and IP54/IP65 protection grades, it is suitable for indoor industrial environments.

Anti-vibration and anti-seismic design ensures stable operation under harsh conditions.

The real-time clock of battery backup is used to timestamp key data (such as alarms and events).

Application scenarios

Small-scale manufacturing industry: It is used for monitoring and control of small-scale production lines, such as packaging machines and conveyor belts, displaying equipment status and inputting parameters through the keyboard.

Simple process control: In water treatment, HVAC or small chemical equipment, display data such as liquid level and temperature, and adjust simple process parameters.

OEM equipment: Embedded in small OEM equipment (such as packaging machines, filling machines), providing compact HMI solutions.

Traditional PLC system: Integrated with MicroLogix or SLC 500 via RS-232 (DF1), suitable for HMI replacement or upgrade in old factories.

Data monitoring: Supports alarm display and timestamp functions, suitable for scenarios where simple process data needs to be recorded.
