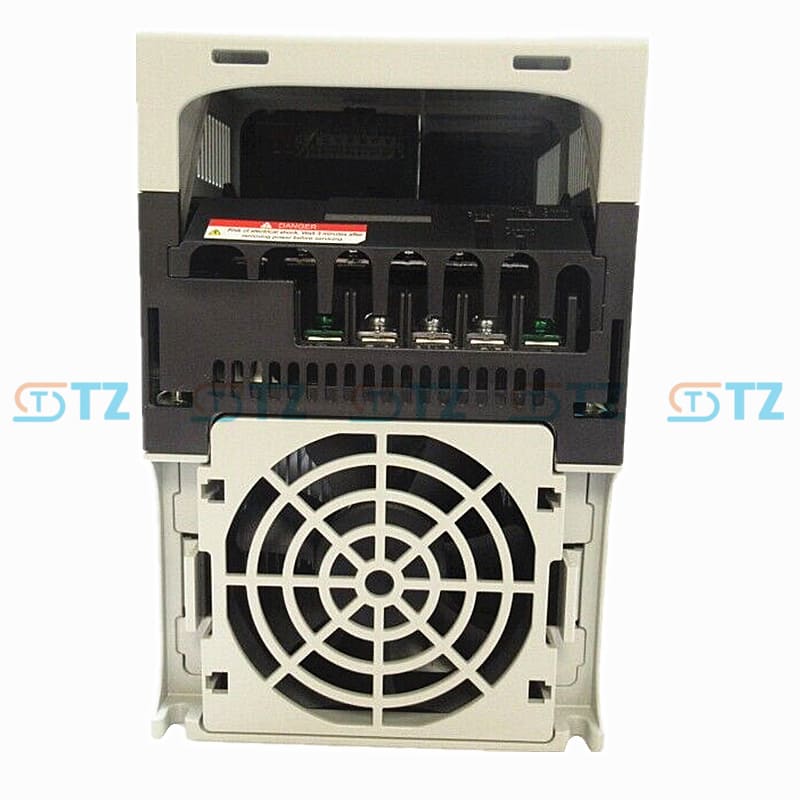

25B-D024N104 Allen Bradley Rockwell PowerFlex 525 Adjustable Frequency AC Drive

Product parameters

Input voltage: 380-480V AC, three-phase, 47-63Hz, input voltage tolerance -15%/+10%.

Output: Voltage: 0-460V AC, three-phase

Frequency: 0-500 Hz (programmable)

Current: 24 A

Power: 11 kW (15 HP) for regular load, 11 kW (15 HP) for heavy load

Control methods: Supports Volts/Hertz, sensor less vector control (SVC), closed-loop speed vector control, and permanent magnet motor control.

Overload capacity: Conventional load: 110% for 60 seconds, 150% for 3 seconds

Overload: 150% for 60 seconds, 180% (programmable to 200%) for 3 seconds

I/O interface: 2 analog inputs, 7 digital inputs (6 programmable), 1 analog output, 2 photoelectric outputs, 2 relay outputs (Form A and Form B).

Communication interface: Built-in EtherNet/IP and RS485/DSI ports, supporting protocols such as DeviceNet and PROFIBUS (via optional modules).

Safety function: Supports Safe Torque Off (SIL2, Cat 3).

Braking: Built-in braking IGBT, supporting dynamic braking, requires external braking resistor.

Protection grade: IP20 NEMA/ Open type, no built-in EMC filter.

Environmental conditions: Operating temperature: -20-50°C (-4-122°F), with an optional fan kit supporting up to 70°C

Storage temperature: -40-85°C (-40-185°F)

Relative humidity: 5-95% (no condensation)

Maximum working altitude: 1,000 meters (no derating) to 4,000 meters (derating required)

Vibration resistance: 1G (10-500 Hz), impact resistance: 15G

Certifications: cUL-us, CE, RCM, RoHS, KCC, EAC.

Others: Supports PointStop technology, closed-loop feedback (encoder card optional), point-to-point positioning mode, and dual PID control loop.

Function

Motor control: Supports multiple control modes (Volts/Hertz, SVC, closed-loop vector, permanent magnet motor control) to achieve precise speed and torque control.

Network integration: Built-in EtherNet/IP and RS485, supporting seamless integration into industrial networks and multi-protocol communication.

Safety and Protection: Built-in safety torque off function, dual overload protection, and enhanced equipment safety.

Dynamic braking: Built-in braking IGBT, supporting rapid deceleration and precise speed adjustment.

User interface: Equipped with an embedded LCD keyboard, it supports local operations (start/stop/jog/forward/reverse rotation) and parameter configuration. The MainsFree tool supports USB data transfer.

Scalability: Supports optional encoder cards and communication modules to meet the requirements of complex applications.

Application scenarios

Industrial automation: It is used to control equipment such as conveyor belts, fans, pumps, and compressors, and is suitable for scenarios such as manufacturing and material handling.

Process control: It is used in industries such as food and beverage, chemical engineering, and water treatment to precisely control motor speed and process parameters.

Heavy-duty applications: Suitable for equipment requiring high power output, such as cranes, crushers, etc.

Harsh environment: With an IP20 protection rating, it is suitable for installation in control cabinets and is applicable to complex industrial environments.

Advantage Products:

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Many Available just wait for you, feel free to ask to get better deal!!!
