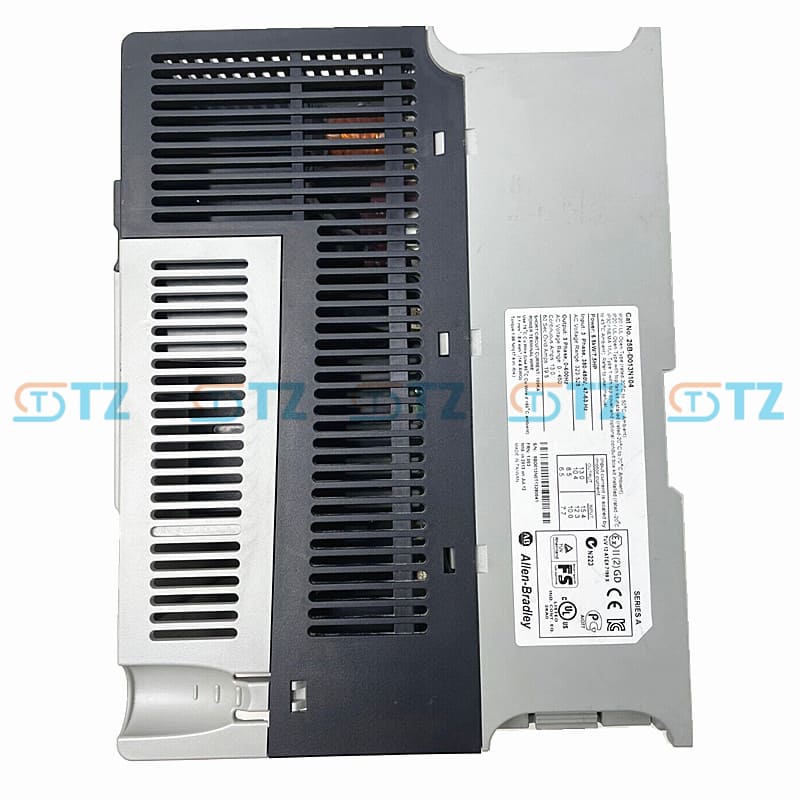

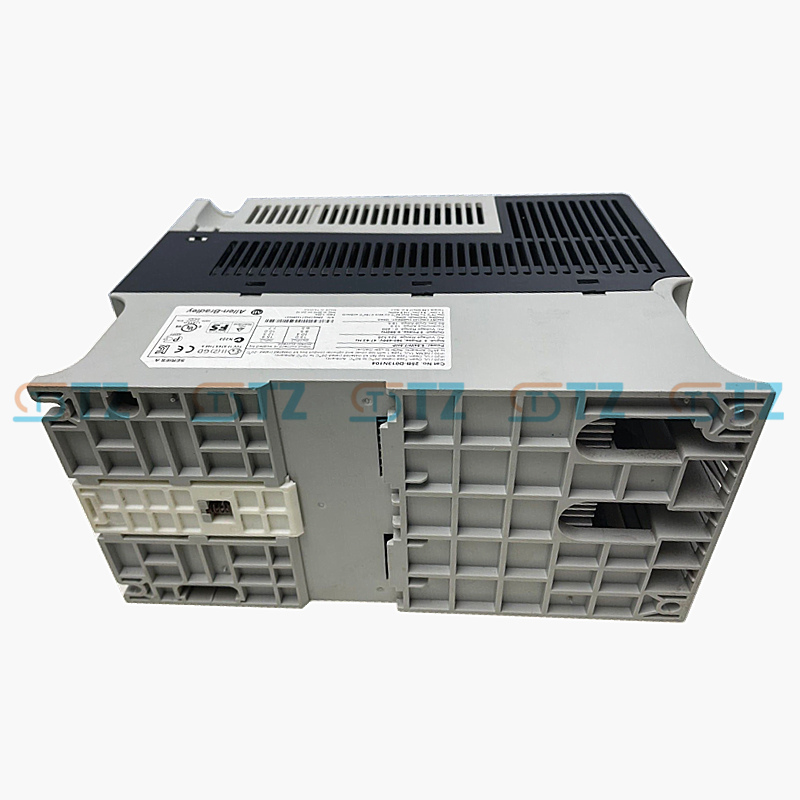

25B-D013N104 Allen Bradley Rockwell PowerFlex 525 Variable Frequency Drive (VFD)

Core parameters

Rated power: 7.5HP (5.5kW

Voltage compatibility :480V AC three-phase input (industrial standard voltage)

Current capacity :13A (continuous output)

Protection grade :IP20 / NEMA open type (to be installed in the electrical control cabinet)

Communication interface: Embedded EtherNet/IP (supporting real-time data exchange)

Control mode: Open-loop vector control (V/Hz mode) + closed-loop vector control (optional)

Braking unit: Built-in IGBT braking unit (supporting rapid shutdown)

Functional features

Integrated security system

Supports Safe Torque Off (STO) safety function, achieving emergency power-off through external safety relays, in compliance with ISO 13849-1 safety standards.

Built-in EMC filter to suppress electromagnetic interference (compatible with Industrial Environment EMC Directive 2014/30/EU).

Intelligent operation and maintenance capabilities

LCD keyboard integration: Real-time display of current, frequency, and fault codes (such as overcurrent F1, overheat F6), supporting local parameter configuration.

Predictive maintenance: Monitoring the lifespan of key components (capacitors, fans) to reduce unexpected downtime.

Adaptive control algorithm

Auto-Tune function: Automatically match motor parameters (winding resistance/inductance) and optimize starting torque (150% rated torque @0.5Hz).

Energy-saving mode: Dynamically adjust voltage based on load (PID control), with a typical energy-saving rate of 15%-30% (for fan/pump scenarios).

Application scenarios

General industrial drive

Fluid control: Centrifugal pumps, cooling tower fans (HVAC systems), supporting multi-pump linkage control.

Material conveying: Conveyor belts, elevators (started and stopped synchronously with PLC via EtherNet/IP).

Integration of automated production lines

Machine tool auxiliary equipment: coolant pump, spindle ventilator, compatible with Rockwell Kinetix servo system.

Packaging machinery: Synchronous control of film stretching rollers (0-10V speed regulation through analog input).

Energy-sensitive scenarios

Solar pump station: Compatible with photovoltaic inverters (referring to solar inverter compatibility), supports low-voltage ride-through.

Building energy-saving renovation: Replace the old star-delta starter to reduce the starting current impact (<2 times the rated current).
