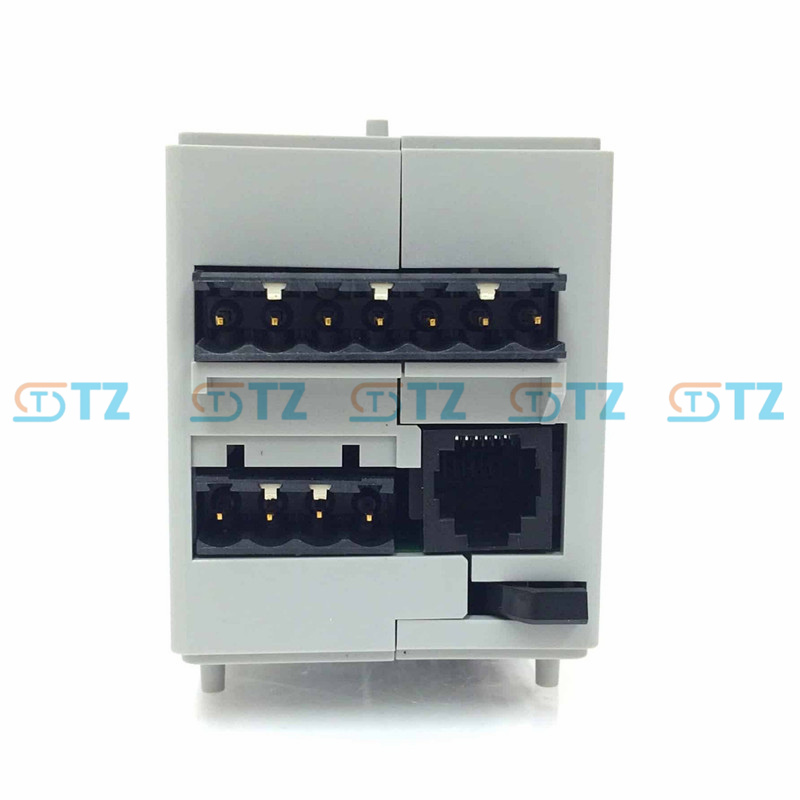

193-EIO-43-120 Allen Bradley Rockwell DeviceLogix E300 Overload Relay

Product parameters

Model: 193-EIO-43-120

Type: E300/E200 electronic overload relay Control module

Input: 4-digit input, 110-120VAC (50/60Hz)

Input type: Supports single-ended input

Output: 3 relay outputs (2 Form A SPST-NO, 1 Form C SPDT)

Output rated values: 5A@240VAC, 3A@120VAC, 1.5A@24VDC

Control voltage: 110-120VAC, 50/60 Hz

Connection: Connect via the E300/E200 expansion bus

Protection grade: IP20 (To be installed in an appropriate enclosure)

Operating temperature: 0°C to +60°C

Storage temperature: -40°C to +85°C

Certifications: CE, CUL, UL, KC, RCM, EAC, CCC, C-TICK

UPC: 885630525457

GTiN: 00885630525457

Compatibility: E300/E200 electronic overload relay, supporting DeviceLogix

Function

Expand I/O capabilities: Provide 4 digital inputs and 3 relay outputs to expand the control and monitoring capabilities of the E300/E200 relays.

Support input signals from external devices (such as sensors and switches), as well as relay output control for external loads.

Communication and Integration: Connected to the E300/E200 relay via an expansion bus, supporting EtherNet/IP or DeviceNet.

Integrated into Logix control systems (such as ControlLogix, CompactLogix), it supports DeviceLogix logic control and provides intelligent motor control.

Diagnostic function: Provides enhanced diagnostic information, including input/output status, motor operation data and system fault information.

Support diagnosis for single-phase and three-phase applications, optimize motor protection and fault detection.

Simplified wiring: The modular design simplifies installation and reduces the complexity of wiring.

Support fast connection to reduce maintenance time.

High reliability: Robust design, in compliance with industrial standards, suitable for harsh environments.

The relay output supports multiple load types, enhancing application flexibility.

Application scenarios

Motor protection and control: Used in conjunction with the E300/E200 electronic overload relay, it protects single-phase or three-phase motors and is suitable for equipment such as pumps, fans, conveyor belts, and compressors.

Industrial automation: Integrated into PLC or SCADA systems for production line control, material handling and equipment monitoring.

Distributed control system: Supports distributed I/O expansion via EtherNet/IP, suitable for PlantPAx DCS or other networked control systems.

Diagnosis and Monitoring: It provides real-time input/output status data and is suitable for scenarios that require high reliability and diagnostic functions, such as the automotive manufacturing, food and beverage, and petrochemical industries.

Space-constrained environment: The compact design is suitable for applications where the control cabinet space is limited.
