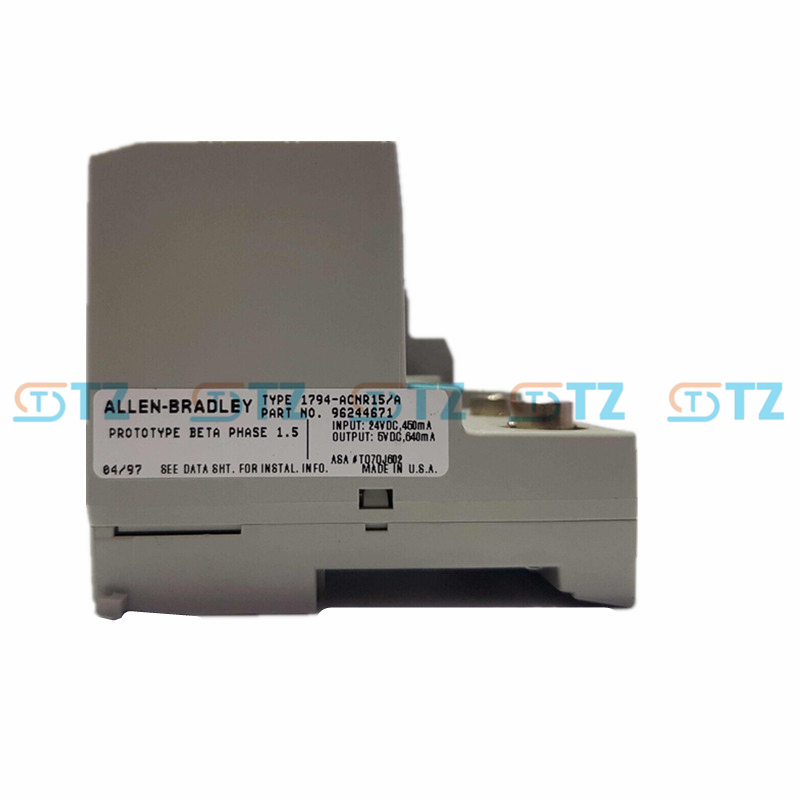

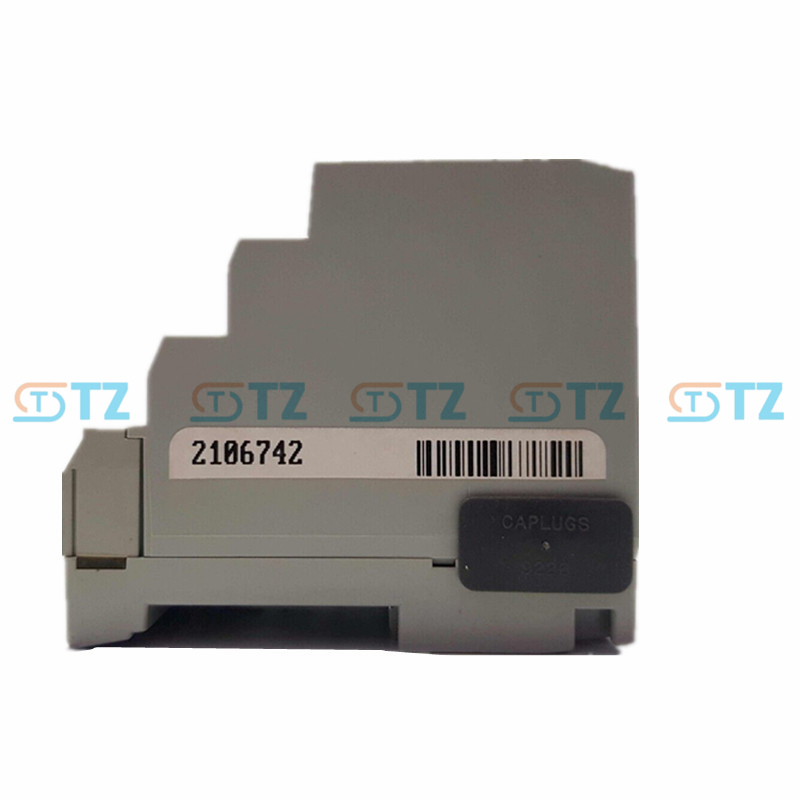

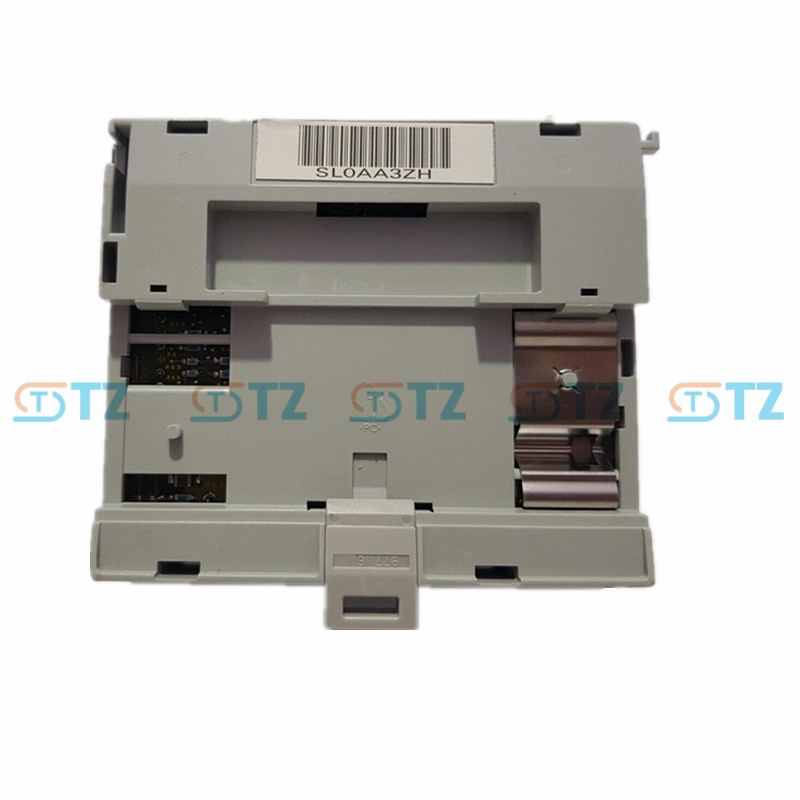

1794-ACNR15 Allen Bradley Rockwell Flex I/O Redundant ControlNet Adapter Module

Product parameter model: 1794-ACNR15

Series: Flex I/O

Type: Redundant ControlNet Communication adapter

I/O module capacity: Supports up to 8 Flex I/O modules at most

Communication ports: 2 ControlNet BNC ports (supporting redundant media)

Communication rate: 5 Mbps

Power supply requirement: Nominal voltage: 24V DC

Input voltage range: 19.2-31.2V DC (including 5% AC ripple)

Current consumption: Up to 400 mA @ 24V DC

Surge current: 23 A, lasting for 2 ms

Flexbus output current: Maximum 640 mA

Power consumption: 7.9W @ 24V DC

Power dissipation: 4.6W @ 19.2V DC

Heat dissipation: 15.7 BTU/hr @ 19.2V DC

Isolation voltage: 850V DC (from user power supply to system, lasting for 1 second)

Installation method: DIN rail or panel mounting (torque 7 pound-inch)

Enclosure type: Open type (IP20)

Operating temperature: -25 to 55°C (-13 to 131°F)

Storage temperature: -40 to 85°C (-40 to 185°F)

Relative humidity: 5-95% (non-condensing)

Vibration: 5.0G during operation @ 10-500Hz

Impact: 30G during operation and 50G when not in operation

ControlNet cable: Allen-Bradley RG-6/U four-shielded coaxial cable

Certifications: C-TICK, CE, CUL, GOST, KC, MARINE, UL

Function

Redundant ControlNet communication: Equipped with two ControlNet ports (Comm A and Comm B), it supports redundant network topology. When one port or network fails, data is automatically switched to the other port to ensure high availability.

Supports ControlNet 1.5 version and is more suitable for high-reliability applications compared to 1794-ACN15 (single-port, non-redundant).

Modular I/O support: Up to 8 Flex I/O modules can be connected, supporting up to 256 digital I/O points, and adapting to various I/O combinations.

Status indication: Equipped with LED indicator lights, including module status, I/O status, ControlNet port A and B status, for real-time monitoring and fault diagnosis.

Efficient configuration: Configured through the ControlLogix system and RSNetWorx software, it supports rapid setup and debugging, shortening the system launch time.

Installation flexibility: Supports DIN rail or panel installation, and the open design facilitates maintenance and expansion.

Application scenarios

Distributed I/O system: Widely used in factory automation, such as manufacturing, automotive production lines and packaging equipment, it enables remote I/O control through the ControlNet network.

High availability applications: Redundant ControlNet ports make it suitable for mission-critical scenarios such as the oil and gas, power, and water treatment industries, ensuring continuous system operation in the event of network failures.

Process control: It is used in the chemical, pharmaceutical and food and beverage industries that require precise data acquisition and control, and supports complex distributed control systems.

Industrial automation: In conjunction with Flex I/O modules, it is suitable for controlling sensors, actuators, valves and other equipment, and is widely used in conveyor belts, pump systems and HVAC applications.

High-reliability environment: Suitable for scenarios that require high reliability and rapid response, such as aerospace and heavy machinery manufacturing.
