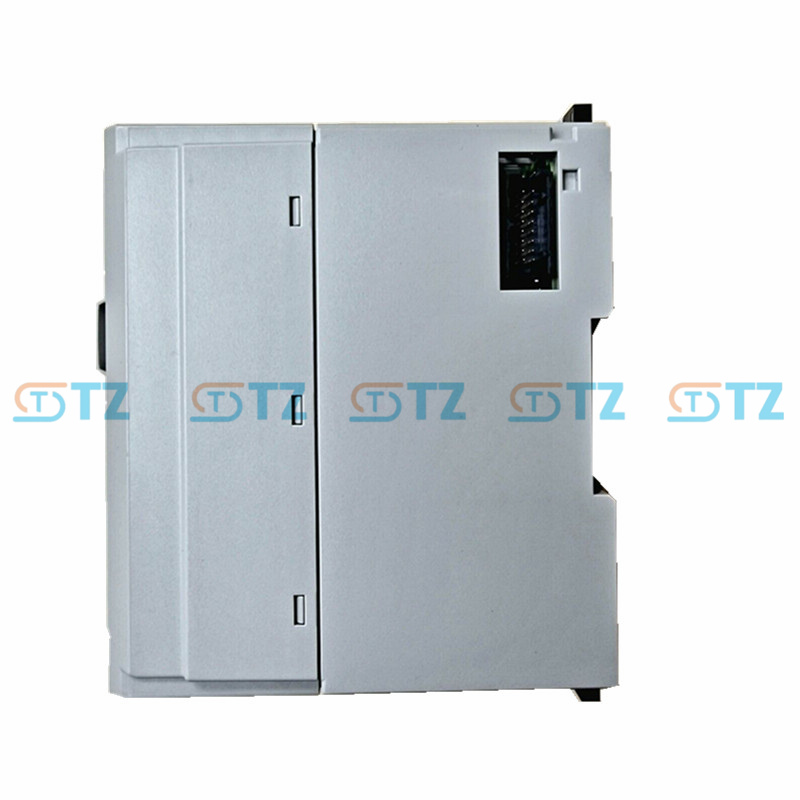

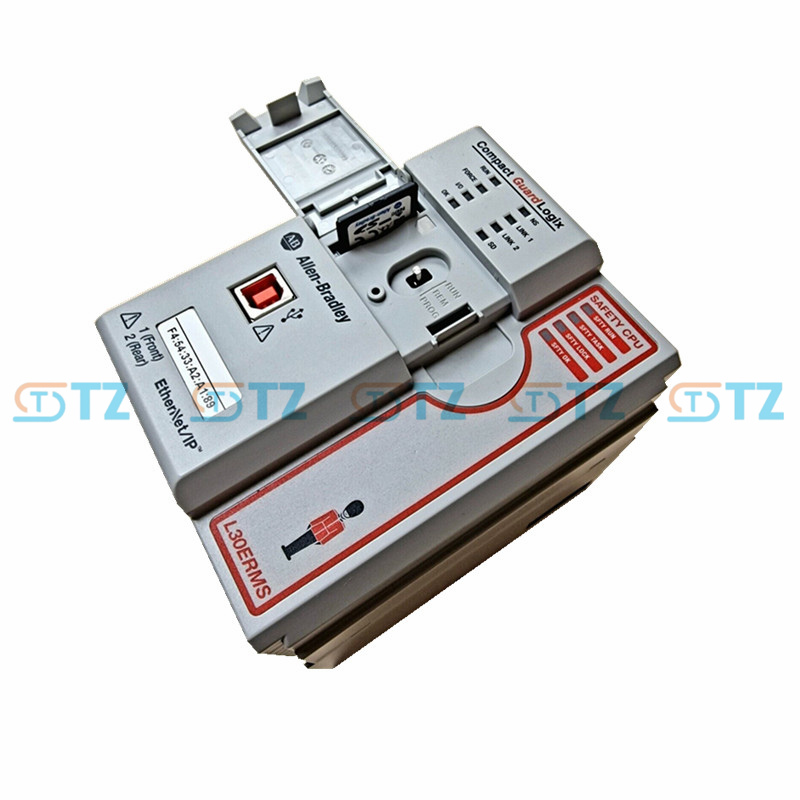

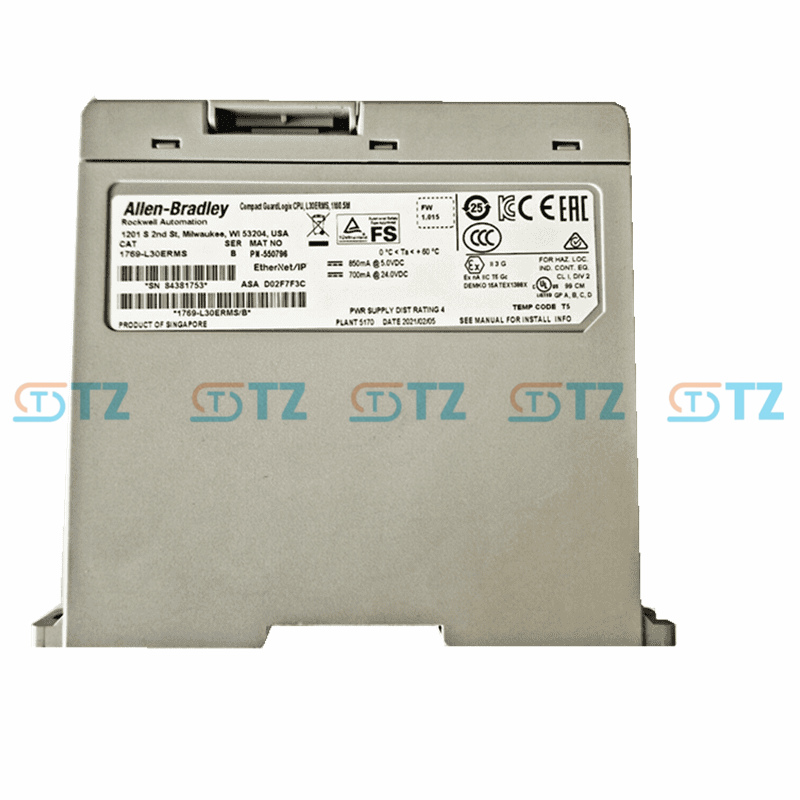

1769-L30ERMS Allen-Bradley CompactGuardLogix Controller
The Allen-Bradley 1769-L30ERMS is a CompactGuardLogix controller.
HS CODE : 8538909200
Product No :
1769-L30ERMSManufacture :
Allen-BradleySize (cm) :
10.5*5.5*11.8Weight (kg) :
1.19Origin :
USAWarranty :
12 MonthLead Time :
Ready StockDescription :
CompactGuardLogix controllerProduct parameters
Model: 1769-L30ERMS
Processor type: Compact GuardLogix 5370 controller
Memory: Standard memory: 1 MB
Safe memory: 0.5MB
Non-volatile storage: Supports SD cards (1784-SD1 1GB, 1784-SD2 2GB, purchased separately)
Communication ports :2 EtherNet ports (supporting Ethernet /IP, 10/100 Mbps, DLR)
One USB 2.0 port (for programming and configuration)
Supported connection number :256 EtherNet/IP connections
120 TCP connections
Maximum number of nodes: 8 (EtherNet/IP network
Maximum local I/O modules: 8 1769 series modules
Maximum expansion racks: 3 (supporting a total of 30 modules)
Supported I/O points: 128,000 digital, 4,000 analog
Task support :32 tasks
One hundred programs/tasks
Event triggering: Supports 1000 events
Safety class: SIL CL3 (IEC 61508), PLe (ISO 13849-1)
Motion control: Supports CIP Motion up to 16 axes (via EtherNet/IP)
Backplane current: 5V DC: 800 mA
Power dissipation: 4.5W
Heat dissipation: 15.7 BTU/hr
Installation location: 1769 CompactLogix rack (left end, close to the power module)
Supported power supplies: 1769-PA2, PA4, PB2, PB4
Operating temperature: 0°C to 60°C (32°F to 140°F)
Protection grade: Open enclosure
Certification: CE, cULus, ATEX, EtherNet/IP ODVA, in compliance with IEC 61508 and ISO 13849-1
Compatible software: Studio 5000 Logix Designer (version 20 or higher), RSLinx Classic
Function
Integrated safety control: Supports SIL 3 and PLe safety levels, suitable for safety-critical applications (such as emergency shutdown, protective door control).
EtherNet/IP communication: Dual Ethernet ports support DLR, linear or star topology, optimizing network redundancy and real-time control.
Motion control: Supports up to 16-axis CIP Motion, suitable for servo drives and motion control applications.
Modular expansion: Supports 8 local I/O modules and 3 expansion racks, with a maximum of 30 modules.
High-performance processing: Supports multi-task parallel processing, suitable for complex logic and data-intensive applications.
Diagnostic function: It provides real-time diagnosis of network status, connection errors and security status, simplifying fault detection.
Programming flexibility: Studio 5000 supports programming languages such as ladder diagrams, function blocks, and structured text.
Application scenarios
Industrial automation: Used in small and medium-sized production lines, such as automotive manufacturing and packaging equipment, it provides standard and safety control.
Safety system: Suitable for safety applications requiring SIL 3/PLe, such as robots, presses or conveying systems.
Process control: It is used in industries such as food and beverage, pharmaceuticals, and water treatment to monitor key parameters.
Motion control: Supports high-precision motion control for robots, CNC machine tools, servo drives, etc.
Distributed control: Connect distributed I/O and HMI via EtherNet/IP to optimize system integration.
