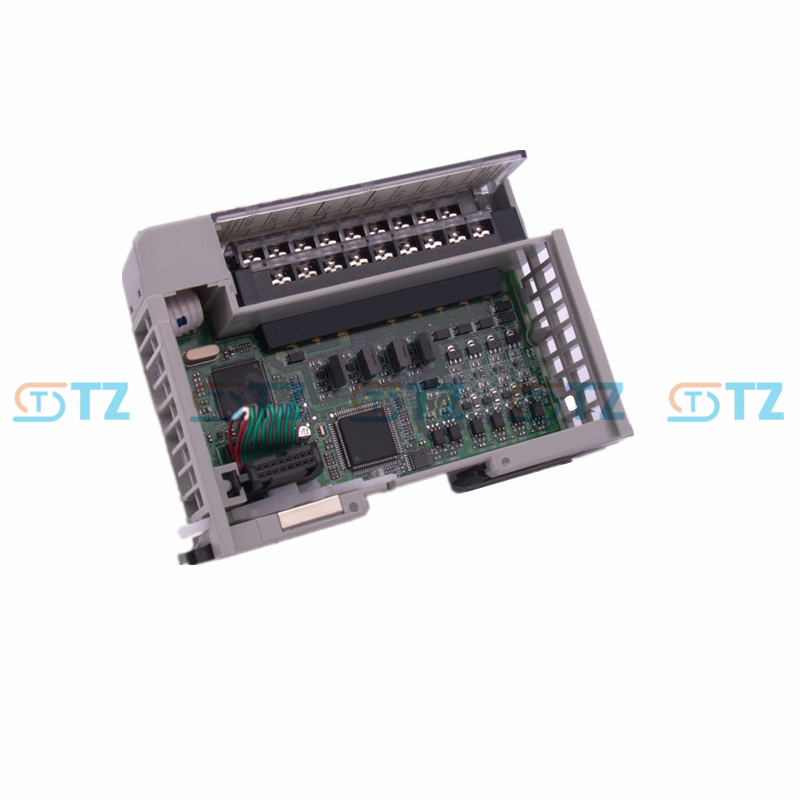

1769-BOOLEAN Allen-Bradley Compact I/O Boolean Control Module

Product parameters

Basic overview:

Manufacturer: Allen-Bradley/Rockwell Automation

Product series: 1769 CompactLogix/MicroLogix 1500

Module type: Boolean control I/O module (Combined input/Output module)

Product Number: 1769-BOOLEAN

Input/Output:

Inputs: 8 single-ended 24V DC Sinking (Sinking) inputs, 8 virtual inputs

Output: 4 single-ended 24V DC Sourcing outputs, with a maximum current of 0.5A @ 20.4-26.4V DC

UPC code: 781180908620

Electrical parameters:

Input voltage range:

10-30V DC @ 30°C

Something like 10

Output voltage range: 20.4-26.4V DC

Backplane current: 425 mA @ 5.1V DC

Power dissipation: 7.5W (Some materials mention 33.6W, which needs to be confirmed)

Isolation voltage: 30V continuous, or up to 1200V AC/1697V DC

Input impedance: 2.0k Ω @ 24V DC, 2.3k Ω @ 30V DC

Input delay: 10 μs (ON-OFF and OFF-ON)

Closed-loop time: 1 μs

Shell type: Open type

Installation method: DIN rail or panel installation

Operating temperature: 0°C to 60°C (32°F to 140°F)

Storage temperature: -40°C to 85°C (-40°F to 185°F)

Certification: UL, c-UL-us (Class I, Division 2), CE, C-Tick, KC, CCC

Others:

Power supply distance grade: 4 (Needs to be installed at a position no more than 4 modules away from the 1769 power module)

Terminal block: Detachable terminal block with finger touch safety cover

Function

Boolean logic control

Support output control through Boolean expressions (AND, OR, XOR, NONE), and the expressions are based on hardware input status and soft input controlled by the program.

The output status can be configured with delay and duration Settings to provide precise control.

The output can be directly controlled by the program or independently controlled through the Boolean expression of the module.

High-performance I/O

Eight 24V DC submerged inputs and four source-out outputs support fast response (closed-loop time 1 μs).

It supports interrupt function. When the input and output states change, it can send interrupt signals to the controller, which is suitable for real-time control applications.

Flexible configuration

Supports I/O memory mapping, and users can customize the configuration through RSLogix 5000 or Studio 5000 software.

Eight virtual inputs can be controlled by the program to enhance logical flexibility.

Isolation and grounding

The input and output circuits are isolated by default. If the IN DC COM and OUT DC COM terminals are connected to the same ground, the isolation will fail.

It needs to be installed on a grounded metal panel to ensure reliable grounding.

Status monitoring

It is equipped with LED indicator lights to display the power supply, input and output status of the module, facilitating on-site diagnosis.

Application scenarios

Industrial Automation

Discrete control: It is used for rapid on-off control, such as controlling solenoid valves, relays or indicator lights, and is suitable for packaging machines, conveyor belts or sorting systems.

Logical control: Complex logical control is achieved through Boolean expressions, such as activating output devices (like cylinders) when sensor input (TRUE) is detected.

Event-driven applications: By leveraging the interrupt function, it triggers a rapid response when the input state changes, making it suitable for high-speed production lines or robot control.

Small to medium-sized systems: Suitable for small and medium-sized automation projects of CompactLogix or MicroLogix 1500 systems, such as small processing equipment, test benches or HVAC systems.

Provide high-performance Boolean control in scenarios that require rapid digital I/O processing.

Integrated control

Combined with HMI (such as PanelView) or PowerFlex drivers, it is used to display and control process status.

It is suitable for applications that require high-density I/O and rapid response, such as material handling or assembly lines.
