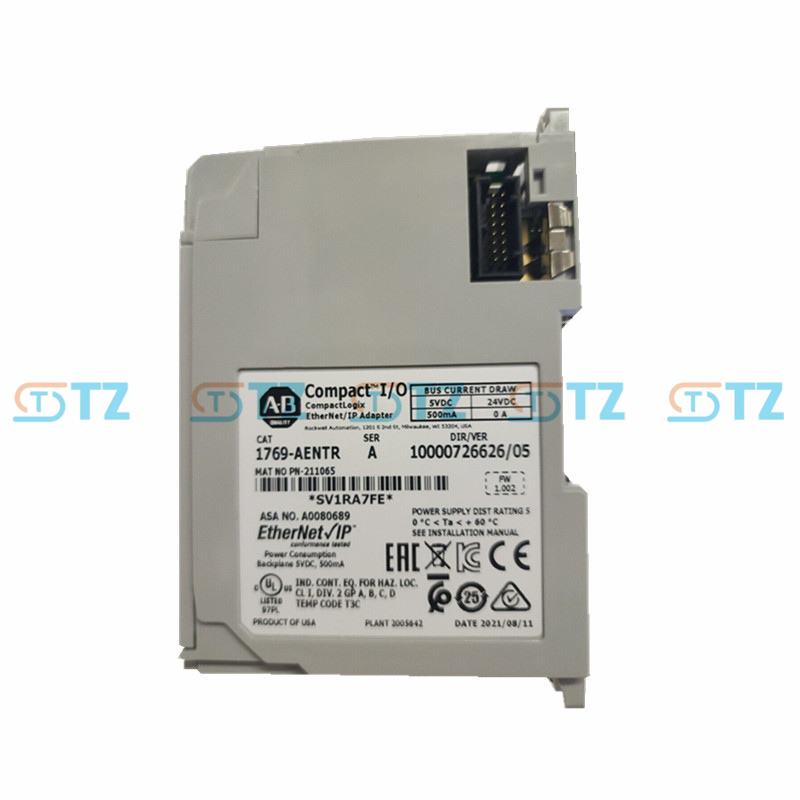

1769-AENTR Allen-Bradley CompactLogix Communication Module

Technical parameters

Part Number: 1769-AENTR

Module type: CompactLogix EtherNet/IP Adapter

Communication ports: 2 Ethernet RJ45 ports (supporting DLR, linear, and star topologies)

Communication rate: 10/100 Mbps, adaptive

Communication protocol: EtherNet/IP, supporting CIP (General Industrial Protocol)

TCP/IP connection count: 96

Logix connection count: 128

I/O packet rate: up to 10,000 pps

Current consumption: 500 mA at 5V DC

Isolation voltage: 50V (continuous), basic insulation type, test voltage 710V DC for 60 seconds

Power supply distance grade: 5 (Distance from power supply)

Cable requirements: RJ45 connector, conforming to IEC 60603-7 standard, 2 or 4 pairs of Category 5e minimum cable (TIA 568-B.1) or Category 5 cable (ISO/IEC 24702)

Enclosure type: Open type (no protection grade)

Operating temperature: 0-60°C (32-140°F

Storage temperature: -40-85°C (-40-185°F)

Relative humidity: 5-95%, non-condensing

Vibration: 2 G @ 10-500 Hz

Impact: 15 G during operation

ESD immunity: 6 kV contact discharge, 8 kV air discharge

Radiation RF immunity: 10V/m, 80-2000 MHz (1 kHz sine wave, 80% AM)

Installation method: DIN rail or panel installation

Installation screw torque: 1.16 Nm (10 lb·in), using M4 or #8 screws

Certifications: c-UL-us, CE, RCM, Ex, KC, EtherNet/IP

Function

Dual Ethernet ports: Supports DLR (Device-level Ring), linear or star topology, providing network redundancy and high availability.

Efficient communication: Supports 96 TCP/IP connections and 128 Logix connections, with an I/O packet rate of up to 10,000 pps, making it suitable for high-performance applications.

Modular expansion: Supports connection of up to 3 groups of Compact I/O modules (each group requires a power module), and up to 30 local I/O modules.

Seamless integration: Compatible with CompactLogix and ControlLogix controllers, and supports configuration and programming with Studio 5000 software.

IP address configuration: Set the hardware IP address by rotating the switch to simplify network configuration.

Support for integrated motion control: Supports up to 16-axis integrated motion control (requires L4xS controller to support SIL 3/PLe safety level).

Diagnostic function: Through the status LED indication module, communication and network status, it is convenient to troubleshoot.

Simplified migration: Allows for the reuse of existing 1769 I/O modules, reducing the cost of upgrading to the new generation of CompactLogix controllers.

Supports multiple devices: Can communicate with HMI (such as PanelView series), SCADA systems and other controllers, and supports message passing function.

Application scenarios

Manufacturing industry: Control robotic arms, conveyor belts and other equipment on automated production lines to achieve automation and intelligence in the production process.

Power system: It is used for monitoring the status of power grids and controlling the switches of power equipment, enhancing the safety and stability of the system.

Chemical industry: Monitor parameters such as temperature and pressure in chemical reactors to ensure precise process control.

Automated production line: As the core communication unit, it coordinates various production stages, enhancing production efficiency and product quality.

Telecommunications and energy management: Monitor equipment status in telecommunications base stations or energy management systems, optimize energy consumption and conduct remote management.

Robot control: Supports simple robot motion control, suitable for small to medium-sized applications.
