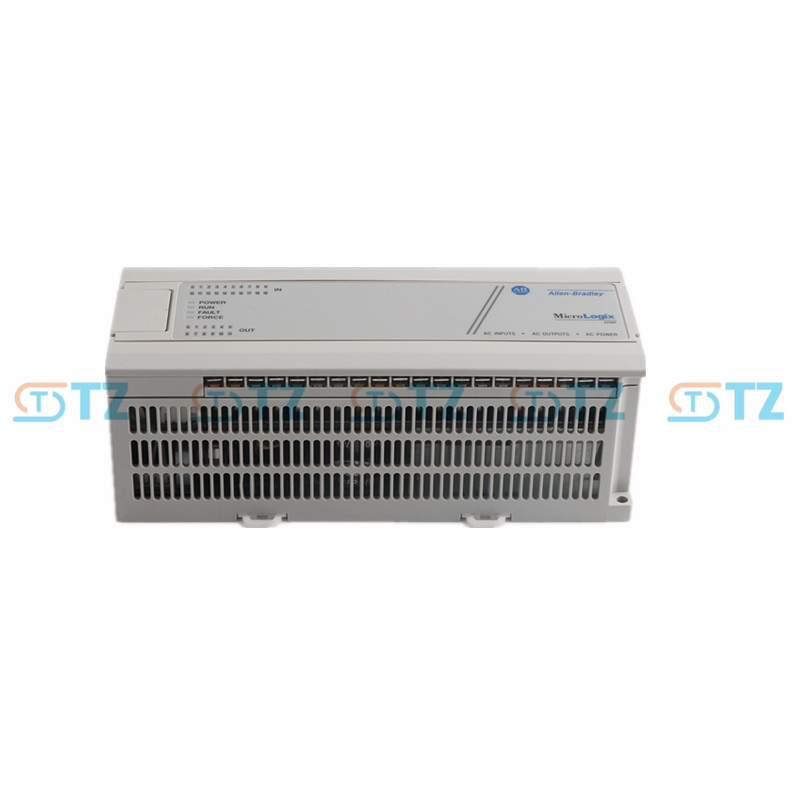

1761-L32AAA Allen-Bradley MicroLogix 1000 Programmable Logic Controller

Product parameters

Operating temperature and humidity: 0 to 55°C, 5% to 95% RH (no condensation)

Storage temperature: -40 to 85°C

Working environment: No corrosive gases, Category II non-hazardous industrial environment

Vibration resistance: 5 Hz to 2000 Hz (operating and non-operating conditions)

Impact resistance: 20g (operating state)

Insulation resistance: Minimum 20 MΩ (500 VDC) between the power terminal and ground

Dielectric strength: 1500 VAC, lasting for 1 minute (50/60 Hz)

Protection grade: IP20

Installation method: DIN rail or panel installation

Certification: UL listing, CUL Class 1 Division 2 Groups, CE/RCM/EAC compliance

Terminal screw torque: 0.9 Nm (8.0 lb-in)

Electrostatic discharge: EN 61000-2, 8000 V

Electrical and mechanical characteristics: Rated power: 30 VA

Power supply voltage: 120/240 VAC (range: 85-264 VAC, 47-63 Hz)

Surge current: 30 A, lasting for 8 ms

I/O points: 32 input points: 20 120 VAC digital input ON status Voltage range: 79-132 VAC

OFF state voltage range: 0-20 VAC

Minimum ON state current: 5.0mA (79 VAC, 47 Hz)

Maximum ON state current: 16.0 mA (132 VAC, 63 Hz)

Nominal ON state current: 12.0mA (120 VAC, 60 Hz)

Signal delay: 20 ms

Output: 10 TRIAC outputs in ON state voltage range: 85-264 VAC

Maximum continuous current: 0.5A (55°C) or 1.0A (30°C)

Maximum current at each common terminal: 6 A

Minimum ON state current: 10.0 mA

Maximum OFF state leakage current: 2 mA (132 VAC) or 4.5 mA (264 VAC)

Signal delay: ON 8.8 ms (60 Hz) /10.6 ms (50 Hz), OFF 11.0 ms

The rated values of the output contacts of the two relays are: 2.0A at 24VDC, 1.0A at 125VDC, and 2.5A at 120/240VAC

Maximum current at each common terminal: 8 A

Signal delay: 10 ms

Memory: 1 K EEPROM (737 instruction words, 437 data words)

Communication port: 1 RS232 (8-pin mini DIN), supporting DF1 protocol

Supported protocols: DF1 (full-duplex/half-duplex), which can be extended to DH485 via 1761-NET-AIC, or to DeviceNet and EtherNet/IP via 1761-NET-ENI/ENIW

Programming language: Ladder Diagram (conforming to IEC 61131-3 standard)

Programming software: RSLogix 500 (version 4.00.00 or higher)

Scanning time: Typical 2 ms

I/O scan time: Typical 0.21 ms

Power supply cycle: Minimum 50,000 times

Function

High-density I/O: 32-point I/O (20 inputs + 12 outputs), it is one of the models with the highest I/O density in the MicroLogix 1000 series

Flexible communication: The built-in RS232 port supports the DF1 protocol and can be extended to DH485, DeviceNet or EtherNet/IP through a converter

Compact design: Flat "shoebox-style" structure, suitable for installation in Spaces with limited space

Safety features: The Master Control Relay provides an emergency stop function

Programming support: Ladder diagram programming can be performed using RSLogix 500 software or MicroLogix 1000 handheld programmer (HHP)

Battery-free memory: 1 K EEPROM memory, allowing programs to be retained without a battery

Flexible installation: Supports DIN rail or panel installation, adapting to various industrial environments

Application scenarios

Small-scale mechanical control: such as packaging machines, labeling machines, and conveyor belts, requires simple logic control

Building automation: such as HVAC systems and lighting control, requires reliable I/O processing

OEM equipment: Embedded control system, suitable for cost-sensitive equipment

Teaching and training: It is used for PLC programming training due to its simplicity, ease of use and complete functions

Light industrial applications: such as small production lines or testing equipment, require compact controllers
