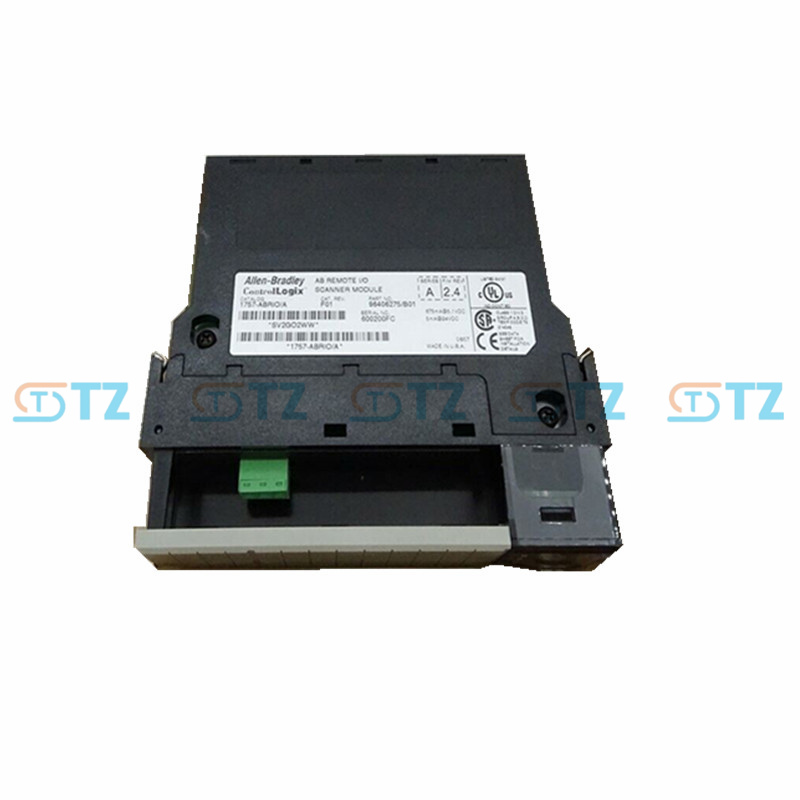

1757-ABRIO Allen Bradley Rockwell Process RIO Scanner Module

Product parameters

Type :RIO Adapter Module

Interface: Supports RIO scanners and can communicate with up to 32 RIO adapters

Communication protocol: Supports HART protocol, used for connecting HART devices

Power supply: 24 V DC power supply is provided by the ControlLogix chassis

Environmental protection grade :IP20

Temperature range :-20°C to +60°C

Number of connections: Up to 32 RIO adapters are supported

Compatibility: Compatible with ControlLogix series controllers and supports multiple RIO adapters

Functional characteristics

RIO Scanner Function :1757-ABRIO is a RIO adapter module used to enable communication between the RIO scanner and the ControlLogix controller. It supports RIO scanners, which can scan the data of remote I/O adapters and transfer the data to the ControlLogix controller.

HART device support: This module supports the HART protocol, allowing connection to HART devices (such as smart transmitters, actuators, etc.) to achieve communication with these devices. The HART protocol combines analog signals and digital communication, providing high precision and flexibility.

Scheduled connection updates :1757-ABRIO supports scheduled connection updates, which can send data from remote I/O adapters to the ControlLogix controller at regular intervals to ensure the real-time and accuracy of the data.

Flexible network configuration: This module supports multiple network configurations, including star, tree and ring, and is suitable for industrial networks of different scales and complexities. Users can perform network configuration and debugging through the RIO configuration software.

Integration and Expansion :1757-ABRIO can be integrated with other RIO adapters and ControlLogix controllers to achieve remote monitoring and data acquisition of devices. In addition, it can also conduct data access and control through the OPC client, enhancing the flexibility and scalability of the system.

Application scenarios

Industrial automation system :1757-ABRIO is widely used in industries such as manufacturing, packaging, food and beverage, oil and gas, water treatment, mining and power generation. It communicates with the ControlLogix controller via the RIO scanner to achieve data acquisition and control of the remote I/O adapter.

Remote monitoring and maintenance: This module supports remote monitoring and maintenance. Users can access and monitor the status and data of the remote I/O adapter through the RIO scanner. This function enables workshop managers, engineers or maintenance personnel to monitor and operate the system at any time and any place.

Data Acquisition and Analysis :1757-ABRIO supports multiple data acquisition and transmission methods, and can transfer data from remote I/O adapters in HART format to various software applications. In addition, it can also present real-time data in the form of graphics or tables, enhancing the readability and visualization effect of the data.

Building Automation and Process Control: This module is not only applicable to industrial automation systems but also can be used in the fields of building automation and process control.

Advantage Products:

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Many Available just wait for you, feel free to ask to get better deal!!!
