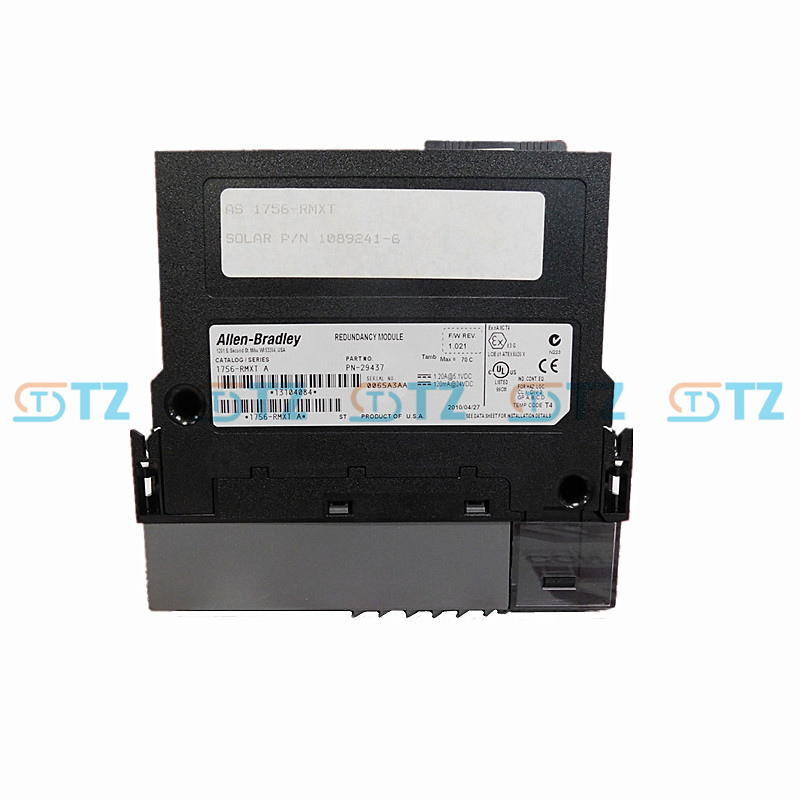

1756-RMXT Allen Bradley Rockwell Redundancy Module

Product parameters

Model :1756-RMXT

Platform :ControlLogix series

Communication protocols :EtherNet/IP, CIP, Modbus TCP/IP

Ethernet port :1 RJ45

Communication rate :10/100 Mbps

Supported connection count :128 CIP, 128 TCP/IP, 256 Logix

Power supply :24V DC (obtained from the controller)

Operating temperature :0°C to 55°C

Power consumption :5.1 W

Isolation voltage :30 V continuous voltage

Number of supported axes: Up to 128 CIP motion axes

Main functions

Industrial EtherNet communication: The 1756-RMXT is an EtherNet/IP communication module used to connect ControlLogix controllers with other devices (such as I/O modules, Hmis, SCADA systems, etc.) to achieve data exchange and control.

Redundancy support: This module supports dual-fault fault-tolerant device-level loop (DLR) network communication, ensuring that the backup port can seamlessly take over when the primary port fails, thereby enhancing network availability and reliability.

Support multiple protocols

EtherNet/IP: Used for real-time data transmission in industrial automation.

CIP (Common Industrial Protocol) : Supports secure data transmission and diagnostic information.

Modbus TCP/IP: Compatible with communication of third-party devices.

High-speed data transmission: Supports Ethernet communication rates of 10/100 Mbps, suitable for industrial applications that require high data throughput.

Remote configuration and diagnosis: Through SNMP and BOOTP-DHCP tools, remote configuration and network diagnosis are supported, which is convenient for maintenance and management.

Integrated motion control: The 1756-RMXT supports up to 128 CIP motion axes and is suitable for scenarios such as industrial robots and CNC machine tools that require precise motion control.

Application scenarios

Factory automation: It is used to connect controllers, I/O modules, Hmis and other devices on the production line to achieve centralized control and data sharing.

Robot control: Supports up to 128 CIP motion axes, suitable for scenarios such as industrial robots and CNC machine tools that require precise motion control.

Process control: Controllers used to connect process control systems, collect and analyze process data, and implement precise control strategies.

Data collection and remote monitoring: Through EtherNet/IP network, remote monitoring and data collection are achieved, facilitating maintenance and optimization of the production process.

SCADA system integration: Integrate with the SCADA system to achieve centralized monitoring and management of factory equipment.

Corrosive or extreme environments: The 1756-RMXT supports the ControlLogix-XT model and is suitable for harsh environments such as corrosiveness, salinity, humidity, and condensation.
