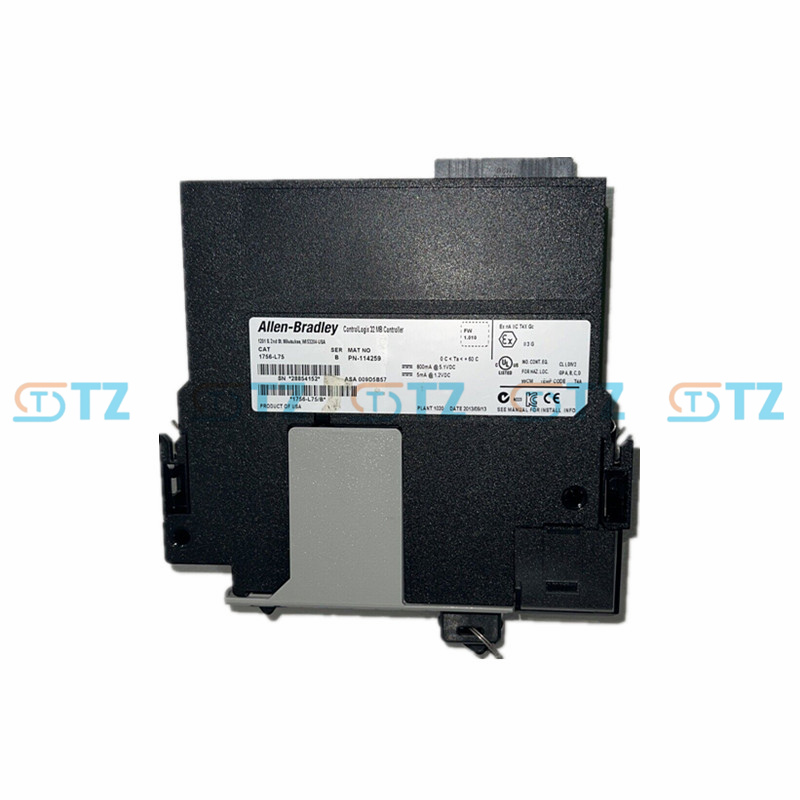

1756-L75 Allen Bradley Rockwell ControlLogix Controller

Product parameters

Processor type: 1756-L75 is a Logix processor in the ControlLogix series controllers, belonging to the 5570 controller series.

Memory capacity

User memory: 32 MB

I/O memory: 0.98 MB

Non-volatile storage: Supports 1 GB Secure Digital Card (SD1).

Power management: Adopt environmentally friendly solutions and use energy storage modules to store the contents of volatile memory instead of traditional batteries.

Power supply: 5 mA @ 1.2 V DC, 800 mA @ 5.1 V DC.

Tasks and Programs: Up to 32 controller tasks can be downloaded, each containing up to 100 programs, and all event triggers are supported.

I/O connection: Up to 128,000 digital I/ OS and 4,000 analog I/ OS can be connected.

Communication interface:

Embedded USB port, with a maximum transmission rate of up to 12 Mbps.

Support multiple communication protocols, including Ethernet /IP, SynchLink, ControlNet, Remote I/O, DeviceNet, Data Highway Plus, etc.

Redundant configuration: Suitable for simple or redundant controller configuration, it can be installed in any slot of the 1756 ControlLogix chassis.

Controller connection: Up to 500 controller connections can be processed.

Safety module: Equipped with three capacitor energy storage modules, two of which are detachable and one is non-detachable.

Certification: Passed multiple certifications including ATEX, CE, UL, China CCC, and Australia RCM.

Functional characteristics

High-performance processing capability: With 32 MB of user memory and 0.98 MB of I/O memory, it becomes one of the most powerful processors in the Logix 5570 controller series.

Flexible I/O configuration: Supports up to 128,000 digital I/O and 4,000 analog I/O, suitable for complex industrial automation systems.

Support for multiple communication protocols: Supports Ethernet /IP, SynchLink, ControlNet, DeviceNet, remote I/O and other communication protocols, facilitating integration with different devices.

Safety features: Equipped with an energy storage module, it ensures the retention of critical data even in the event of a power outage, enhancing system reliability.

Redundant configuration: Supports simple or redundant controller configuration, suitable for industrial environments with high requirements for system reliability.

Easy to program and configure: Provide a graphical programming environment (such as Studio 5000), facilitating users' configuration and debugging.

Application scenarios

Manufacturing process control: Applicable to the automation control in factory production lines, such as assembly lines, packaging lines, inspection systems, etc.

Motion control: It can be used to control motion equipment such as motors, servo motors, and robots, achieving precise position, speed, and acceleration control.

Process control: Applicable to industries such as chemical engineering, petroleum, and food processing, it is used to control process parameters such as temperature, pressure, and flow rate.

Data acquisition and monitoring system: Through I/O interfaces and communication modules, sensors and actuators can be integrated to achieve real-time monitoring and data acquisition of the production process.

Machine safety and reliability system: Through safety modules and redundant configurations, it ensures that critical equipment can still operate safely in case of failure or emergency.

Large-scale automation systems: Due to their powerful processing capabilities and flexible I/O configurations, they are suitable for large-scale industrial automation systems, such as smart factories and energy management systems.
