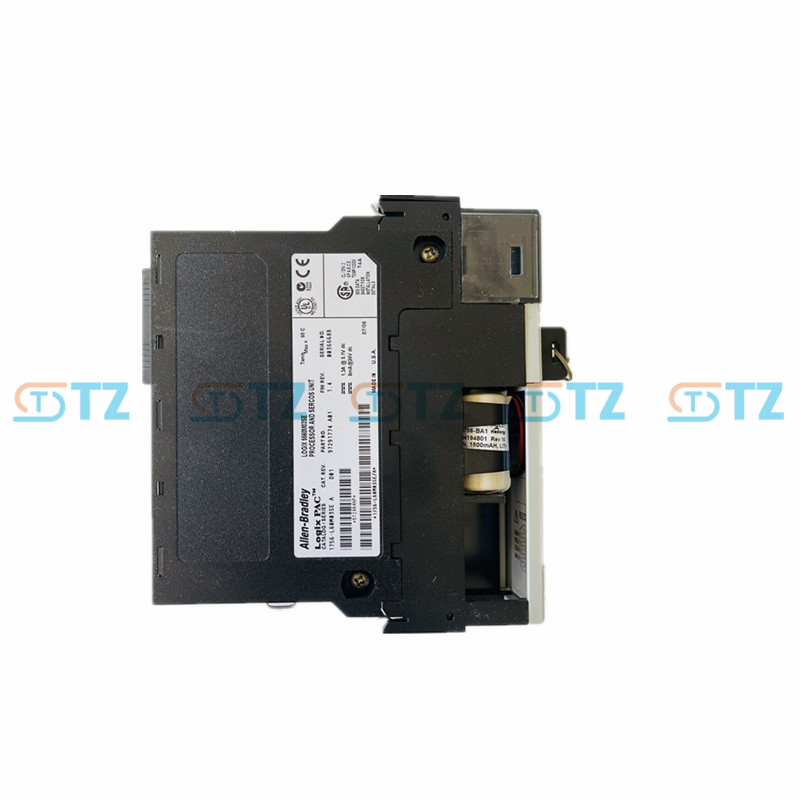

1756-L60M03SE Allen Bradley Rockwell Controller SERCOS Interface Motion Module

Product Parameters

Controller Type: ControlLogix Logix5560M03SE Controller with SERCOS (standard and motion control, no safety)

Memory:

User Memory: 750 KB

I/O Memory: 478 KB

Non-volatile Storage: Optional via 1756-M2 (2 MB memory expansion, not standard)

Task Support:

Maximum Tasks: 32 (standard tasks)

Programs per Task: Up to 100

Motion Control:

Maximum Motion Axes: 3 (via SERCOS interface)

Supports: Encoder input, LDT input, SSI input;      compatible with stepper motors and servo control via DeviceNet or analog AC drives (e.g., VFDs)

Communication Interfaces:

1 RS232 Serial Port (supports ASCII, DF1 full/half-duplex, DF1 radio modem, DH-485, Modbus via user-defined logic)

Supported Protocols: EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink

Controller Connections: Up to 250

Network Support:

SERCOS Interface: Integrated for motion control (3 axes)

Network Topologies: Varies by communication module (e.g., 1756-EN2T for EtherNet/IP, 1756-CNB for ControlNet)

I/O Support:

Local I/O: Depends on ControlLogix chassis

Distributed I/O: Via ControlNet, DeviceNet, or EtherNet/IP with compatible adapters

Compatible I/O: ControlLogix I/O, Flex I/O, Point I/O (with adapters)

Power:

Backplane Current: 1.2 A @ 5.1 V DC, 0.014 A @ 24 V DC

Power Dissipation: Approx. 5.6 W

Battery: 1756-BA1 (3.0 V lithium, 1800 mAh) or 1756-BA2

Installation:

ControlLogix Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17

Mounting: Chassis-based, requires removable terminal block (RTB) or 1492 interface module (IFM) for field wiring (not included)

Environmental Conditions:

Operating Temperature: 0°C to 60°C (32°F to 140°F)

Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Relative Humidity: 5% to 95% (non-condensing)

Vibration: 2 g @ 10–500 Hz

Shock: 30 g (operating), 50 g (non-operating)

Enclosure: Open-style (requires protective cabinet)

Certifications:

UL, CSA, CE, FM, ATEX (varies by series, check product label)

EMC: EN 50081-2, EN 50082-2

Functions

Integrated Motion Control:

Supports up to 3 motion axes via SERCOS interface, suitable for servo drives, stepper motors, and analog AC drives (e.g., VFDs).

Handles encoder, LDT, and SSI inputs for precise motion control .

Standard Control Processing:

Supports up to 32 tasks, each with up to 100 programs, for complex automation logic.

750 KB user memory and 478 KB I/O memory for mid-sized applications.

Communication Flexibility:

Integrated RS232 port supports ASCII, DF1, DH-485, and Modbus (via logic).

Supports multiple protocols (EtherNet/IP, ControlNet, DeviceNet, etc.) with add-on modules.

Up to 250 controller connections for distributed systems.

I/O and System Integration:

Compatible with ControlLogix chassis and I/O modules, as well as Flex I/O and Point I/O via adapters.

Producer/Consumer model allows data sharing among multiple ControlLogix controllers .

Programming and Configuration:

Programmed via RSLogix 5000 or Studio 5000 Logix Designer.

Supports LD, FBD, ST, and SFC per IEC-61131-3.

Diagnostics and Monitoring:

Integrated battery for memory retention.

Status indicators and fault reporting for system diagnostics.

Environmental Reliability:

Open-style design requires a protective cabinet for harsh environments.

Withstands vibration (2 g) and shock (30 g operating).
