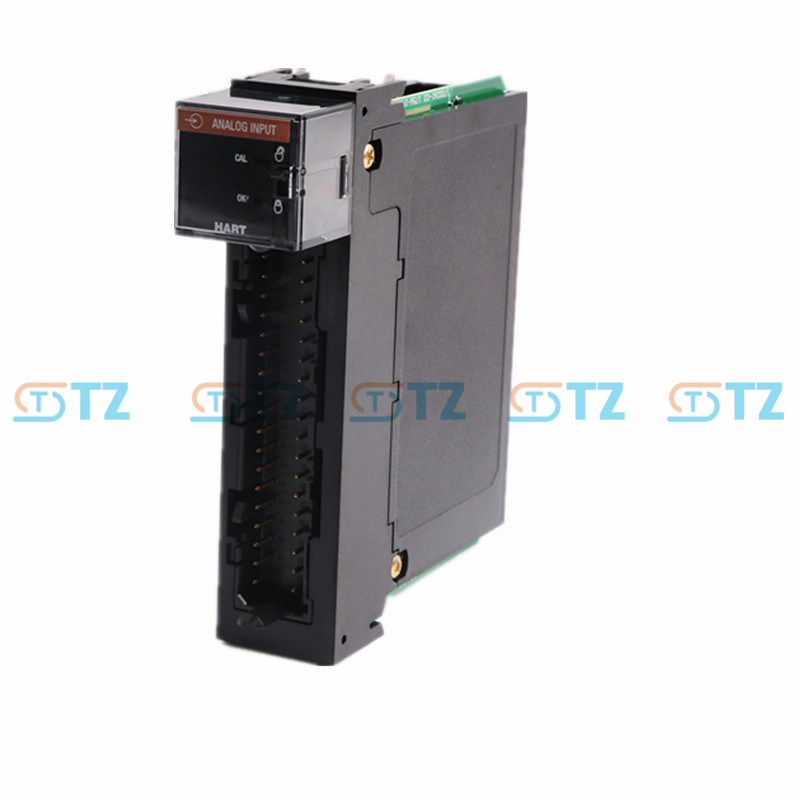

1756-IF16H Allen-Bradley ControlLogix Series Analog Input Module Hart

Product parameters

Model: 1756-IF16H

Module type: Analog Input Module (Supports HART protocol)

Number of input channels: 16 differential current inputs

Input signal range: 0-20 mA or 4-20 mA (HART devices typically use 4-20 mA)

Resolution: 16-21 bits (depending on filter Settings)

Transformation method: Successive Approximation

Data format: Integer mode (left-aligned, two's complement of 2)

IEEE 32-bit floating-point number

HART modem: One dedicated HART modem for each channel

Module input scanning time: 11-328 ms

HART scanning time: Approximately 1 second (when HART is enabled on all channels)

Backplane current: 5.1V DC: 200mA

24V DC: 125 mA

Total backplane power: 4.02W

Overvoltage protection: 8V DC

Isolation voltage: 50V (continuous)

Removable terminal blocks: 1756-TBCH (36 pins), 1756-TBS6H (36 pins)

Wire specifications: 0.33-2.1mm ² (22-14 AWG), solid or stranded shielded copper wire, insulation class 105°C (221°F), maximum insulation thickness 1.2mm

Calibration accuracy: Better than 0.13% of the range

Module error: 0.3% of the range

Operating temperature: 0°C to 60°C (32°F to 140°F)

Protection grade: Open enclosure

Certifications: CE, CSA, cULus, FM, ATEX

Compatible software: Studio 5000 Logix Designer

Function

High-precision data acquisition: 16-21 bit resolution ensures accurate signal conversion, suitable for temperature, pressure and other measurements.

HART protocol support: Each channel is equipped with an independent HART modem, supporting direct integration with HART devices, providing device diagnosis, configuration and real-time data.

Flexible data format: Supports three data formats to meet different application requirements.

Modular filter: Module-level filters can reduce the noise of the input signal, and the filtering frequency is adjustable.

Real-time Sampling (RTS): Configurable sampling frequency, the module periodically scans all channels and multicast data.

Over-range/under-range detection: When the detection signal exceeds the input range, it provides status indication.

Disconnection detection: Detect the signal line being disconnected or the terminal block being removed (in 4-20mA mode).

Digital filter: Each channel can be independently set with a digital filter to smooth out the noise of the input data.

Application scenarios

Process control: Applicable to industries such as petrochemicals, pharmaceuticals, and food and beverages, it is used to monitor analog signals such as pressure, flow, and liquid level.

Equipment diagnosis: Obtain equipment status and diagnostic information through the HART protocol to optimize maintenance and troubleshooting.

Industrial automation: Used in factory automated production lines, it integrates sensors and transmitters to ensure high-precision data acquisition.

Energy management: Applied in the power, water treatment, and oil and gas industries, it monitors key process parameters.

Environmental monitoring: Used in environmental control systems to collect analog signals such as temperature and humidity.
