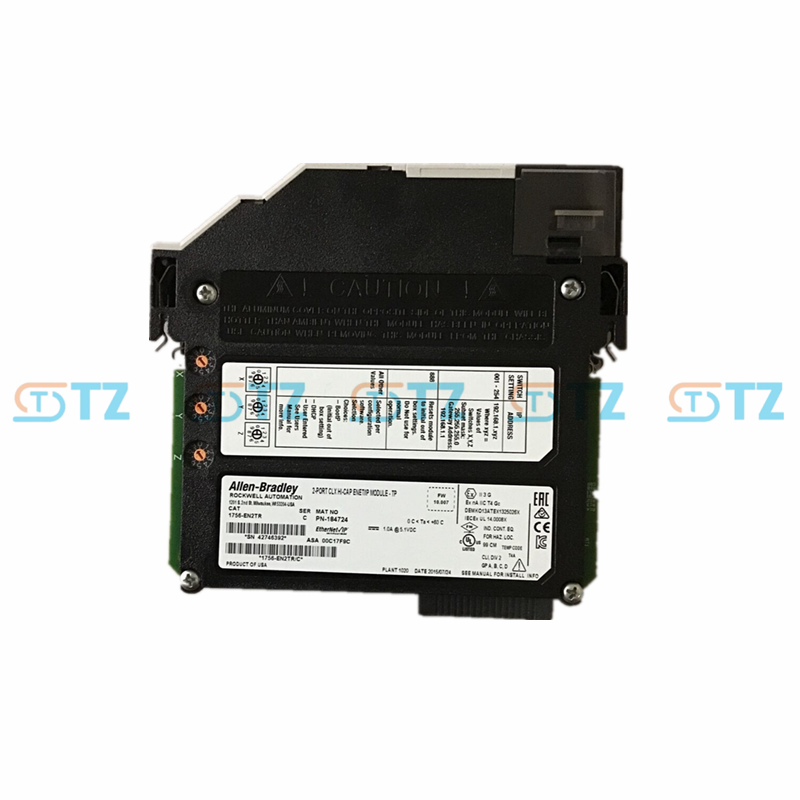

1756-EN2TR Allen Bradley Rockwell EtherNet/IP Ser B/C Communication Module

Product parameters

Model :1756-EN2TR

Platform :ControlLogix series

Communication protocols :EtherNet/IP, CIP, Modbus TCP/IP

Ethernet ports :2 RJ45 ports

Communication rate :10/100 Mbps

Supported connection count :256 CIP, 128 TCP/IP

Power supply :24V DC (obtained from the controller)

Operating temperature :0°C to 60°C (Some versions support -25°C to 70°C)

Power consumption :5.1 W

Protection grade :IP20

Supported axes: Up to 8 axes (integrated motion control)

Main functions

Industrial EtherNet communication :1756-EN2TR is an EtherNet/IP communication module used to connect ControlLogix controllers with other devices (such as I/O modules, Hmis, SCADA systems, etc.) to achieve data exchange and control.

Dual-port redundant design: This module features two independent Ethernet ports, supporting dual-fault Tolerant device level loop (DLR) network communication. This ensures that when the primary port fails, the backup port can seamlessly take over, enhancing network availability and reliability.

Support multiple protocols

EtherNet/IP: Used for real-time data transmission in industrial automation.

CIP (Common Industrial Protocol) : Supports secure data transmission and diagnostic information.

Modbus TCP/IP: Compatible with communication of third-party devices.

High-speed data transmission: Supports Ethernet communication rates of 10/100 Mbps, suitable for industrial applications that require high data throughput.

Integrated motion control: The 1756-EN2TR supports up to 8-axis integrated motion control and is suitable for scenarios such as robots and CNC machine tools that require precise motion control.

Remote configuration and diagnosis: Through SNMP and BOOTP-DHCP tools, remote configuration and network diagnosis are supported, which is convenient for maintenance and management.

Application scenarios

Factory automation: It is used to connect controllers, I/O modules, Hmis and other devices on the production line to achieve centralized control and data sharing.

Robot control: Supports up to 8-axis integrated motion control, suitable for scenarios such as industrial robots and CNC machine tools that require precise motion control.

Process control: Controllers used to connect process control systems, collect and analyze process data, and implement precise control strategies.

Data collection and remote monitoring: Through EtherNet/IP network, remote monitoring and data collection are achieved, facilitating maintenance and optimization of the production process.

SCADA system integration: Integrate with the SCADA system to achieve centralized monitoring and management of factory equipment.

Corrosive or extreme environments :1756-EN2TRXT (ControlLogix-XT model) enhanced protection, suitable for harsh environments such as corrosiveness, salinity, humidity, and condensation.

Advantage Products:

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Many Available just wait for you, feel free to ask to get better deal!!!
