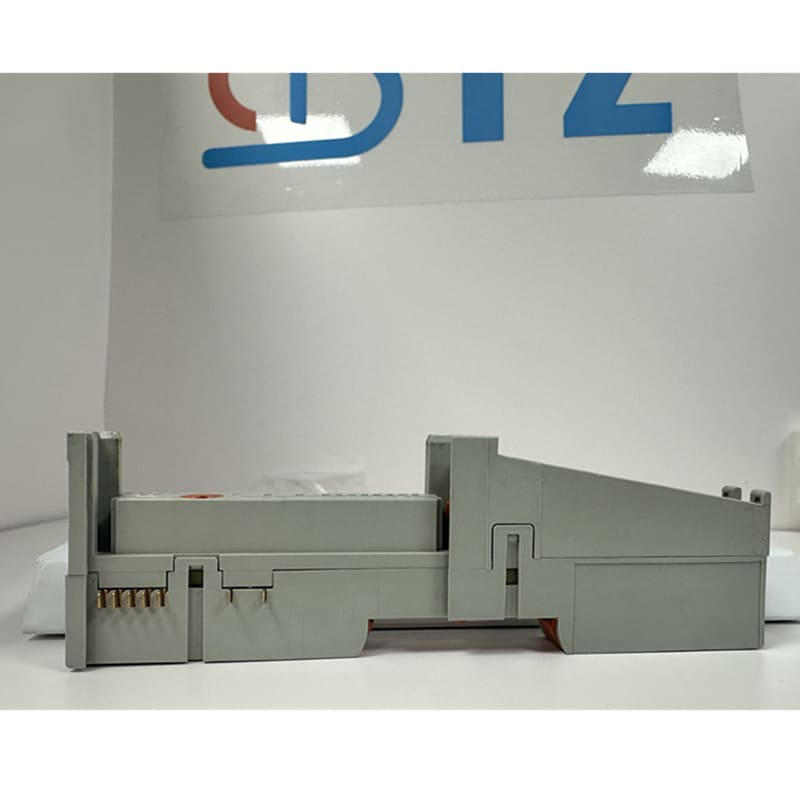

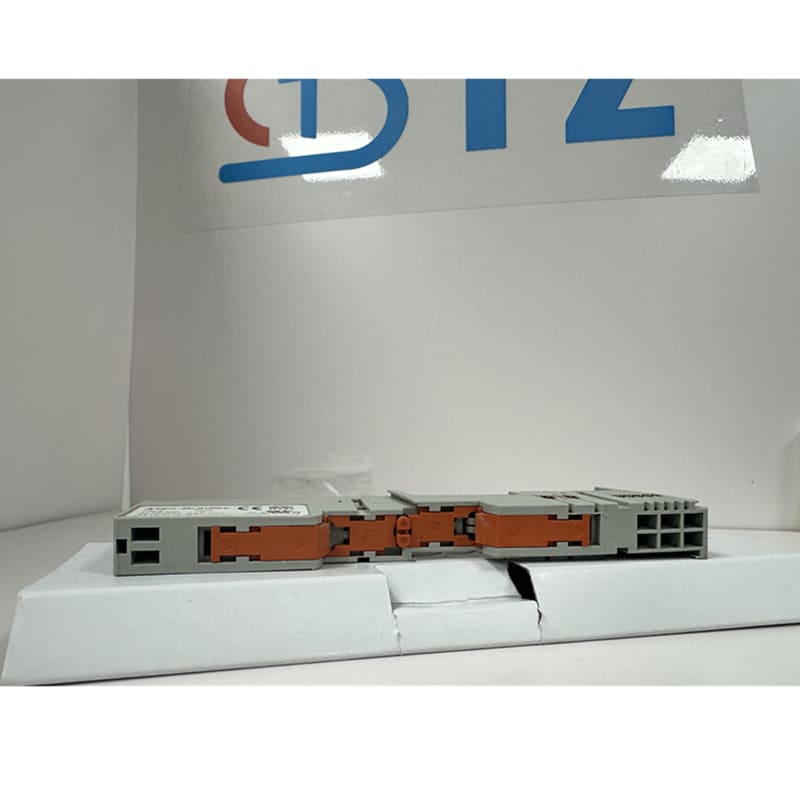

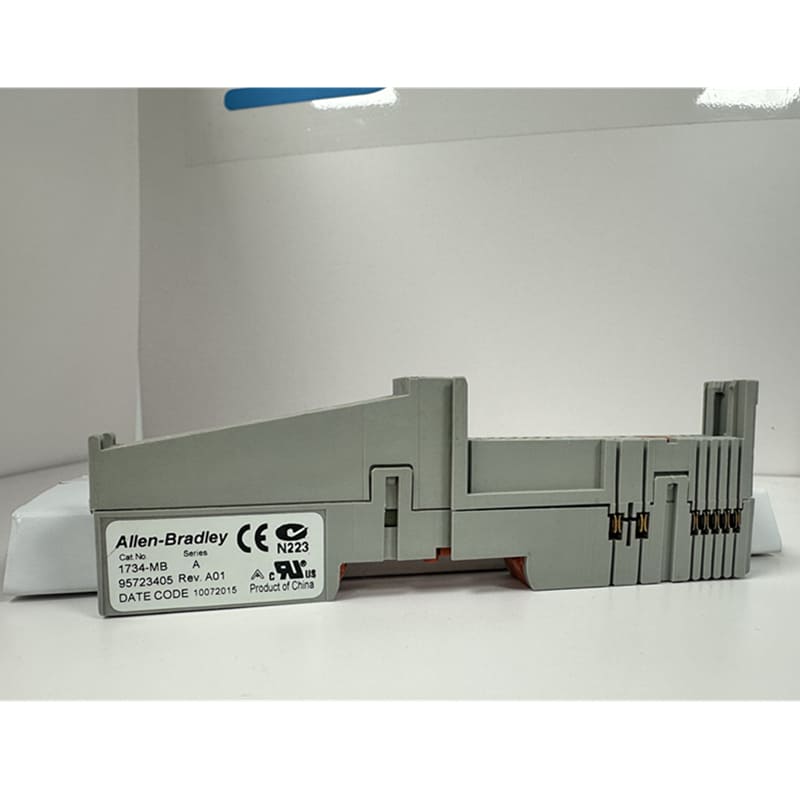

1734-MB Allen-Bradley Point I/O Mounting Base
1734-MB is a mounting base for the POINT I/O system manufactured by Allen-Bradley.
HS CODE : 8538909200
Product No :
1734-MB 1734MBManufacture :
Allen BradleySize (cm) :
2.5 * 12 * 5Weight (kg) :
0.1Origin :
USAWarranty :
12 MonthLead Time :
Ready StockDescription :
Mounting BaseProduct parameters
Module type: POINT I/O module Mounting Base
Function: Provide installation points for POINT I/O modules, adapters or power modules, and support backplane communication (POINTBus) and on-site power distribution
Terminal block: 8-point detachable terminal block (compatible with 1734-RTB, 1734-RTBS)
Power support:
Backplane power supply: Via POINTBus (usually provided by 1734-ADN or 1734-FPD, 24V DC nominal)
On-site power supply: Supports 12/24V DC or 120/240V AC (distributed through modules such as 1734-FPD)
Conductor size: 0.34... 2.1 mm² (22...) 14 AWG
Current capacity: Maximum 10 A (On-site power distribution, depending on module configuration)
Installation method: DIN rail installation (conforming to EN 50022, 35mm DIN rail)
Operating temperature: -20°C to 55°C (-4°F to 131°F)
Storage temperature: -40°C to 85°C (-40°F to 185°F)
Humidity: 5% to 95% (non-condensing)
Enclosure type: Open type (Recommended for installation in a cabinet with IP54 or higher protection level)
Certification: UL, cULus, CE, C-Tick, in compliance with industrial standards
UPC/GTIN: 10612598206855 (Series B)
Installation method: DIN rail installation, side by side with other POINT I/O modules. Backplane communication is achieved between the modules through sliding connectors
Function
Module installation: Provide physical mounting points for POINT I/O modules (such as 1734-IE2C), adapters (such as 1734-ADN), or power modules (such as 1734-FPD).
Backplane communication: Through the POINTBus backplane connection module, ensure the transmission of data between modules (such as I/O data to 1734-ADN).
On-site power distribution: On-site power is distributed through the 8-point detachable terminal block (RTB), supporting 12/24V DC or 120/240V AC.
Safety fixation: Through DIN rails and module locking screws, it provides firm module fixation and reliable electrical connection.
Modular design: Supports the flexible expansion of the POINT I/O system and allows for the rapid addition or replacement of modules.
Easy to maintain: The detachable terminal blocks (1734-RTB/RTBS) facilitate wiring and module replacement.
Application scenarios
Distributed I/O system: In the manufacturing industry, in conjunction with 1734-ADN and 1734-IE2C, a distributed I/O network is constructed to collect sensor data.
Production line automation: In automotive manufacturing, packaging or material handling, providing installation and power distribution for I/O modules (such as 1734-IE2C).
Process control: In water treatment or food processing, it works in conjunction with 1734-FPD to provide an independent power supply for analog input modules (such as 1734-IE2C).
Device monitoring: Integrated with XM modules (such as 1440-VST02-01RA) through the DeviceNet network to monitor device status.
PLC and driver integration: Collaborate with ControlLogix (such as 1756-L65) or PowerFlex drivers (such as those equipped with 20-750-DENC-1) through the DeviceNet network to manage I/O and motor control.
