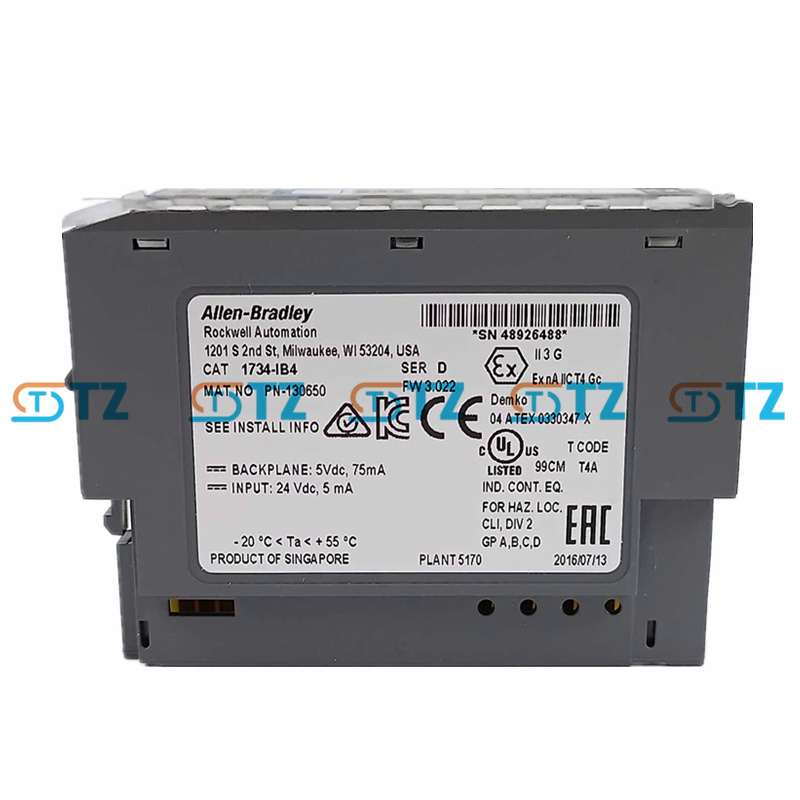

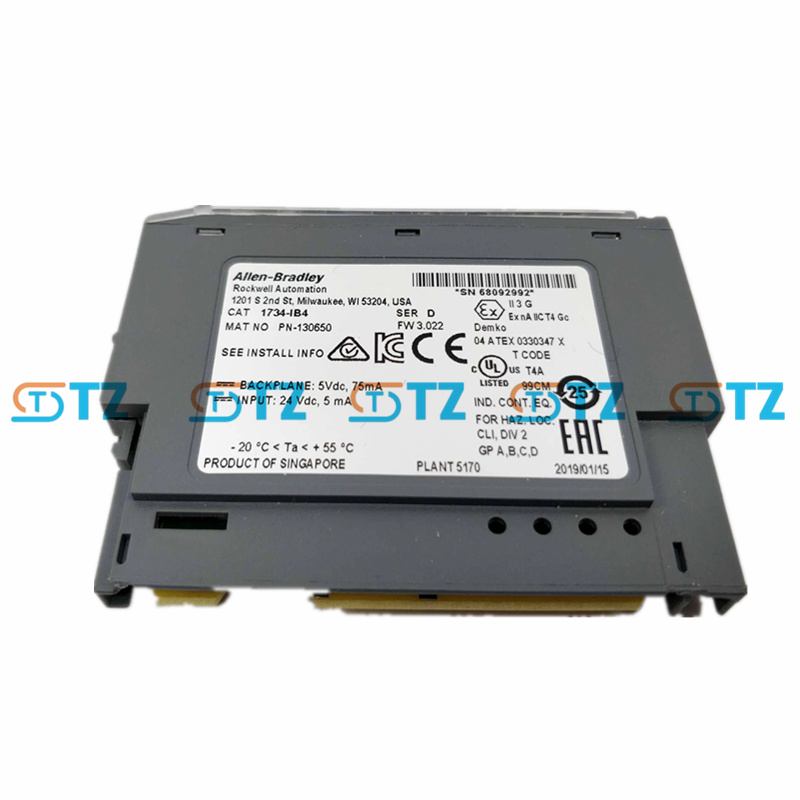

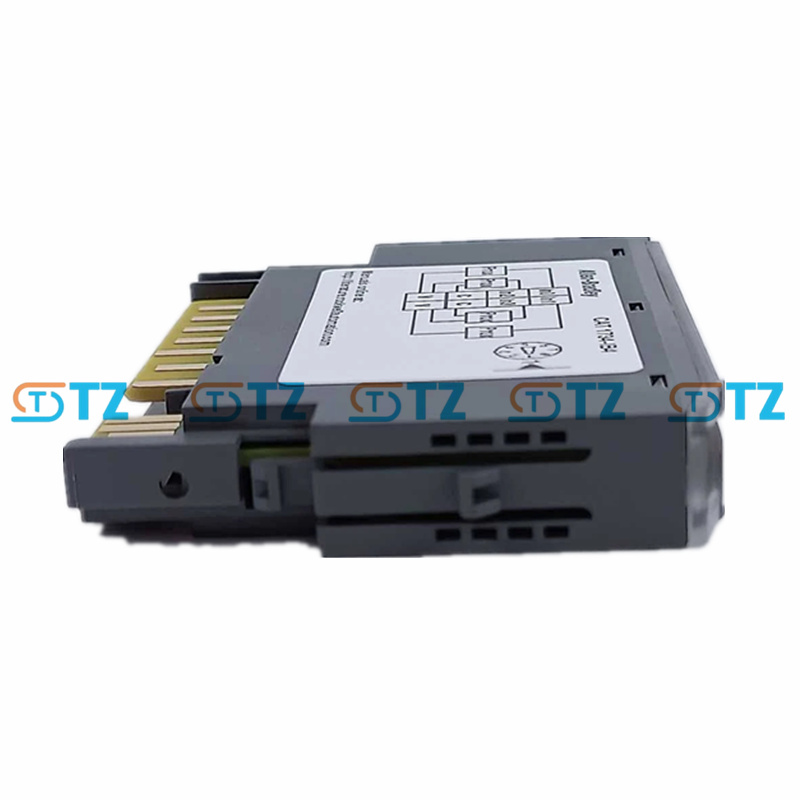

1734-IB4 Allen Bradley Rockwell CompactLogix 5370 Sink I/O Module

Product parameters

Module type: POINT I/O Digital DC (DC) Input module

Number of input channels: 4 Sinking input channels

Input voltage range:

Minimum conduction voltage: 10V DC

Nominal conduction voltage: 24V DC

Maximum conduction voltage: 28.8V DC

Input current:

Minimum conduction current: 2 mA

Nominal conduction current: 4 mA

Maximum conduction current: 5 mA

Off status:

Maximum cut-off voltage: 5V DC

Minimum turn-off current: 1.5 mA

Input impedance:

Nominal impedance: 3.6 kΩ

Maximum impedance: 4.7k Ω

Power supply:

On-site power supply voltage range: 10-28.8V DC

Maximum POINTBus current: 75 mA @ 5V DC

Power consumption:

Power dissipation: 1 W

Heat dissipation: 3.4 BTU/hr

Isolation voltage: 50V (continuous), test voltage is 2500V DC, lasting for 60 seconds

Response time: 0.5 milliseconds (fixed hardware input filtering)

Installation method: DIN rail installation (It is recommended to use galvanized yellow chromium steel rail)

Wiring method: Detachable terminal block (RTB

Operating temperature range: -20°C to 55°C (-4°F to 131°F)

Status indication: 4 yellow input status indicator lights

Protection grade: Open type (no enclosure, IP20)

Certification standards: C-TICK, CCC, CE, CUL, KC, MARINE, UL

Function

Digital input processing

Four 24V DC sinking input channels are provided for receiving signals from sensors, switches or other digital devices.

Support high-precision signal processing to ensure reliable input detection.

Modular design

It belongs to the POINT I/O series and can be used in conjunction with any POINT I/O communication adapter and POINTBlock I/O module to flexibly implement the distributed I/O architecture.

Simplify wiring and maintenance through detachable terminal blocks (RTB).

Compact and efficient

Compact in size, it is suitable for applications where the space inside the control cabinet is limited.

Low-power design (1 W) reduces energy consumption.

Status monitoring: Each input channel is equipped with a yellow status indicator light, facilitating real-time monitoring of the input signal status.

Compatibility: Supports compatibility with communication adapters such as DeviceNet and ProfiBus, and is suitable for various industrial network environments.

Application scenarios

Industrial automation: It is used in programmable logic controller (PLC) systems to receive digital signals from limit switches, proximity sensors, buttons and other devices, and is widely applied in production line control.

Manufacturing industry: In industries such as automotive manufacturing, food and beverage processing, and packaging machinery, it is used to monitor the status of equipment or trigger signals on the production line.

Process control: Applicable to scenarios that require precise monitoring and control, such as the chemical, pharmaceutical or water treatment industries, it processes sensor inputs to ensure process stability.

Distributed I/O system: In large factories that require distributed control, combined with POINT I/O communication adapters, it reduces wiring costs and enhances system flexibility.

Space-constrained environments: Due to its compact design, it is suitable for installation on small control cabinets or DIN rails close to on-site equipment.
