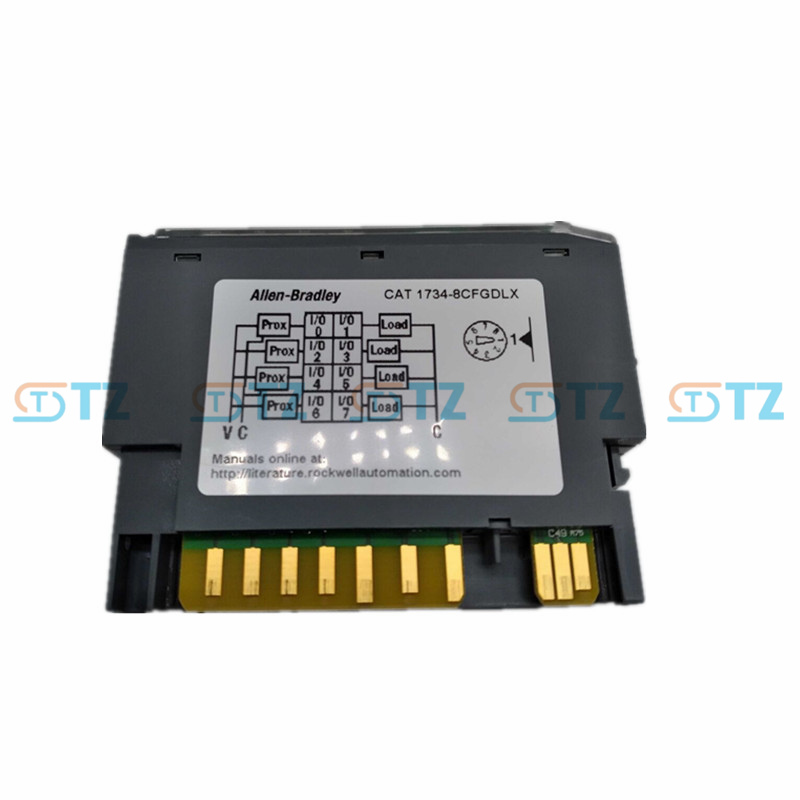

1734-8CFGDLX Allen Bradley Rockwell CompactLogix 5370 I/O Module

Technical parameters

Model :1734-8CFGDLX

Type :POINT I/O configurable input/Output Module

Interface type :24V DC

Number of input/output points :8

Input/output type: Self-configuration (DC input/output)

Voltage range :10V DC to 28.8V DC

Output voltage :24V DC

POINTBus current :100 mA @ 5V DC

Maximum power consumption :2.6 W @ 28.8V DC

Maximum heat dissipation :8.9 BTU/hr @ 28.8V DC

Installation method :1734-TB / 1734-TBS / 1734-TOP / 1734-TOPS

Protection grade :IP67

Communication protocols :EtherNet/IP, DeviceNet

Supported functions :DeviceLogix, automatic addressing, automatic baud rate, plug and unplug while powered on

Product characteristics

8 self-configurable 24V DC input/output points: It provides 8 independent input/output points, each of which can be configured as DC input or DC output, suitable for a variety of industrial automation scenarios.

DeviceLogix function: This module integrates the DeviceLogix function, supporting automatic addressing, automatic baud rate, and plugging and unplugging in the powered state, meeting the requirements of the POINTBus™ backplane and enhancing the flexibility and reliability of the system.

Voltage range: The input voltage range is from 10V DC to 28.8V DC, and the output voltage is 24V DC. It is suitable for various industrial environments.

Current consumption: The POINTBus current of this module is 100 mA @ 5V DC, the maximum power consumption is 2.6 W @ 28.8V DC, and the maximum heat dissipation is 8.9 BTU/hr @ 28.8V DC.

Installation method: It can be used in conjunction with 1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS terminal base units. During installation, it is necessary to ensure that the module is correctly aligned with the rack and inserted into the fixed position.

Environmental adaptability: This module features an IP67 protection rating. The sealed housing requires no additional protection and is suitable for harsh industrial environments.

Compatibility :1734-8CFGDLX is usually used in conjunction with CompactLogix 5560 series PLCS and supports industrial communication protocols such as EtherNet/IP and DeviceNet.

Application scenarios

Industrial automation system: Applicable to industrial automation systems, especially the CompactLogix 5560 series PLC, it provides 8 self-configurable 24V DC input/output points and supports the DeviceLogix function to enhance the flexibility and intelligence level of the system.

Remote monitoring and diagnosis: Through the POINT I/O system, 1734-8CFGDLX can achieve remote monitoring and diagnosis of the PLC, improving the maintainability and response speed of the system.

Data acquisition and control: This module can be used in data acquisition systems to achieve real-time data reading and control of PLCS, support engineering unit setting, and facilitate users' data processing and analysis.

Safety and Diagnosis: It provides channel-level diagnosis and alarm functions, which help to promptly detect equipment failures and carry out maintenance.
