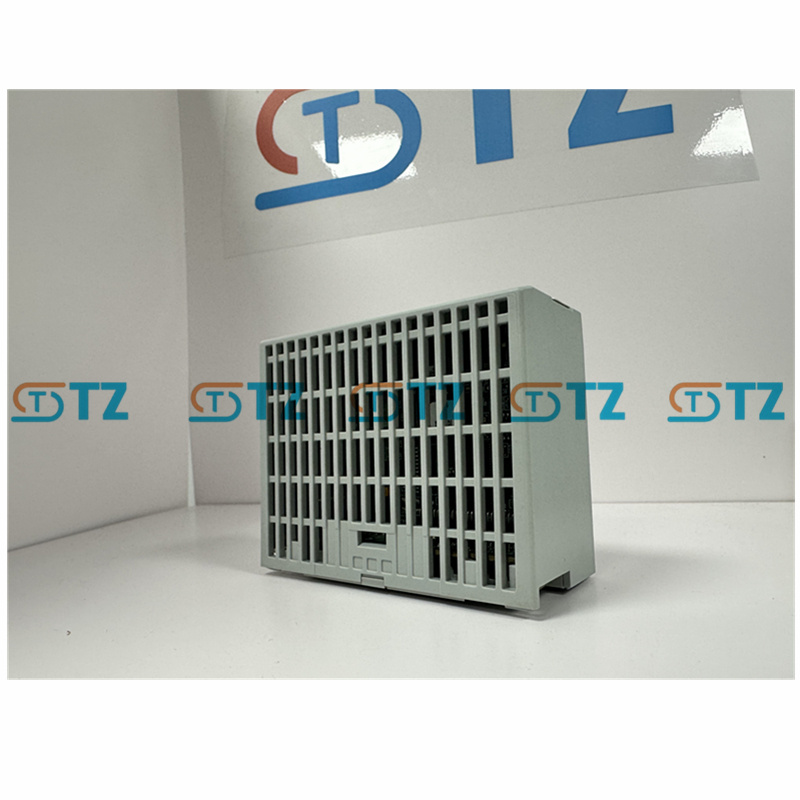

1440-TPS02-01RB Allen Bradley Rockwell ControlLogix Controller

Product parameters

Manufacturer: Allen-Bradley (Rockwell Automation)

Product Model: 1440-TPS02-01RB

Component Description: XM-320 Position and Process Measurement Module

Input channels: 2 channels

Signal types: Eddy current sensor signal, LVDT

Network interface: DeviceNet (125, 250, 500 kbit/s)

Output: 2 4-20mA analog outputs, 1 relay (DPDT control output, expandable +4 relays)

Power supply voltage: 18-32 V DC (nominal 24 V DC)

Power consumption: Maximum 7W

Operating temperature: 0°C to 65°C

Humidity: 5% to 95% (non-condensing)

Protection grade: IP20

Certifications: CE, cULus, ATEX and other industrial standards

Compatibility: It needs to be used with the terminal base 1440-TB-B and supports the RS-232 serial interface

Firmware version: V5.009 (Final version)

Function

The 1440-TPS02-01RB offers 2-channel inputs for precisely measuring parameters such as axial position, valve position, and expansion, and supports eddy current and LVDT signal processing. When powered on, the module performs a self-check program and displays its status through the LED indicator light (green/red flashing). A stable green or flashing green indicates normal operation. It provides two 4-20mA analog outputs for process control and one DPDT relay for alarm or control (expandable). The DeviceNet network supports real-time data transmission and RS-232 serial configuration, and is compatible with XM serial configuration tools and Emonitor software to achieve parameter setting and status monitoring. The module supports overspeed detection, reverse rotation detection and locked rotor detection, and features hot-swapping functionality. It optimizes energy consumption and anti-electromagnetic interference capabilities, making it suitable for high-density installation and ensuring load balancing and real-time data collection.

Application scenarios

This module is widely used for monitoring rotating equipment, such as shaft displacement, vibration and expansion monitoring of turbines, compressors, pumps and generator sets, and is suitable for predictive maintenance and safety protection in petrochemicals, power generation and heavy industry. Integrated into the XM series systems, it supports distributed control systems (DCS) and PLC environments, providing real-time alerts and data analysis. It is particularly suitable for high-temperature, high-noise or critical infrastructure scenarios, such as turbine monitoring instruments (TSI), helping to avoid downtime caused by equipment failures and maintain high performance and reliability. As production has been halted, spare parts for the existing system need to be maintained or migrated to a new solution.
