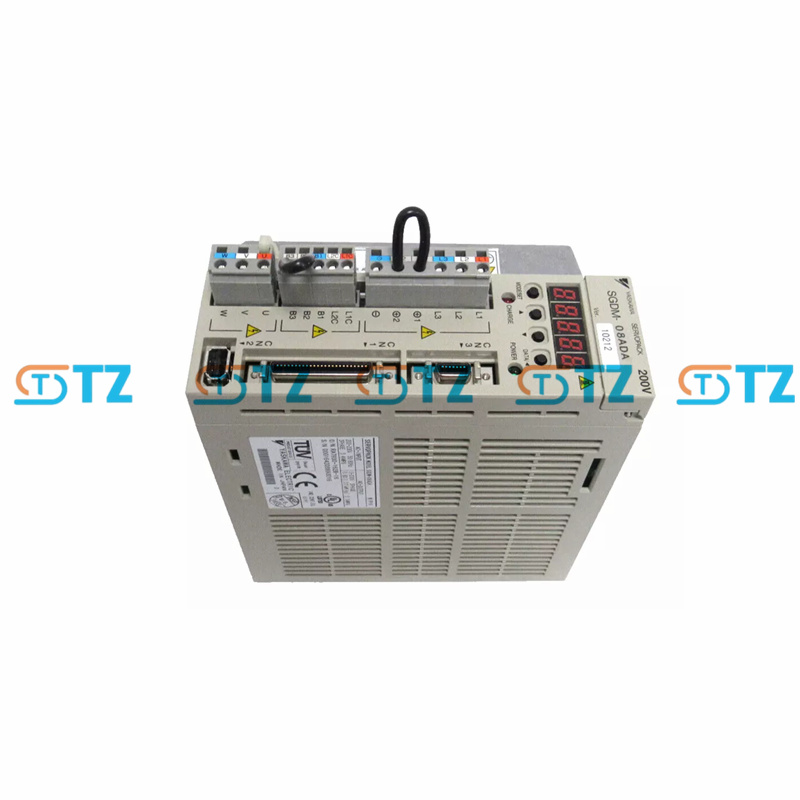

YASKAWA SGDM-08ADA SERVO AMPLIFIER SIGMA II SERIES

Product parameters

Rated output power: 750 W (0.75 kW, 1.0 HP)

Input power supply: Single-phase/three-phase, 200-230 V AC, 50/60 Hz

Input current: 8 A (single-phase) / 4.7 A (three-phase)

Output power supply: Three-phase, 0-230 V AC, 0-300 Hz

Continuous output current: 5.5A

Control mode: Torque, speed, position control (through analog voltage/pulse sequence)

Encoder support: Incremental encoder (supports 17-bit encoders of the SGMGH series, 32,768 pulses per revolution)

Communication interface: Analog Voltage/Pulse Sequence (Standard) MECHATROLINK-II (Optional, firmware version confirmation required)

Input/Output: Analog input: Speed/torque control (-10 to +10 Vdc) Digital input: Prohibition of forward/reverse operation (P-OT/N-OT), torque limit (/P-CL, /N-CL), general input (/SI0 to /SI6), etc Digital output: Positioning completion (/COIN), consistent speed (/V-CMP), alarm (ALO1-3), etc

Protection grade: IP10 (Open structure, needs to be installed in the control cabinet)

Environmental conditions: Operating temperature: 0 to +55°C Storage temperature: -20 to +85°C

Humidity: Below 90% RH (no condensation)

Cooling method: Natural cooling (no fan required)

Regenerative braking: No built-in regenerative resistor, an external resistor is required

Compatible motor: SGM series

Safety standards: Comply with UL, cUL and CE

Other functions: Online automatic tuning, vibration suppression, model tracking control, JOG operation, origin search, alarm history record, direct parameter input

Function

High-performance control: By adopting model tracking and vibration suppression algorithms, the positioning time is shortened, the motor speed fluctuation is reduced, and high precision, high speed and smooth operation are provided.

Online automatic tuning: No need to manually adjust the servo gain. It automatically identifies the motor capacity and type, simplifying the setup process.

Multi-functional control: Supports torque, speed and position control, compatible with analog voltage/pulse sequence and MECHATROLINK-II protocol, suitable for various control architectures.

Vibration suppression: Enhanced vibration suppression function reduces mechanical vibration and improves positioning accuracy, suitable for CNC machine tools and robot applications.

Compatibility: Supports SGM series motors and automatically sets motor parameters through serial encoders.

Diagnosis and Maintenance: Built-in alarm display, JOG operation, and origin search functions facilitate fault detection and system maintenance.

Compact design: Small volume design, suitable for installation in control cabinets with limited space.

Application scenarios

CNC machine tools: Drive motors such as SGMGH-09ACA21, used in milling machines and lathes, supporting high-precision processing and complex trajectories.

Packaging equipment: Used in high-speed packaging lines (such as labeling machines, sealing machines), meeting the requirements of rapid circulation and high precision.

Robots: Drive the joints of small robots (such as handling and assembly robots) to provide high dynamic response.

Material handling: Used in conveyor belts and sorting systems to provide stable power.

Automated production line: Supports highly repetitive tasks in the assembly of electronic components or the production of automotive parts.

Woodworking machinery: Drives CNC woodworking machines (such as engraving machines), providing precise motion control.
