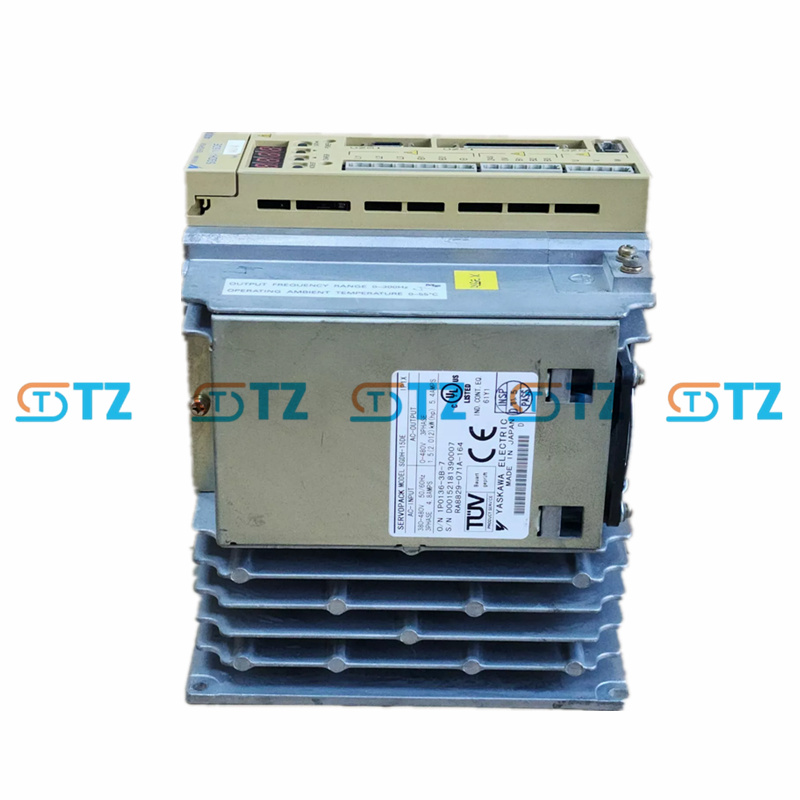

YASKAWA SGDH-15DE AC SERVO MOTOR SIGMA-V SERIES

Product Parameters

Model: SGDH-15DE

Series: Sigma-II SGDH

Rated Output Power: 1.5 kW (1500 W)

Input Power:

Three-phase AC: 380-480 VAC, 50/60 Hz

Voltage Range: 323-528 VAC (+10%/-15%, inferred from standard 400 V systems)

Input Current: ~4.8-5.4 A

Output:

Rated Output Current: 5.4 A

Peak Output Current: ~16.2 A

Output Voltage: 0-480 VAC

Output Frequency: 0-300 Hz

Control Method:

Torque, speed, or position control

Supports single-axis control or networked control

Programmable positioning (up to 256 points via program table)

Encoder Feedback:

Supports 13-bit incremental or 17-bit absolute serial encoders (automatic recognition)

Compatible with Sigma-II motors (e.g., SGMAH, SGMPH, SGMGH)

I/O:

Inputs: 19 points

Outputs: 16 points

Frequency Response: ~400-600 Hz (typical for Sigma-II, lower than Sigma-V’s 1.6 kHz)

Speed Control Range: 1:5000 (inferred from Sigma-II capabilities)

Environmental Conditions:

Operating Temperature: 0°C to +55°C

Storage Temperature: -20°C to +85°C

Humidity: 20% to 80% (non-condensing)

Protection Rating: IP10 (indoor, controlled environment)

Communication:

Built-in serial port (RS-422) for setup/monitoring

Optional network modules: MECHATROLINK, DeviceNet, PROFIBUS-DP, INDEXER

Digital Operator: Built-in keypad for parameter setting and diagnostics

Safety & Certifications: UL 508C, EN 50178, EN 55011 (Group 1, Class A), EN 61800-3 (inferred from Sigma-II standards)

Cooling: Natural cooling

Other:

Supports external regenerative resistor SigmaWin/SigmaWin+ software for torque/speed/command reference capture and FFT analysis JOG speed table, origin reversion, programmable signal output

Functions

Flexible Control Modes: Configurable for torque, speed, or position control via parameters. Supports up to 256 programmable positioning points using a program table.

High-Precision Positioning: Serial encoder technology (13-bit incremental or 17-bit absolute) for automatic motor recognition. High-speed, high-precision positioning with V-series motors.

Network Integration: Optional modules (JUSP-NS300, JUSP-NS500, JUSP-NS600) enable MECHATROLINK, DeviceNet, PROFIBUS-DP, or

INDEXER control.

I/O: 19 inputs, 16 outputs for flexible host controller integration.

Tuning and Vibration Suppression: Advanced algorithms for high-performance tuning and machine resonance suppression. SigmaWin+ supports FFT and machine simulation for optimization.

Ease of Use: Built-in keypad and serial port (RS-422) for setup/monitoring. SigmaWin/SigmaWin+ software for parameter adjustment, command reference capture, and diagnostics.

Safety Features: Overcurrent, overvoltage, and short-circuit protection. Alarm history for troubleshooting.

Motion Control: JOG speed table, external positioning, and origin reversion for versatile operation. No external motion controller required for basic motion tasks.

Compatibility: Optimized for Sigma-II motors (SGMAH, SGMPH, SGMGH, SGMSH, SGMDH, SGMUH). Supports digital operator, I/O signal cables, and analog monitor cables.

Applications

Robotics: Single-axis or networked joint control for industrial robots.

CNC Machines: Positioning and speed control for milling, turning, and grinding.

Packaging Machines: Precise motion for sealing, labeling, and cartoning.

Material Handling: Conveyors and stackers requiring accurate speed control.

Textile Machinery: High-speed looms with vibration suppression.

Semiconductor Equipment: Wafer handling and chip encapsulation.

General Automation: Assembly lines and mobile applications in aerospace/defense.
